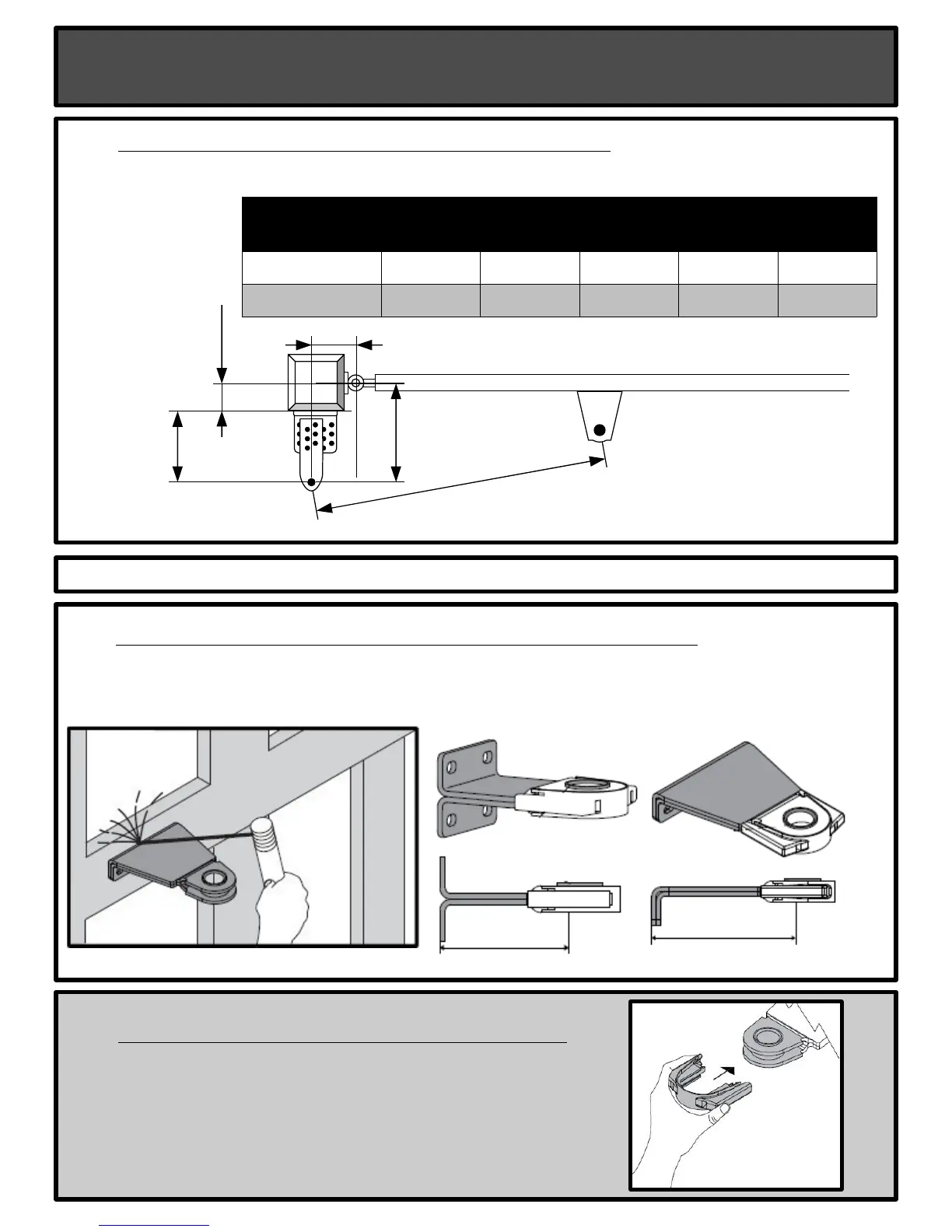

BFT PHOBOS N BT Installer's Reference Guide

3-7/8”
Phobos N BT gate bracket
5-3/8”
Phobos N L BT gate bracket
1)
DETERMINE THE PROPER GEOMETRY FOR YOUR INSTALLATION. You can use the table below to
write down your dimensions.
3)
BOLT AND/OR WELD THE GATE BRACKET ACCORDING TO YOUR GEOMETRY. Remember to
measure the distance to C with a fully closed gate.
WELD OR BOLT
4)
INSTALL THE MAGNET HOLDER OVER THE GATE BRACKET. Do
not install before or right after welding. Wait for bracket to cool down. Do
not try to operate the actuators without the magnet holder in place.
2)
BOLT AND/OR WELD THE POST BRACKET ACCORDING TO YOUR GEOMETRY.
SIDE A B C ARB
RIGHT LEAF
LEFT LEAF
HINGE
OFFSET
MY GEOMETRY
INSTALLING THE MOUNTING BRACKETS 7
C
OFFSET
ARB
A
B
