Biamp PMA 2000-DM - Bar Attachment

PMA 2000-DM Installation Guide page 7
Pin
Hardware
• M3 Screws x2
From Parlé bar
table stand or plate
removal
M3 Screws

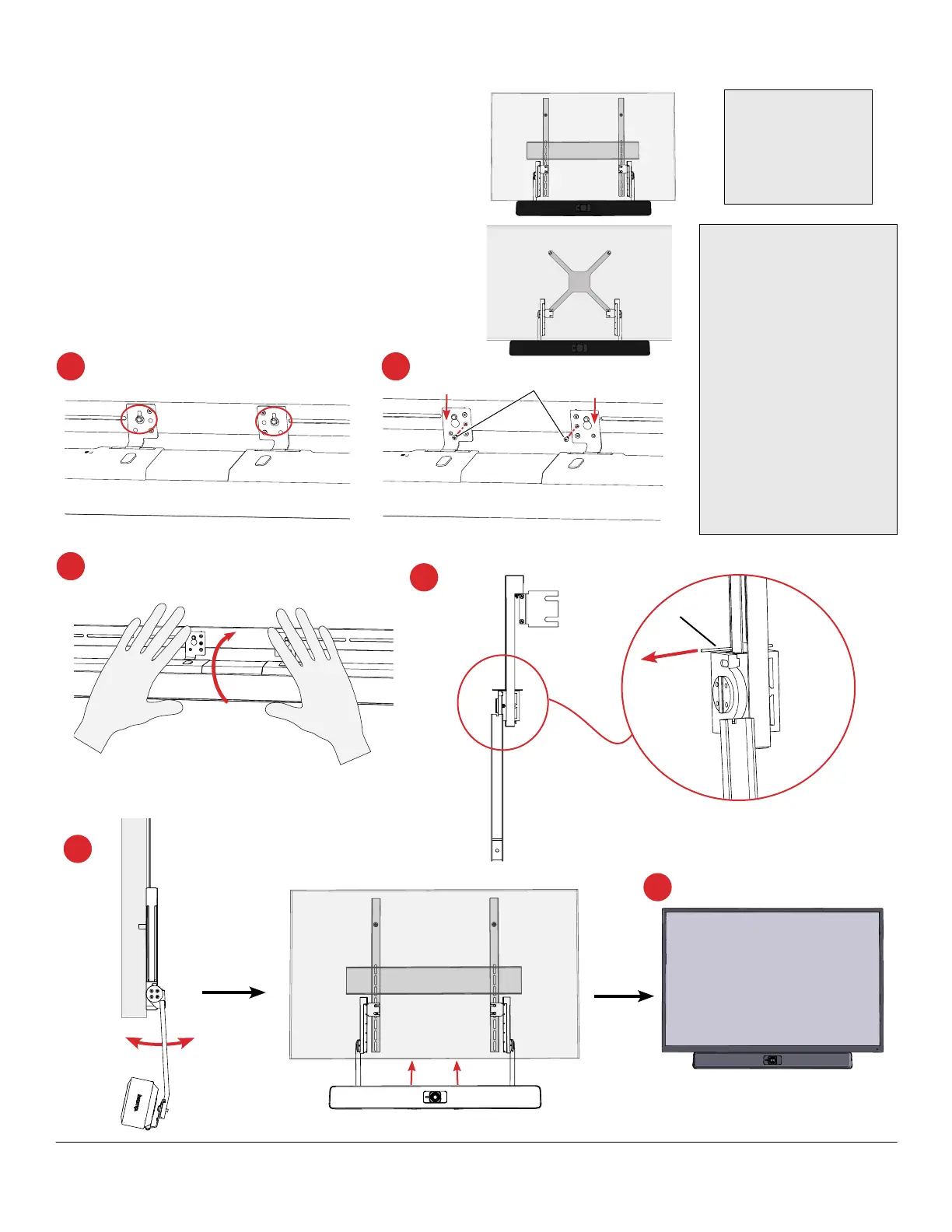

Bar Attachment to PMA 2000-DM
1. Fold the hinge brackets up and hang the bar on the
crossbar knobs.
2. Secure with an M3 screw on each bracket (circled).
3. Rotate the bar back up. See adjustment notes at right.
4. Remove the pins holding the arms in the extended
position. The pins can be discarded.
5. Move the bar forward or back for best directionality, and
push it up against the display.
6. Installation is complete.
CONFIGURATION 1 (continued - Bar below the TV using the TV/VESA attachment)
2
3
4
5
1
6
Bar Adjustment
• When rotating the bar
up and down, grasp the
center with 2 hands close
to the plastic lens and
rotate with equal force.
• Don't twist the bar from
the ends, rotate the bar
beyond the mechanical
stops, or move it side-to
side while adjusting the
angle.
• When extending the
bar, move it up or down
slowly, especially near its
maximum extension.
