Server-class devices.
TesiraFORTÉ X uses a female 6-pole 3.81mm-pitch block connector for the GPIO connection.

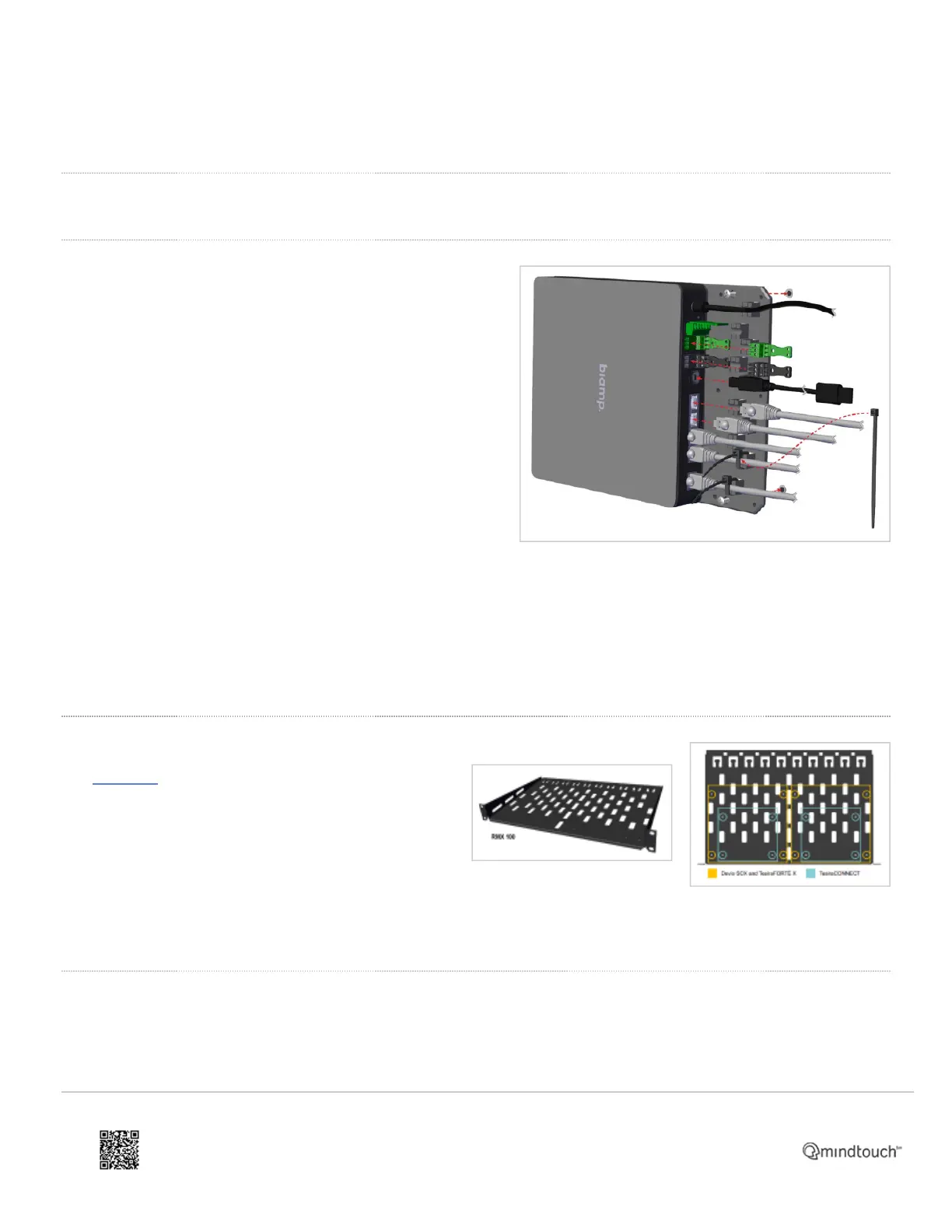

Installation
Wall Mounting
TesiraFORTÉ X comes with a pre-attached wall mount and
drywall anchors to allow placement behind wall mounted
displays. The wall mount features an integrated cable
management caddy with tie down points for neatly and securely
terminating all I/O and power cabling. A separate Velcro anchor
strap is included for attaching the external power supply to the
wall.
TesiraFORTÉ X is powered via an external inline supply with a
threaded chassis connection to ensure the cable is not
accidentally disconnected.
Overall Chassis Dimensions:
• Height: 1.66 inches (42.3 mm) Width: 8.11 inches (206 mm) Depth: 11.85 inches (301 mm) Weight: 2.2 lbs (0.99kg)
with the mounting plate attached
• Height: 1.47 inches (37.3 mm) Width: 8.11 inches (206 mm) Depth: 8.11 inches (206 mm) Weight: 1.9 lbs (0.86kg)
without the mounting plate attached
Rack Mounting
The RMX 100 rack shelf allows up to (2) TesiraFORTÉ
X, Devio SCX, TC-5, or TC-5D in any combination to be
securely mounted in a single rack unit space. The RMX
100 rack shelf ships with all fasteners necessary to
attach devices to the shelf, and the shelf to the rack rails.
Components are attached to the shelf with (4) M3 x 10mm screw, washers, and lock
washers (included with shelf kit). Rack mount screws are provided in (3) common sizes, #10-32 x .75", #12-24 x .75",
and M6 x .75".
Plenum Mounting
