here or else you will not be able to assign your layout to a physical device.
Audio transport between TesiraFORTÉ X and other Tesira devices in the same system is done via implicit AVB. There is
no need to manually define AVB paths, the Tesira compiler will automatically determine the path and establish the
required AVB streams between devices.
The USB X interface allows 1x1 or 2x2 configuration and a choice of line in and line out or speakerphone behavior with
AEC in the audio DSP or AEC in the PC. The speakerphone options allow Tesira to set a flag for the connected USB
host to indicate a preference for AEC on the Tesira device or AEC in the UC application. Not all UC platforms offer
support for this option and will simply ignore this choice.
The USB X interface supports HID mute sync for use with UC platforms.

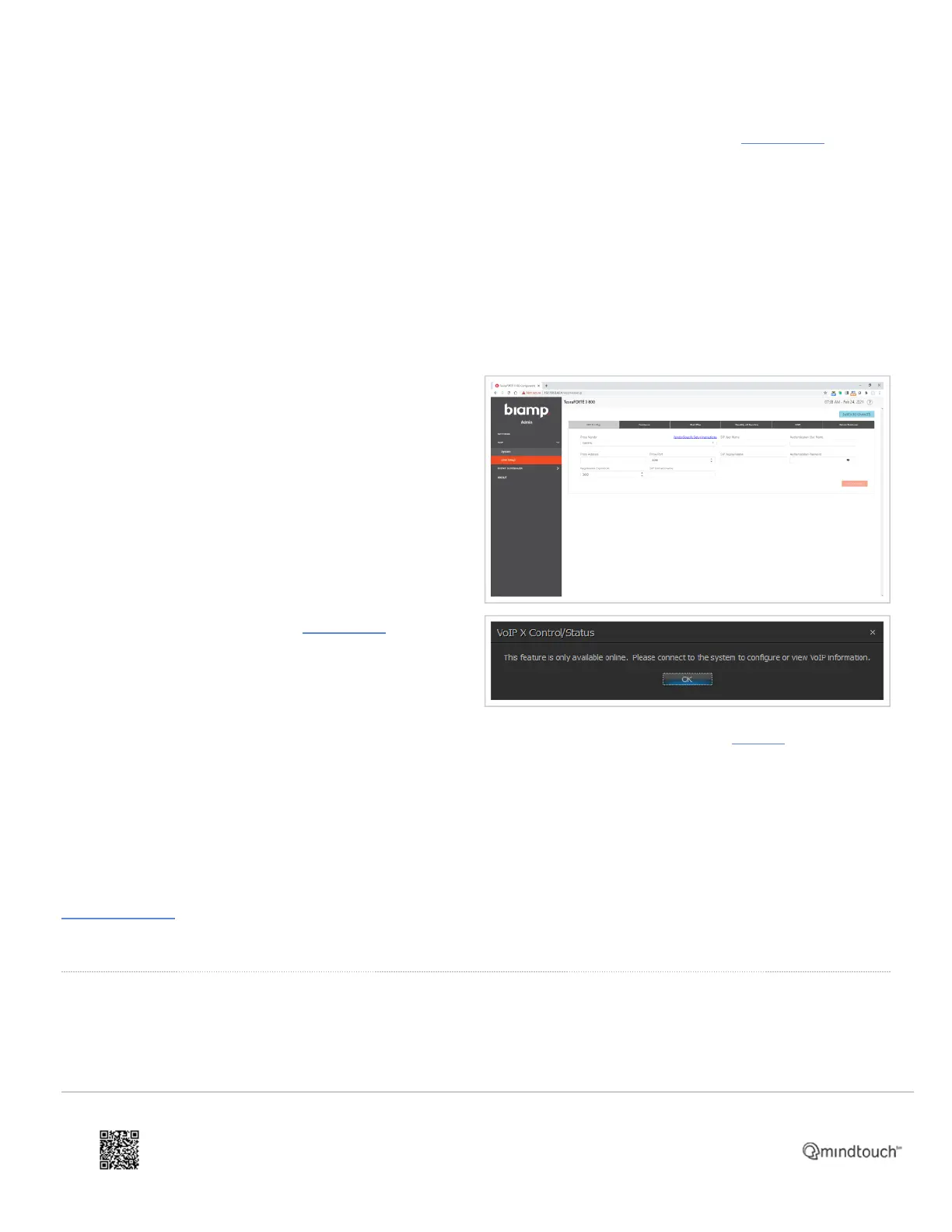

The VoIP X Control/Status block is not available for
configuration while offline. Unlike other Tesira VoIP
devices, TesiraFORTÉ X VoIP is entirely software based
and is configured solely via an internally served web
page. The web page can be launched by double-clicking
on the Control/Status block in Tesira SW or connecting to
the device directly via its IP address and choosing the
VoIP pages. If users attempt to configure the VoIP block
while offline a popup message will remind them of the
behavior.
TesiraFORTÉ X added support for explicit AVB (AVB.1)
endpoints with FW 4.2.2. AVB I/O blocks can be manually
added as desired, they are not placed into a layout
with TesiraFORTÉ X by default.
Dante is supported on all manually configured TesiraFORTÉ X devices. This includes support for AES67 through the
Dante interface. Dante I/O blocks can be manually added as desired, they are not placed into a layout
with TesiraFORTÉ X by default.
The Dante interface shares an IP address with the AVB interface on TesiraFORTÉ X, in most applications this is not a
hindrance to implementing desired network topologies. There may be special conditions with specific user-defined
network restrictions where a desired network topology is simply not possible due to IP address rules.
GPIO functions are available using the Logic Input, Logic Output, and Control Voltage blocks, as with other Tesira
devices.
3rd-party control systems
Control systems can communicate with manually-configured TesiraFORTÉ X either on P1 using the TesiraFORTÉ X's
control IP address, or on P2-5 using the TesiraFORTÉ X's media_avb_2 or Dante IP address.
