Modular fan coil unit 2 Installation
Version 2.1 English (17-07-2018)
11

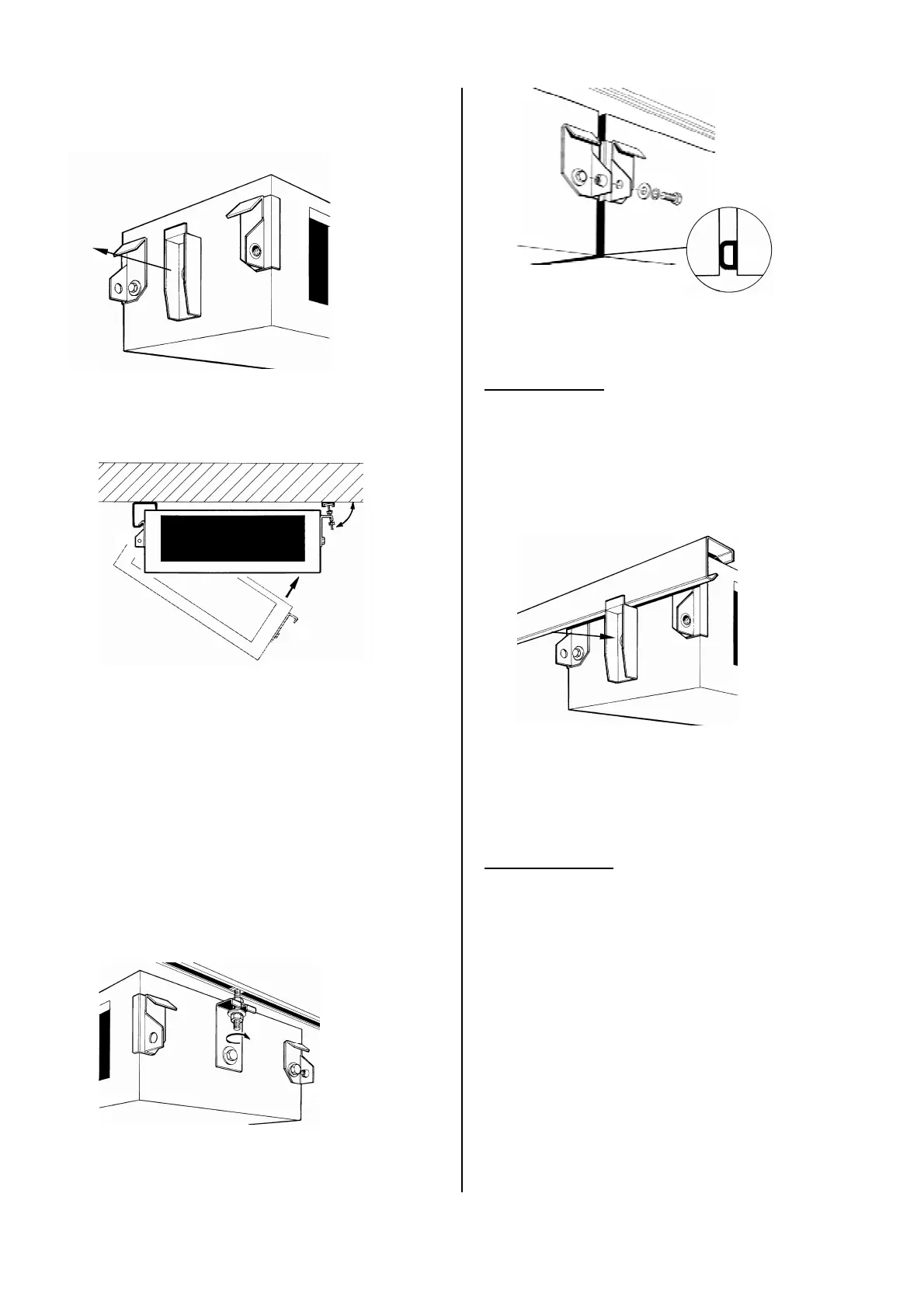

2.6.3 Suspending and securing
modules
1 The base module (PS B) and the at-
tenuation module (PS G) are provided
with a securing bracket 3. Remove it.
2 Hook the modules into the suspension
structure one by one. Hook the suspen-
sion brackets 4 into the suspension rail
on the one side, and the suspension
hook 5 in the thread rod on the other
side.
In suspending the modules, follow the
order that is indicated in the schedule on
the base module (see Section 1.3.3).
3 Using the thread rods, adjust the mod-
ules vertically so that they are level.
4 Secure the suspension hook 6 between
the two nuts on the thread rod.
5 Interlink the modules 7.
c
Caution:
When linking the modules, do not fully press
the rubber seal 8 together.
Ensure that the air valve module, if any, is
attached to the roof or wall duct in a draught-
free manner.
6 Re-attach the securing bracket 9, which
was removed in step 1, to the relevant
module(s).
w
Warning:
Make sure that the module(s) is (are) se-
cured. Unsecured suspension may lead to
a module falling out of the suspension
structure.
