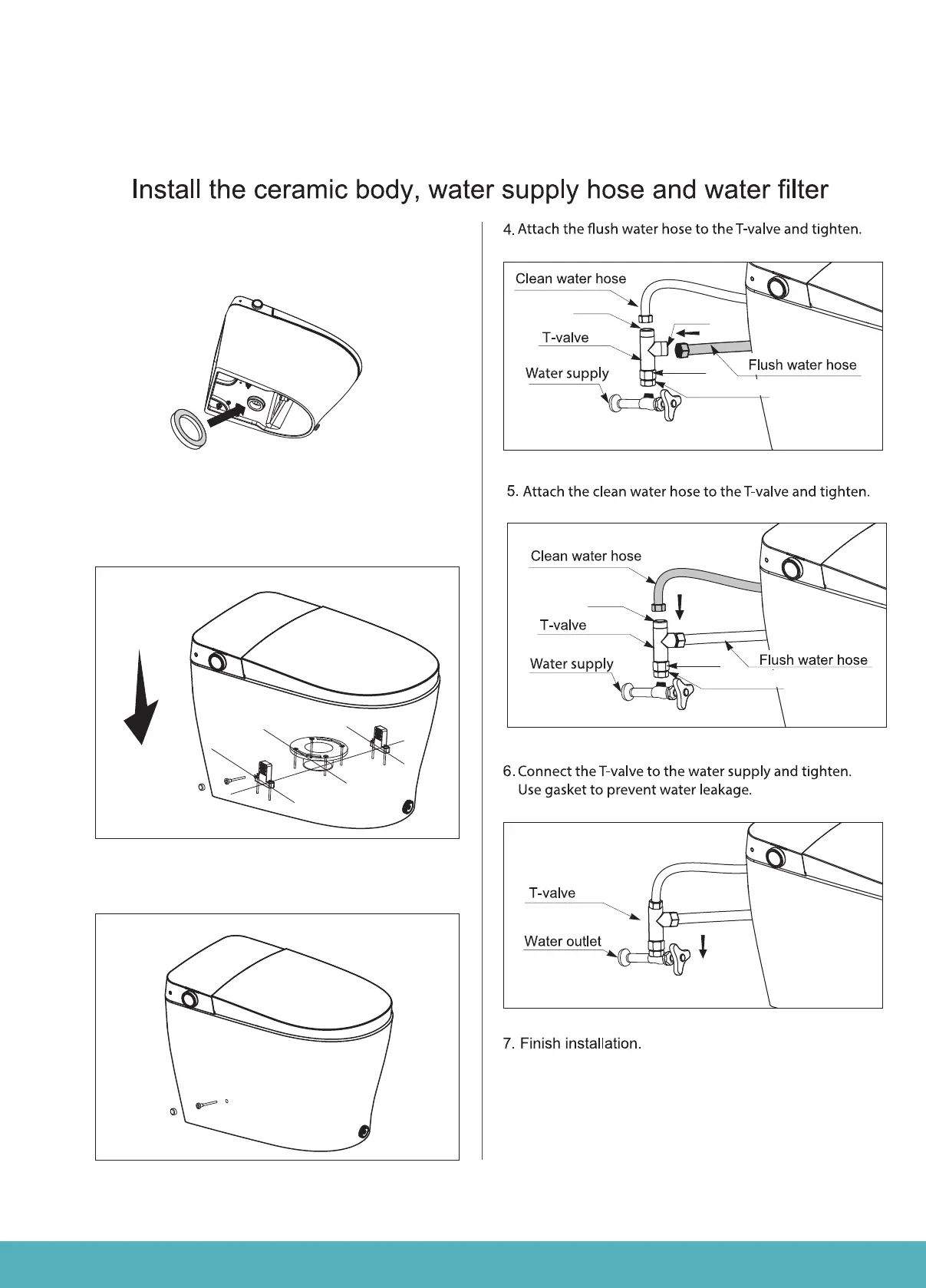

BidetMate BM-6000 - CONNECTING WATER SUPPLY AND DRAINAGE; Ceramic Body and Wax Ring Setup; Water Hose and T-Valve Connection

1.Place the wax ring on the drain hole at the bottom
of the ceramic.
3.Fix the two sides of the ceramic with two bolts,
and finally install the cap.
2.Align the ceramic drain with the drain hole on the
ground, and press down to make the wax ring fully
contact with the ground.
G1/2
G1/2
G1/2
G1/2
G1/2
3/8”Adapter
3/8”Adapter
