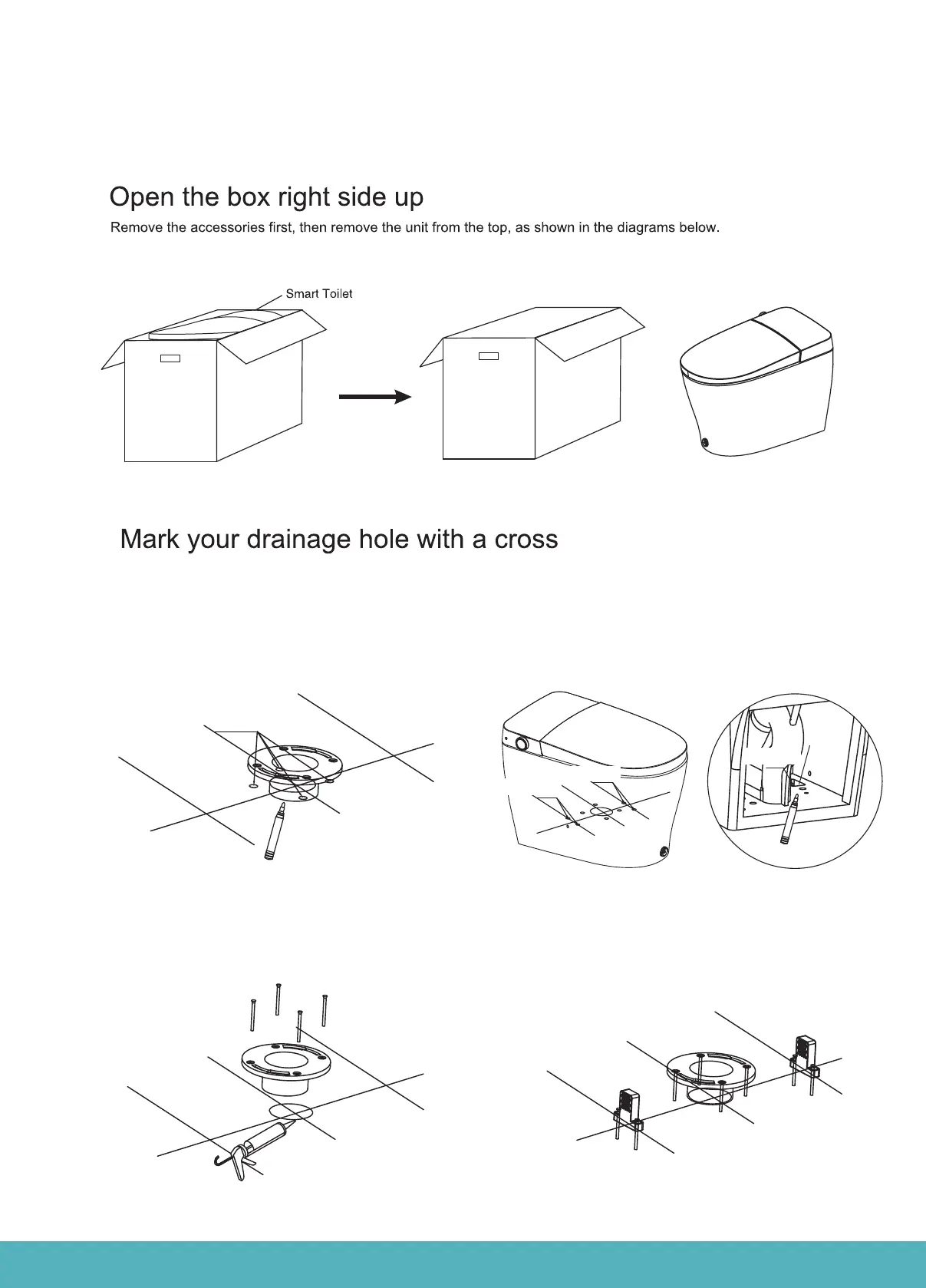

1.Put the flange on the drain hole, and fix it on
the ground with four bolts. Then Seal the
flange with glass glue.
2.Place the fixing block on the installation position
marked by the line drawing pen and fasten it with
two bolts.
Screw mounting
holes of fixing block
Openings of
ceramic bottom
Screw mounting
holes of fixing block
1.Align the flange with the drain hole, and
mark the positions of the four mounting holes
of the flange on the ground with a marking
pen.
2.Place the toilet on the ground with aligning the
ground drain hole, place two fixing blocks in the
openings on the left and right sides of the toilet
bottom, mark the screw mounting hole positions
of the fixing block with a marking pen, and then
remove the toilet.
Bolt mounting holes of flange
Screw mounting
holes of fixing block
BidetMate.com Info@BidetMate.com
INSTALLING YOUR PRODUCT
2
1
3
Install your unit using the following steps
