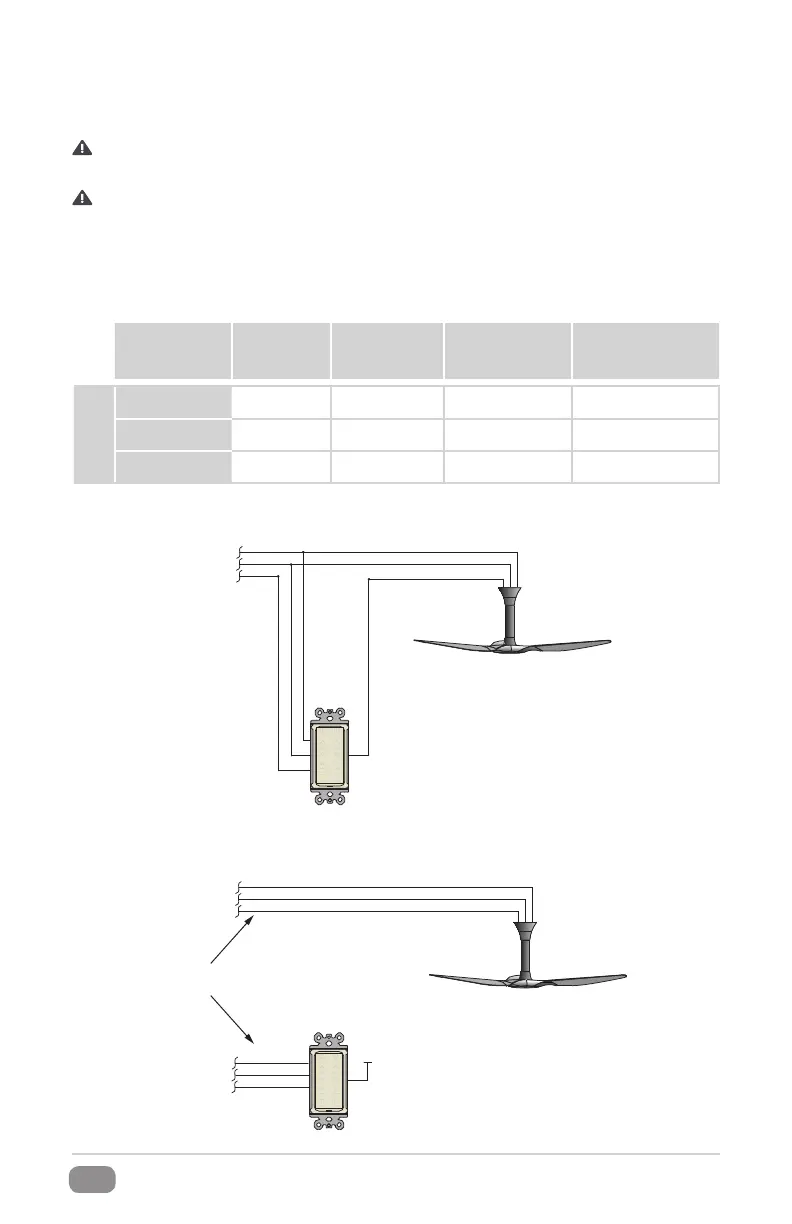

Step 6. Wire the wall control
WARNING: Ensure power is disconnected at the fuse/breaker distribution panel before wiring the
wall control and the fan!
CAUTION: Do not use the fan with a dimmer switch.
While supporting the wall control, connect the wires with wire connectors as shown below. Switch leg wiring
is recommended by Big Ass Fans. If switch leg wiring is not possible, secure the end of the red wire with a
wire connector.
HAIKU WALL CONTROL (CONT.)
Wire color chart
Wall Control Wire Color
North America
Australia*
AC Line (L1)
Black
Red
AC Neutral (L2/N)
White
Blue
PE/Ground
AC Load (L1A) (Switch Leg)
Red
Red
Power Supply Wire
Color
North America
100–120 V System
Black White Green or Bare Copper Black
North America
208–240 V System
Black, Red, or Blue Red, Blue, or Black Green or Bare Copper Black
Australia*
240 V System
Brown or Red Black or Light Blue Green with Yellow Tracer Brown
*Special Note: If installing the fan in Australia, a licensed electrician must perform the electrical installation.
100–240VAC
1 Φ, 50/60Hz
PE / Ground
L2 / AC Neutral
L1 / AC Line
PE / Ground
L2 / AC Neutral
L1 / AC Line
L1A / AC Load (Switch Leg) (Capped)
PE / Ground
L2 / AC Neutral
L1 / AC Line
100–240VAC
1 Φ, 50/60Hz
Can be dierent
AC circuits
100–240VAC
1 Φ, 50/60Hz
PE / Ground
L2 / AC Neutral
L1 / AC Line
PE / Ground
L2 / AC Neutral
L1A / AC Load (Switch Leg)
L1A / AC Load (Switch Leg) (Optional)
PE / Ground
L2 / AC Neutral
L1 / AC Line
100–240VAC
1 Φ, 50/60Hz
PE / Ground
L2 / AC Neutral
L1 / AC Line
PE / Ground
L2 / AC Neutral
L1 / AC Line
L1A / AC Load (Switch Leg) (Capped)
PE / Ground
L2 / AC Neutral
L1 / AC Line
100–240VAC
1 Φ, 50/60Hz
Can be dierent
AC circuits
100–240VAC
1 Φ, 50/60Hz
PE / Ground
L2 / AC Neutral
L1 / AC Line
PE / Ground
L2 / AC Neutral
L1A / AC Load (Switch Leg)
L1A / AC Load (Switch Leg) (Optional)
PE / Ground
L2 / AC Neutral
L1 / AC Line
OR
