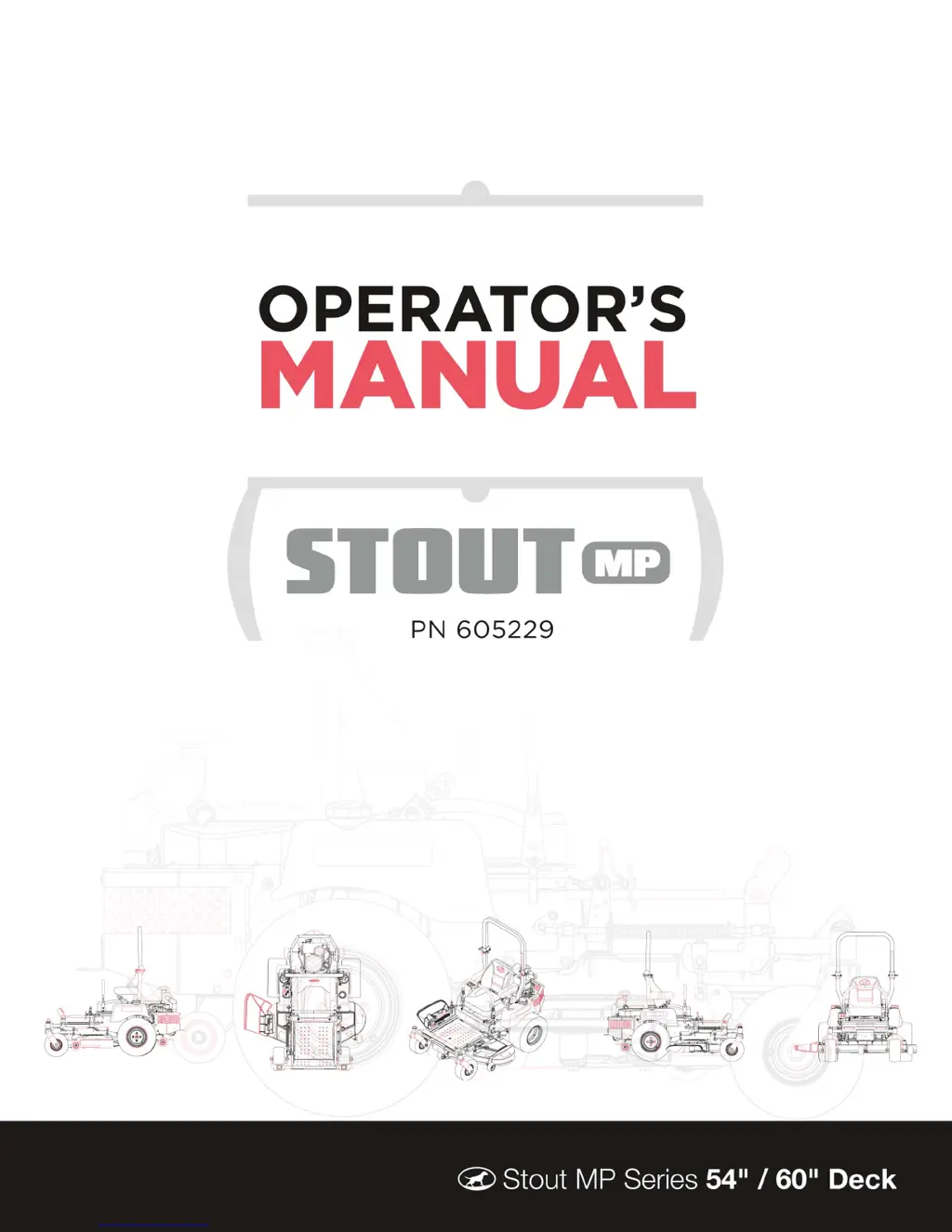

BigDog Stout MP series - User Manual

BigDog Stout MP series
46 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...

Questions and Answers

  • I
    ikleinAug 17, 2025
    Why won't my BigDog Stout MP Lawn Mower engine start?
    • W
      Wayne WilliamsAug 17, 2025
      If your BigDog Lawn Mower engine won't start, starts with difficulty, or stalls, there are several potential causes: * The fuel tank may be empty, or the fuel line might be blocked. Refill the tank or replace the fuel line. * The fuel valve might be closed. Open the fuel valve. * The fuel system might contain the wrong type of fuel. Drain the tank and replace it with the correct fuel. * The fuel filter may be dirty. Replace the fuel filter. * The choke may not be engaged. Move the choke lever to the ON position.
  • M
    Martin DawsonAug 19, 2025
    What to do if the starting motor on my BigDog Stout MP doesn't crank?
    • A
      Aaron CampbellAug 19, 2025
      If the starting motor on your BigDog Lawn Mower doesn't crank, try the following: * Ensure the steering control levers are in the park brake position, or readjust the switch. * Disengage the deck clutch switch. * Recharge or replace a weak or dead battery. * Check for corroded or loose electrical connections. * Replace a blown 15 amp fuse.
  • B
    bryanjohnsonAug 22, 2025
    How to fix uneven cutting height on BigDog Lawn Mower?
    • R
      Rebecca GeorgeAug 23, 2025
      If your BigDog Lawn Mower is producing an uneven cut, consider these potential causes: * The blades might be dull. Sharpen the blades. * A cutting blade might be bent. Install new cutting blades. * An anti-scalp wheel may be incorrectly set. Adjust the height of the anti-scalp wheel. * The underside of the deck may be dirty. Clean the underside of the deck. * Tire pressure may be incorrect. Adjust the air pressure to 8 - 12 psi (55 - 83 KPa).
  • D
    david50Aug 26, 2025
    Why is my BigDog Stout MP Lawn Mower vibrating abnormally?
    • M
      mwattsAug 26, 2025
      If you notice unusual vibration in your BigDog Lawn Mower, here are some things to check: * Tighten any loose engine mounting bolts. * Tighten any loose engine, idler, or blade pulleys. * Replace any bent or unbalanced cutting blades. * Tighten any loose blade mounting bolts. * Replace or tighten worn or loose spindle bearings.
  • D
    deleonbrittanyAug 28, 2025
    What causes power loss in my BigDog Stout MP Lawn Mower?
    • K
      kacostaAug 28, 2025
      If your BigDog Lawn Mower experiences a loss of power or fails to operate in either direction, consider the following: * Service the air cleaner if there are restrictions. * Adjust the linkage if the steering linkage needs adjustment. * Close the tow valve if it's open. * Install a new traction drive belt if the current one is worn, loose, or broken. * Check the filter and fittings if there is air in the system.
  • P
    Patricia YoungAug 30, 2025
    Why does my BigDog Stout MP veer to one side?
    • V
      Vincent WarnerAug 30, 2025
      If your BigDog Lawn Mower circles or veers in one direction, the following could be the cause: * The steering linkage may need adjustment. Adjust the linkage. * The steering linkage might be loose. Tighten the linkage. * The tires may be improperly inflated. Adjust the air pressure to 8 - 12 psi (55 - 83 KPa).
  • M
    Mark SavageSep 2, 2025
    What to do if BigDog Stout MP blades do not rotate?
    • A
      Andrew AndersonSep 2, 2025
      If the blades on your BigDog Lawn Mower aren't rotating, check these items: * Install a new deck drive belt if the current one is worn, loose, or broken. * Install the deck drive belt if it is off the pulley, and check for the reason it came off. * Check and/or replace the 10 amp fuse if the electric clutch is not engaging.
  • B
    bellantonioSep 5, 2025
    How to prevent my BigDog Stout MP engine from overheating?
    • A
      Ashley WallSep 5, 2025
      If your BigDog Lawn Mower's air-cooled engine is overheating, clean the air intake screen or cooling fins if they are clogged.
  • M
    Makayla TaylorSep 8, 2025
    How to stop my BigDog Stout MP Lawn Mower from creeping in neutral?
    • A
      Adrian HinesSep 8, 2025
      If your BigDog Lawn Mower moves forward when the steering control levers are in neutral, it indicates that the steering linkage needs adjustment. Adjust the linkage to resolve this issue.
  • A
    Anna VillanuevaSep 12, 2025
    Why does my BigDog Stout MP Lawn Mower creep with the parking brake on?
    • L
      Lindsey LeeSep 12, 2025
      If your BigDog Lawn Mower creeps forward even when the parking brake is engaged, it could be due to: * Steering linkage being out of adjustment. Adjust the steering linkage. * Brakes needing adjustment. Adjust the parking brakes.

Summary

SAFETY PRECAUTIONS

Safety Symbols and Decals

Explains safety alert symbols (DANGER, WARNING) and decal meanings.

OPERATION GUIDELINES

Safe Operating Practices

Essential guidelines for safe use to prevent injury or death.

MACHINE CONTROLS AND STARTUP

Steering and Drive Controls

Operation of steering control levers for speed, direction, and stopping.

Safety Start Interlock System

Explanation of the safety system preventing unintended engine start.

Engine Starting and Stopping

Procedures for starting and shutting down the mower engine safely.

OPERATIONAL PROCEDURES

ROPS and Safety

Information on Roll Over Protective Structure (ROPS) and seat belt usage.

MAINTENANCE AND ADJUSTMENTS

Safe Servicing Practices

Critical safety guidelines for performing maintenance and repairs.

MAINTENANCE SCHEDULE AND CHARTS

TROUBLESHOOTING

BigDog Stout MP series Specifications

General IconGeneral
BrandBigDog
ModelStout MP series
CategoryLawn Mower
LanguageEnglish
