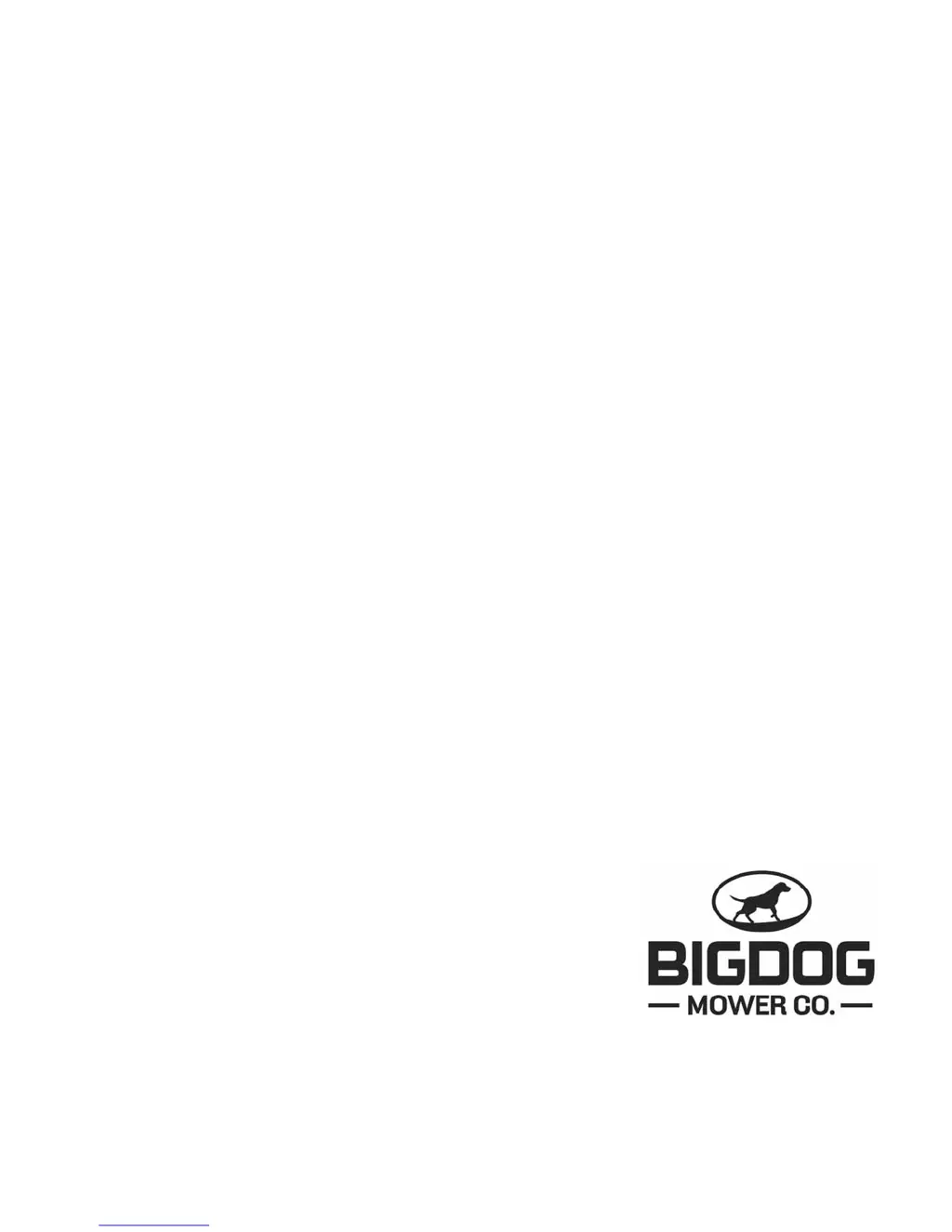

122832 REV A
BIGDOG
®
MOWER CO. TROOPER
General Service Manual
200 South Ridge Road
Hesston, Kansas
67062

Questions and Answers

  • E
    emilydavisAug 15, 2025
    Why is the starting motor not cranking on my BigDog Lawn Mower?
    • J
      James KellyAug 15, 2025
      If your BigDog Lawn Mower's starting motor isn't cranking, it could be due to several reasons. Ensure the park brake lever is fully engaged in the park position. Check that the deck clutch switch is disengaged. A weak or dead battery can also prevent starting, so recharge or replace it as needed. Examine the electrical connections for any corrosion or looseness. Also, inspect the fuses and replace any that are blown. Finally, make sure the neutral switches are properly engaging by moving the steering control lever to the neutral position or adjusting the switches.
  • C
    Catherine GardnerAug 18, 2025
    What to do if my BigDog Lawn Mower engine will not start?
    • S
      Savannah BurnsAug 18, 2025
      If your BigDog Lawn Mower engine won't start, starts with difficulty, or struggles to stay running, several factors could be at play. First, ensure you have enough fuel and that the fuel line isn't blocked; refill the tank or replace the line if necessary. Check that the fuel valve is open. Make sure you're using the correct type of fuel; if not, drain the tank and replace it with the right fuel. A dirty fuel filter can also cause issues, so replace it. Finally, ensure the choke is engaged (if your mower has one).
  • M
    Madison MortonAug 21, 2025
    Why is my BigDog Lawn Mower losing power?
    • J
      John MooreAug 21, 2025
      If your BigDog Lawn Mower is experiencing a loss of power or won't operate in either direction, several factors could be responsible. Start by checking the air cleaner for any restrictions and service it if needed. Ensure the tow valve is closed. Inspect the traction drive belt for wear, looseness, or breakage, and replace it if necessary. Also, check the filter and fittings for air in the system.
  • A
    ashley55Aug 25, 2025
    Why is my BigDog Lawn Mower vibrating so much?
    • C
      comptonalejandraAug 25, 2025
      If your BigDog Lawn Mower is vibrating abnormally, start by checking the engine mounting bolts and tightening them if they are loose. Next, inspect the engine pulley, idler pulley, and blade pulley, tightening any that are loose. Examine the cutting blades for bending or imbalance, and replace them if necessary. Also, check the blade mounting bolts and tighten them if needed. Finally, inspect the spindle bearing for wear or looseness, and replace or tighten it as necessary.
  • C
    Claudia WadeAug 27, 2025
    How to fix overheating on my BigDog Lawn Mower?
    • C
      Carolyn WeaverAug 27, 2025
      If your BigDog Lawn Mower is overheating, the air intake screen or cooling fins may be clogged. Clean the screen and fins to ensure proper airflow and cooling.
  • M
    Miranda MillerAug 30, 2025
    Why does my BigDog Lawn Mower veer to one side?
    • E
      Emily KingAug 30, 2025
      If your BigDog Lawn Mower circles or veers in one direction, it could be due to a few reasons. The steering linkage might need adjustment. Alternatively, the steering linkage might be loose and need tightening. Also, check the tire pressure and adjust it to between 8–12 psi (55–83 KPa).
  • A
    anthonymccarthySep 2, 2025
    Why is my BigDog Lawn Mower jerky?
    • B
      Barry SkinnerSep 3, 2025
      If your BigDog Lawn Mower is jerky when starting or only operates in one direction, the steering control linkage may need adjustment. Alternatively, the steering linkage might be loose and require tightening. Make sure the tow valves are completely closed.
  • E
    Ernest GainesSep 5, 2025
    Why are the blades not rotating on my BigDog Lawn Mower?
    • P
      pwalkerSep 5, 2025
      If the blades on your BigDog Lawn Mower aren't rotating, it could be due to a worn, loose, or broken deck drive belt. Install a new deck drive belt to resolve this issue. Also, check if the deck drive belt is off the pulley and reinstall it, investigating the reason why it came off.
  • A
    Amber RobertsonSep 8, 2025
    What causes low oil pressure in my BigDog Lawn Mower?
    • S
      smithronaldSep 8, 2025
      If you notice low engine oil pressure in your BigDog Lawn Mower, start by checking the oil level and adding oil if it's low. If the oil is diluted or too light, change it and check for any sources of contamination.
  • A
    Amanda MillerSep 12, 2025
    How to fix uneven cutting height on BigDog Lawn Mower?
    • C
      Corey BakerSep 12, 2025
      If your BigDog Lawn Mower is producing an uneven cut, the blades may not be sharp enough. Sharpen the blades to ensure a clean, even cut. Also, check if any of the cutting blades are bent and replace them if necessary.

Summary

Safety

Safe Servicing Practices

Guidelines for performing service safely on the equipment.

Avoid Fire Hazards

Precautions and procedures to prevent fire incidents.

Prevent Battery Explosions

Safety measures to prevent battery explosions.

Avoid Acid Burns

Safety guidelines to prevent injury from battery acid.

Power Unit Maintenance

Steering Adjustments

Adjusting steering control levers for neutral position.

Hydraulic Pump Belt Adjustment

Adjusting the tension of the hydraulic pump drive belt.

Hydraulic Pump Flow Test

Testing the flow rate of the hydraulic pump.

Bi-Directional Flow Test Kit Installation

Installing a test kit for hydraulic pump diagnosis.

Bi-Directional Flow Testing Procedures

Steps for performing hydraulic pump flow tests.

Engine Maintenance

Engine Oil and Filter

Procedures for changing engine oil and filter.

Deck Adjustments

Mower Blade Maintenance

Procedures for maintaining mower blades, including sharpening.

Electrical

Maintenance Schedule

Maintenance Schedule Details

Table outlining service intervals for various maintenance tasks.

Troubleshooting

Troubleshooting Guide

Table of common symptoms, probable causes, and suggested remedies.

BigDog trooper Specifications

General IconGeneral
BrandBigDog
Modeltrooper
CategoryLawn Mower
LanguageEnglish
