BigDog trooper - Tires

REV A 4-10 122832
Tires
It is important for level mowing that the tires have the
same amount of air pressure. The recommended pressures
are:
Drive wheels . . . . . . . . . . . . . . . . . .8–12 psi (55–83 KPa)
Only pneumatic tires are approved for the drive tires on this
mower. Warranty claims will be denied on any mower
equipped with non-pneumatic tires.

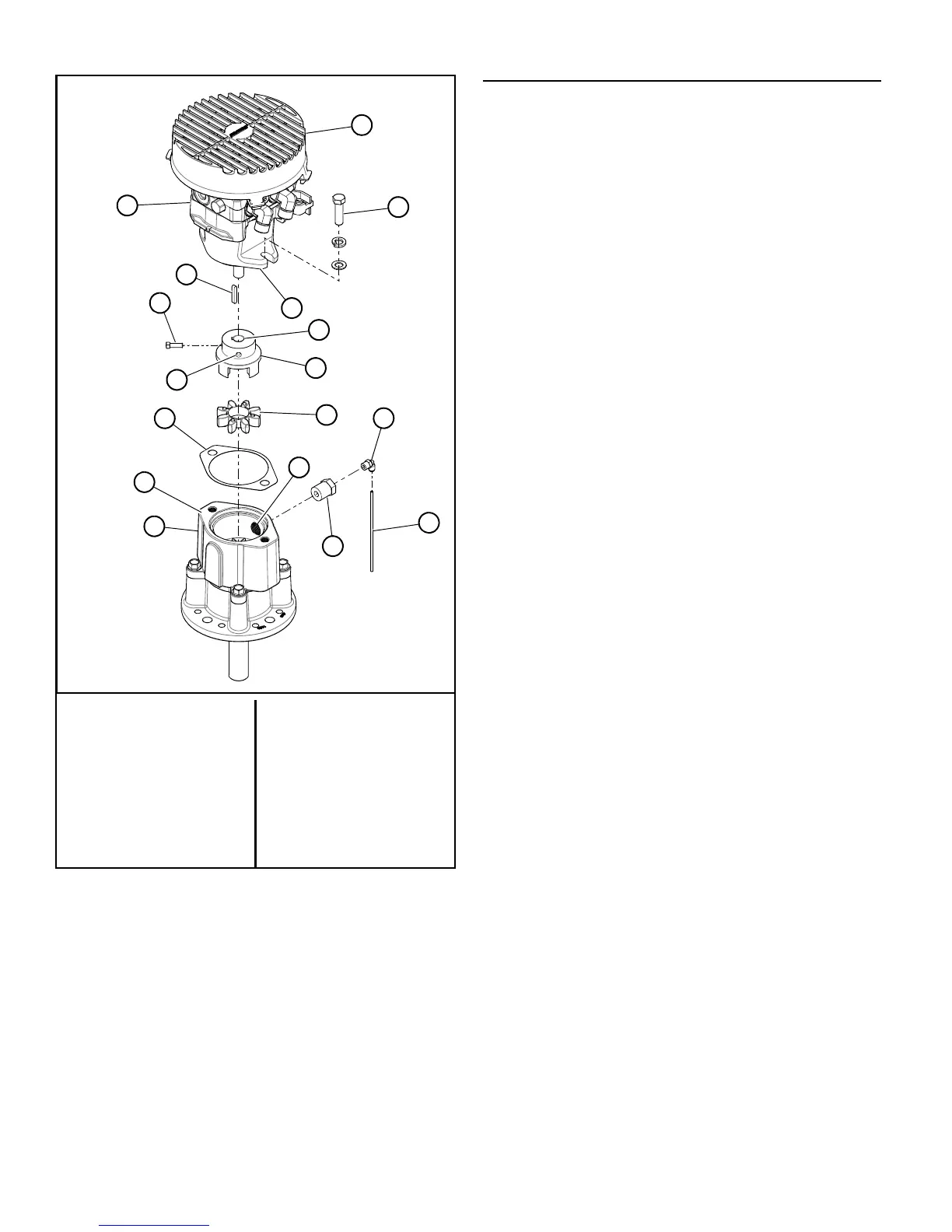

A. Pump fan blades
B. Hydraulic pump
C. Cap screw (2)
D. Key
E. Set screw (2)
F. Place anti-seize here
G. Pumpside coupling
H. Spider gear
I. Gasket
J. Jackshaft assembly
K. Fitting
L. Fitting
M. Nylon tube
N. Contacting surface
O. Locate set screw hole
through this hole.
P. Set screw hole
Figure 4-12
A
C
D
L
G
J
M
E
I
F
H
K
B
N
N
O
P
