BigDog trooper - Maintenance Locator Chart

122832 8-3 REV A
Maintenance Locator Chart
1. Engine Oil Fill & Dipstick
2. Fuel Filter
3. Engine Air Cleaner
4. Engine Oil Drain Valve
5. Battery
6. Fuel Tank
7. Hydraulic Oil Reservoir
8. Hydraulic Oil Filter
9. Front Wheel Bearing Zerks (2)
10. Engine Oil Filter
11. Deck Height Pivot Zerks (4)
12. Drive Tire
13. Fuel Evaporation System Filter
14. Pump Belt
15. Deck Pusher Arm Zerks (2)
16. Deck Belt
17. Spindle Housing Zerk (3)
18. Blades

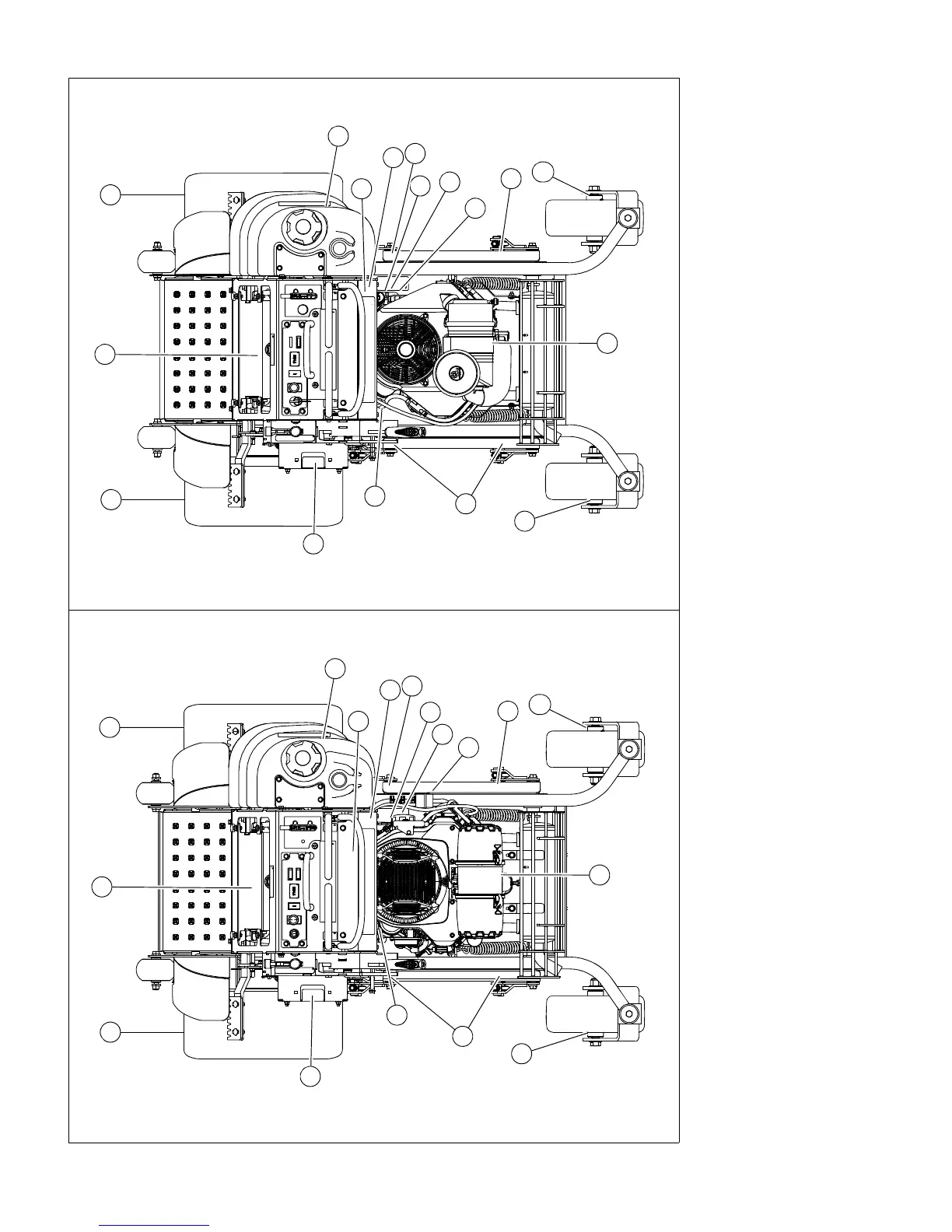

Figure 8-1
Figure 8-2
Units with Kawasaki Engines
1
2
3
5
6
7
9
9
10
13
11
11
4
8
12
12
11
Units with Kohler Engines
1
2
3
5
6
7
9
9
10
13
11
11
4
8
12
12
11
