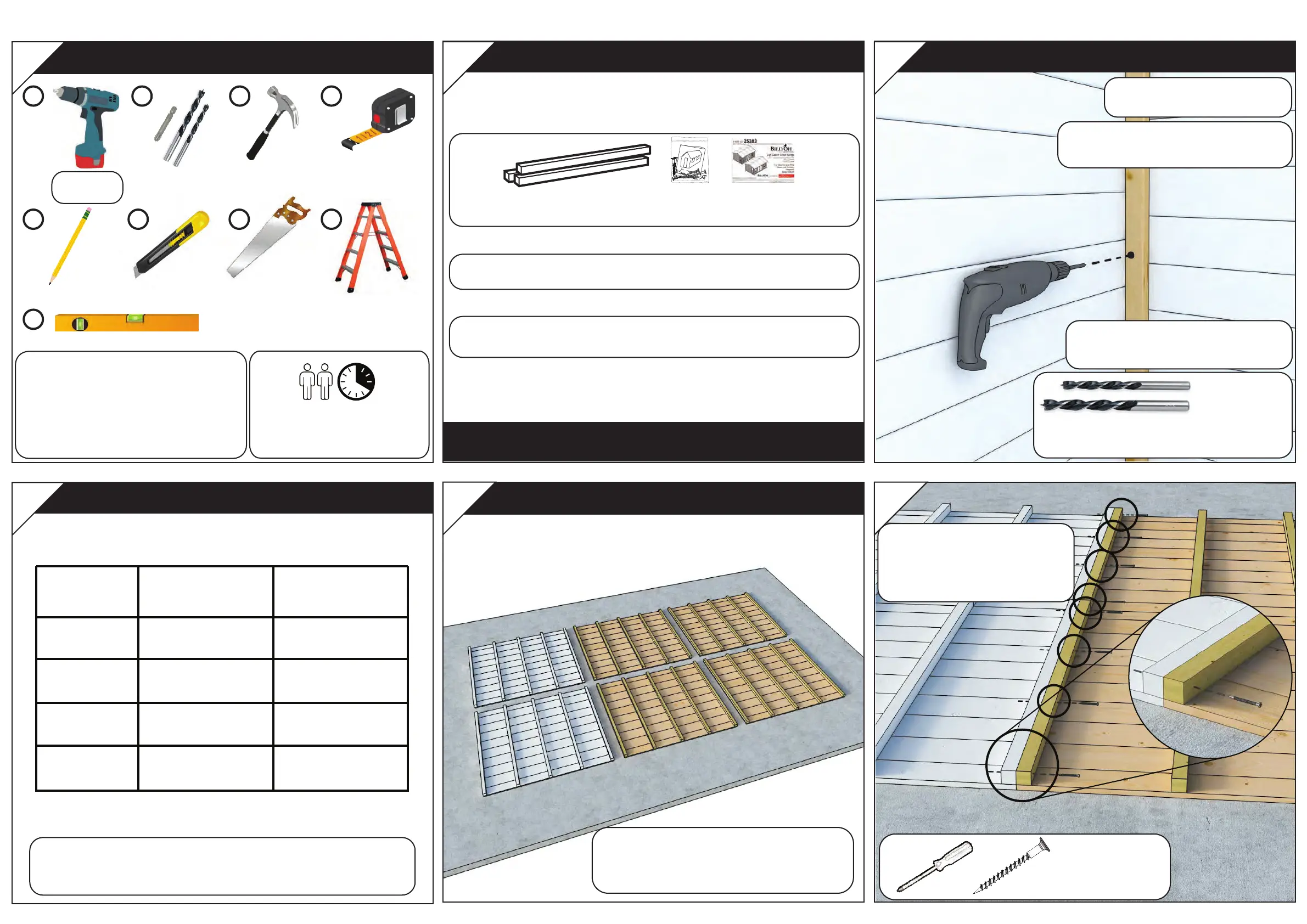

Billyoh Darcy - Assembly Preparations; Tools and Materials Checklist; Floor and Roof Construction Details

For Queries and Help please call Product Support: 01909 768 858
Building Kit - contains nail bag, hinges, door handles, turn
buttons, casement stay, padlock and hasp.
B.O.M./Packlist - contains all Wall and Gable boards, Strips,
Framings, Door and Window frames.
&XVWRPHU7HFK'RFXPHQWFRQWDLQVZDOOHOHYDWLRQVȵRRU
Roof options, Door & Window, B.O.M./Packlist and Building Kit
:KHUHWRȴQGHYHU\WKLQJ
+$1'<7Ζ36RUWȴ[LQJVDQGERDUGVE\VL]HDQGSLHFH
EHIRUHVWDUWLQJ
Use a suitable drill bit for pilot hole
- 3mm is recommended for most.
3mm or 4mm
Avoid splitting wood by pre-
drilling pilot holes for all screws
This is needed for all screw codes:
S25, S30, S40, S50, S70 and S100
IMPORTANT: Pre pilot drill
all screw holes
Pilot Drilling
Recommend
x2 for speed
1 2 3 4
85
9
6 7
Approximate building time is
4 to 8 Hours assembly
based on experience and size.
1. Cordless drill
2. Phillips bit
and drill bits
3. Hammer
4. Measuring Tape
5. Pencil
6.Utility Knife
7. Woodsaw
8. Step ladder
9. Spirit level
What you need
/D\ȵRRUVHFWLRQVZLWK
-RLVWVIDFLQJXSZDUGV
Floor Stages
Side
Back
S50 x 8
Only join a max
RIȵRRUVWRJHWKHU
EHIRUHWXUQLQJ
Please note on the length of Floor and Roof
boards according to your building size.
Building
Size
Floor
Sections
Roof
Boards
19mm/28mm
10 x 8
Board Length-1385mm
19mm/28mm
12 x 8
Board Length-1385mm
4
6
19mm/28mm
12 x 10
6 Board Length-1706mm
19mm/28mm
14 x 10
8
Board Length-1706mm
Floor / Roof Details
1
4
5 6
2 3
