Billyoh Darcy - Roof Construction; Eaves Framing Installation; Roof Sheet Fixing

For Queries and Help please call Product Support: 01909 768 858
S40 x 6
R4C-28x28 (x2)
Check the Tech Details
for the length required.
Requires cutting to size

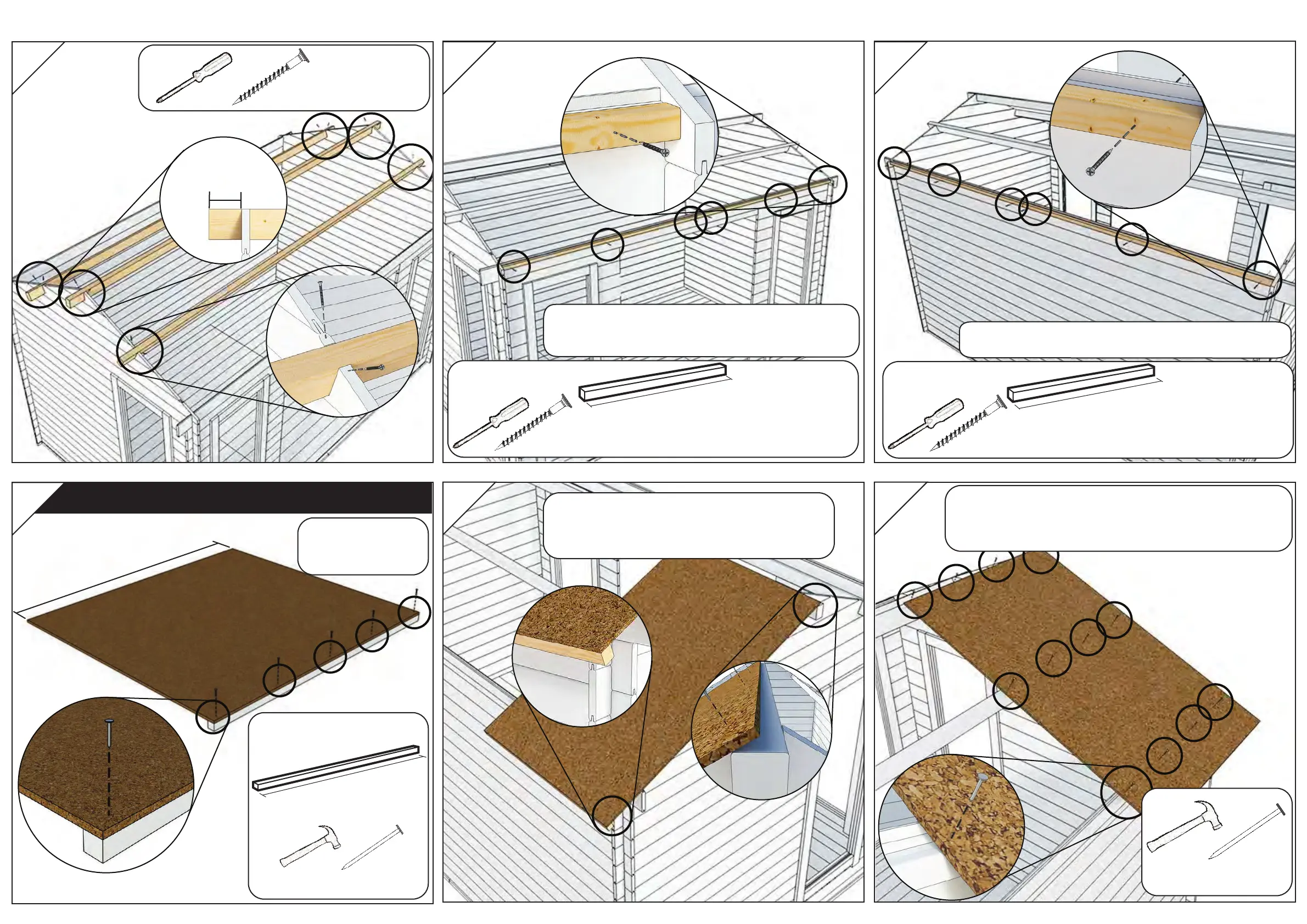

Line up the external Eaves Framing
on top of side wall boards
Repeat previous stage for this side
S40 x 6
R4C-28x28 (x2)
Check the Tech Details
for the length required.
Requires cutting to size
S50 x 12
19mm=126mm
28mm=117mm
Position the Roof Sheet
square with the framing
N30 x 12
7KH5RRI6KHHWVKRXOGȴWKDOI
ZD\DFURVVWKH5RRI7UXVV
N30 x 5
x 1
1172mm or
879mm
Repeat for all
roof sheets
Roof Fixing Stage (SS)
1172mm or
879mm
19
22
23 24
20 21
