Billyoh INS-0044 - Page 10

For Queries and Help please call Product Support:
01636 858 377
S50 x 4

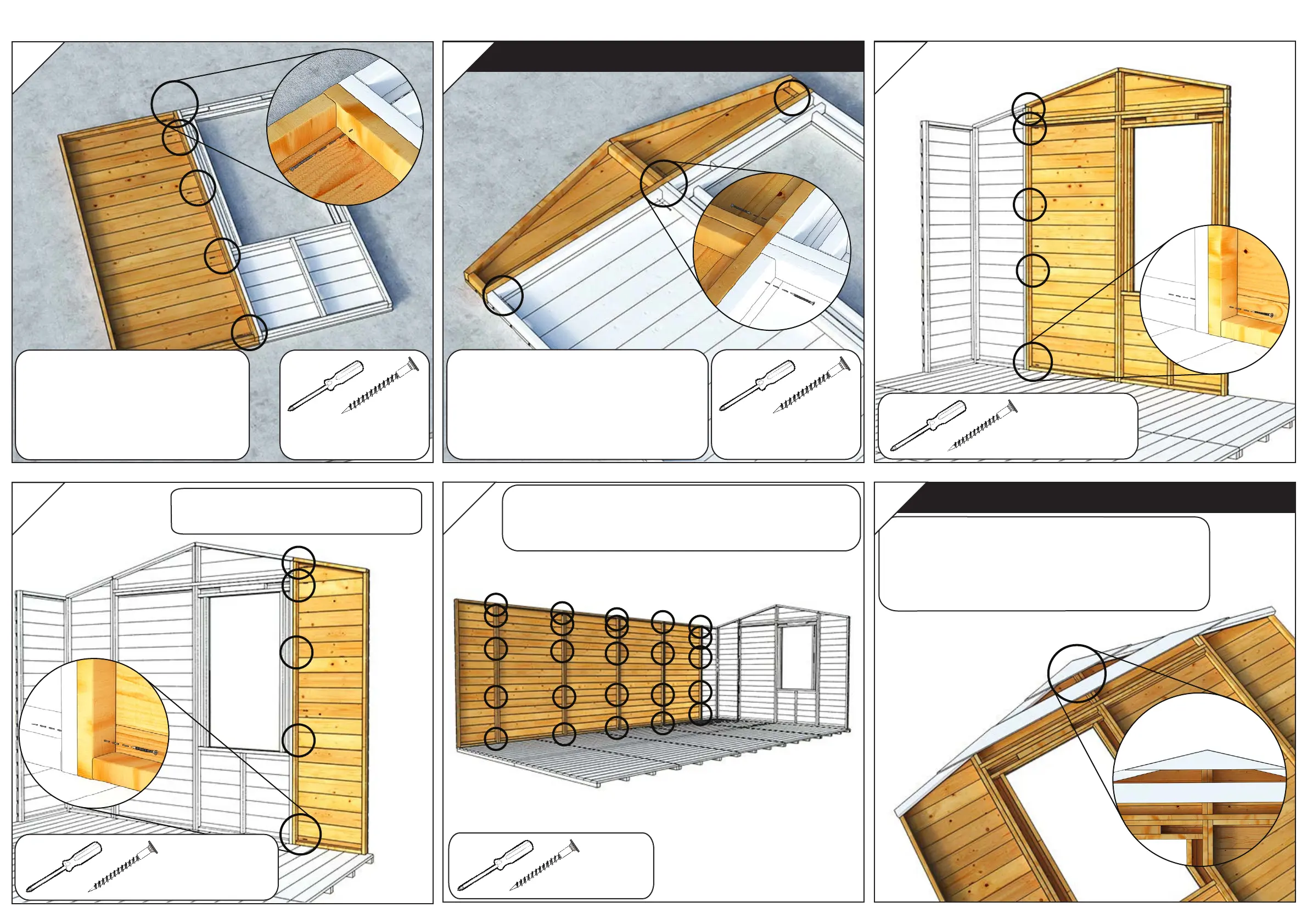

Fix the Gable Central
Panel to the top of 3ft
Window & Plain Panel
Central Gable Fixing Stage
3ft Plain Panel
S50 x 5
S50 x 5
/D\DQGȴ[WKHIW
3ODLQ3DQHODQGIW
:LQGRZ3DQHO
3ft Plain
Panel
3ft Window
Panel
S50
Fix additional wall panels. They
VKRXOGOLQHXSZLWKWKHȵRRUV
Truss Fixing Stage
Use the Gable Apex Panels
to align the Truss sections
(TRU)
S50 x 5
Fix the Side Gable Panel
7
10
11 12
8 9
