Billyoh INS-0044 - Page 13

For Queries and Help please call Product Support:
01636 858 377
)LWDQGȴ[WKH'RRUIUDPHV
S50 x 13
S50 x 8
1
2

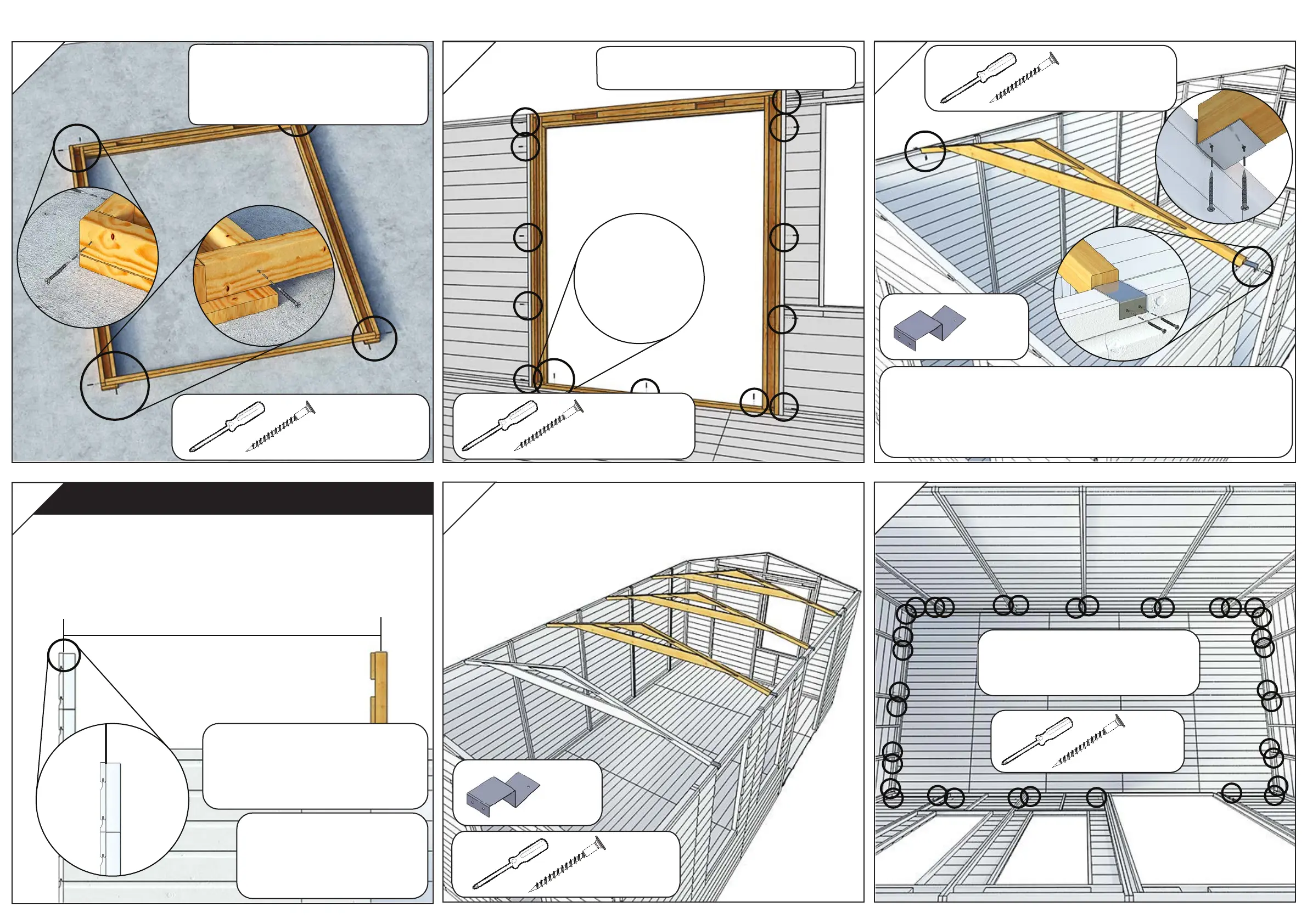

The Truss must be positioned where the Roof
Panels will meet. This will be either 879mm
or 1172mm. Please see the diagram.
x 2
S50 x 8
Fix the Door Frames
and Door Treshold
S50
x 6
S50
Screw the Wall
3DQHOVWRWKHȵRRU
The distance 879mm
or 1172mm is the
width of a Roof Sheet.
Measure from the
framing to the
centre of the Truss
Truss Position Diagram
Side View
879mm or 1172mm
25
28
29 30
26 27
