81882X (en) Page 5 of 12

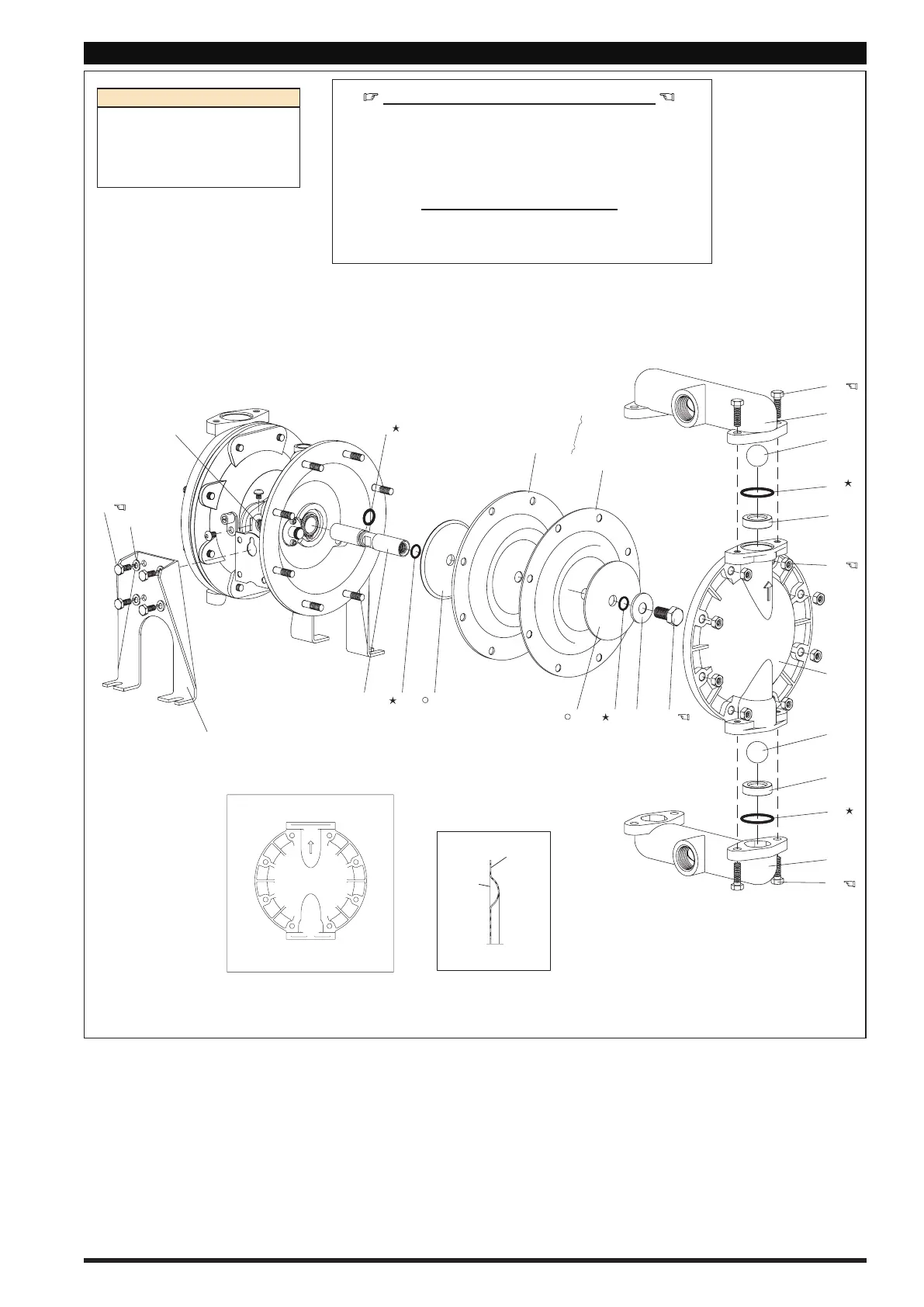

PARTS LIST / 818820, 818821 FLUID SECTION
2
5
914
15
16
19
21
22
29
21
22
FOR THE
AIR MOTOR SECTION
SEE PAGES 7 AND 8
1’’ OUTLET
1’’ INLET
Air Inlet
19
16
26
26
6 3
7
8
3
1
8
6
42
3
7
5
Torque Sequence
Air
Side
Fluid
Side
Cross SectionView
of Diaphragms
1
107
106
105
Figure 2
ASSEMBLY TORQUE REQUIREMENTS
NOTE: DO NOT OVERTIGHTEN FASTENERS.
ALL FASTENERS ARE METRIC.
(14) Bolt, 25 - 30 ft lbs (33.9 - 40.7 Nm), apply Loctite 271 to threads.
(26) Bolts and (29) Nuts, 120 - 140 in. lbs (13.6 - 15.8 Nm).
(105) 40 - 50 in lbs (4.5 - 5.6 Nm).
LUBRICATION / SEALANTS
Apply Key-Lube to all “O” rings, “U” Cups and mating parts.
COLOR CODE
Material Diaphragm
Color
Ball Color
Santoprene® Green N/A
PTFE White White
NOTE: Radius edge of parts (5 and 6) is against diaphragm.
To Next Page
