Binks 818830 - Cross Section View

Page 11 of 1281883X

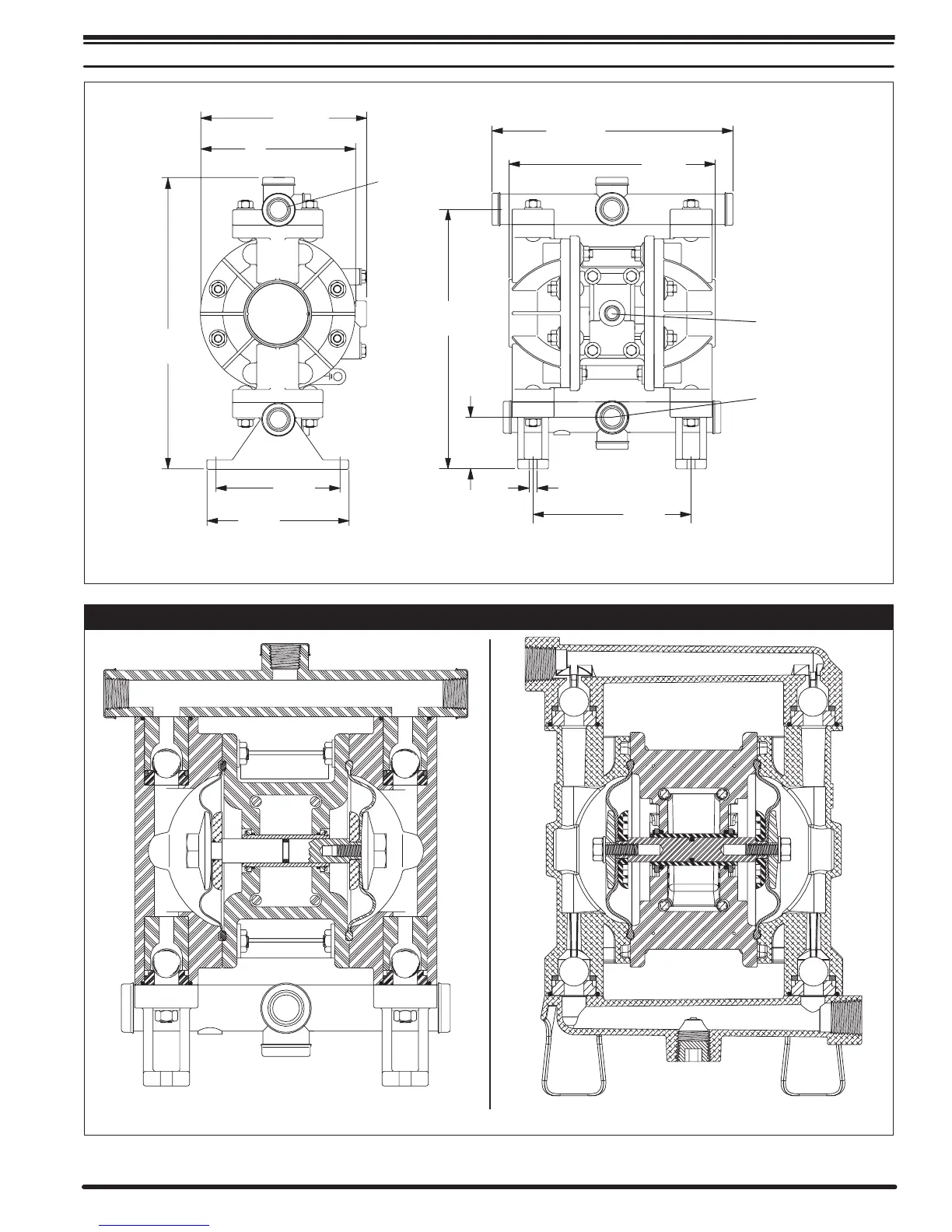

DIMENSIONAL DATA / 818831, 818832, 818833, 818835, 818836
4Ć7/8"
(124 mm)
11Ć5/16"
(288 mm)
6"
(152 mm)
5Ć1/2"
(140 mm)
6Ć7/16"
(164 mm)
Dimensions shown are for reference only, they are shown in inches and millimeters (mm).
10Ć1/16"
(256 mm)
5/16" Slot (8 mm)
7Ć1/2"
(191 mm)
2"
(51 mm)
6Ć1/8"
(156 mm)
Material Outlet
1/2 Ć 14 N.P.T.F. Ć 1
Air Inlet
1/4 Ć 18 N.P.T.
Material Inlet
1/2 Ć 14 N.P.T.F. Ć 1
Figure 7
9Ć11/32"
(237 mm)
CROSS SECTION
Figure 8
818831, 818832, 818833, 818835, 818836 818837, 818838
