EN
3
4
5
Using Item No. 7, push bellows
over spigot until located in
groove.
Smear loctite 572 over nose of
bellows, thread nut onto bellows
ensuring the thread starts
squarely. Grip bellows lightly by
hand and tighten the nut with a
1" A/F spanner until the nut
contacts the bellows shoulder.
Screw Item No. 6 (assembly
spigot) onto the piston shaft
(grease spigot with AMGD-010).

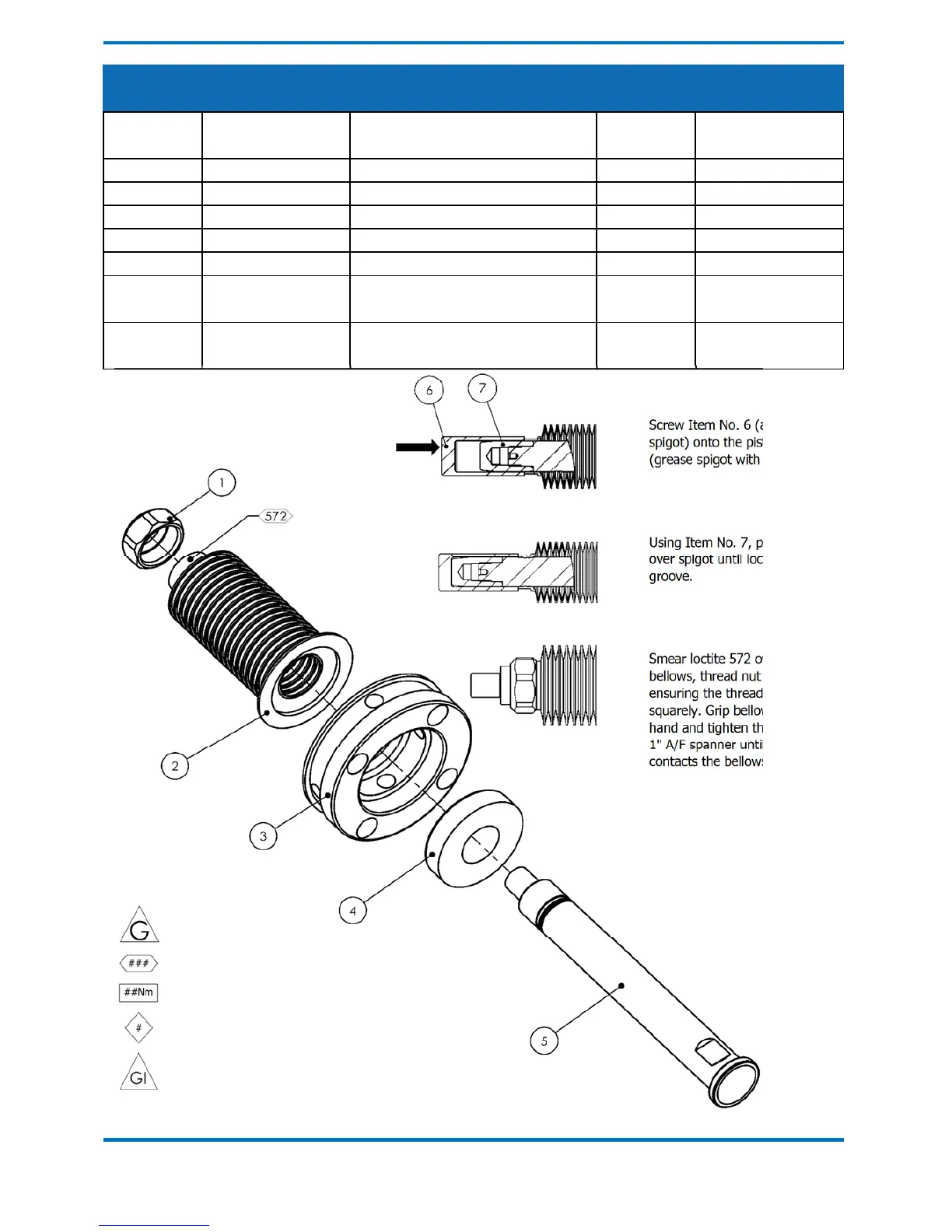

PARTS LIST - Shaft & Bellows Assembly
QTY REMARKS
TOOL
192374
192579
192627
192628
192619
PISTON SHAFT
SHAFT SEAL
BELLOWS SPACER
KNIFED BELLOWS
RETAINING NUT
PART NUMBER DESCRIPTION
TOOL6 502377 BELLOWS POSITIONING TOOL
7 502382 BELLOWS ASSEMBLY SPIGOT
1
2
ITEM
KEY
(Reverse for assembly)
LOCTITE
TORQUE
MAINTENANCE ORDER
GREASE INTERNAL
(AGMD-010)
GREASE
77-3229 R4.1 23/36 www.carlisleft.com
