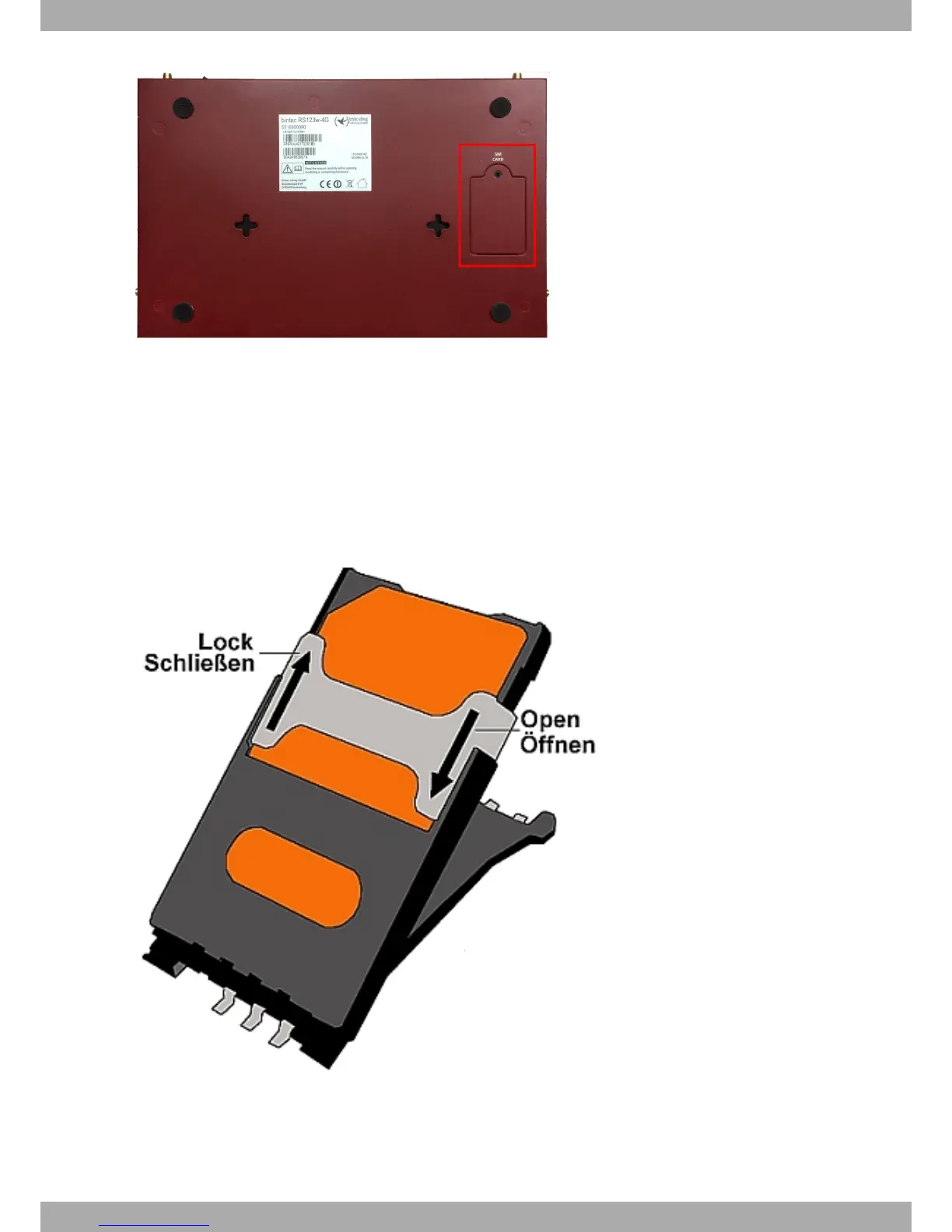

Fig. 16: Internal module SIM tray
Proceed as follows in order to insert the SIM card:
(1) Loosen the screw of the card slot cover on the bottom of the device and remove the cover.
(2) Open the card slot. To do this, push the card lock in the direction of the arrow and lift the card slot slightly.
(3) Make sure that the contacts on the SIM card are facing downwards.
(4) Push the SIM card into the card slot so that the bevelled edge of the card is facing upwards.
(5) Close the card slot. Press the card slot downwards again.
(6) Push the card lock in the direction of the arrow. You will hear a click as the card locks into place.
Fig. 17: Internal SIM try
bintec elmeg
3 Components and Power Supply
RS123 Router 17
