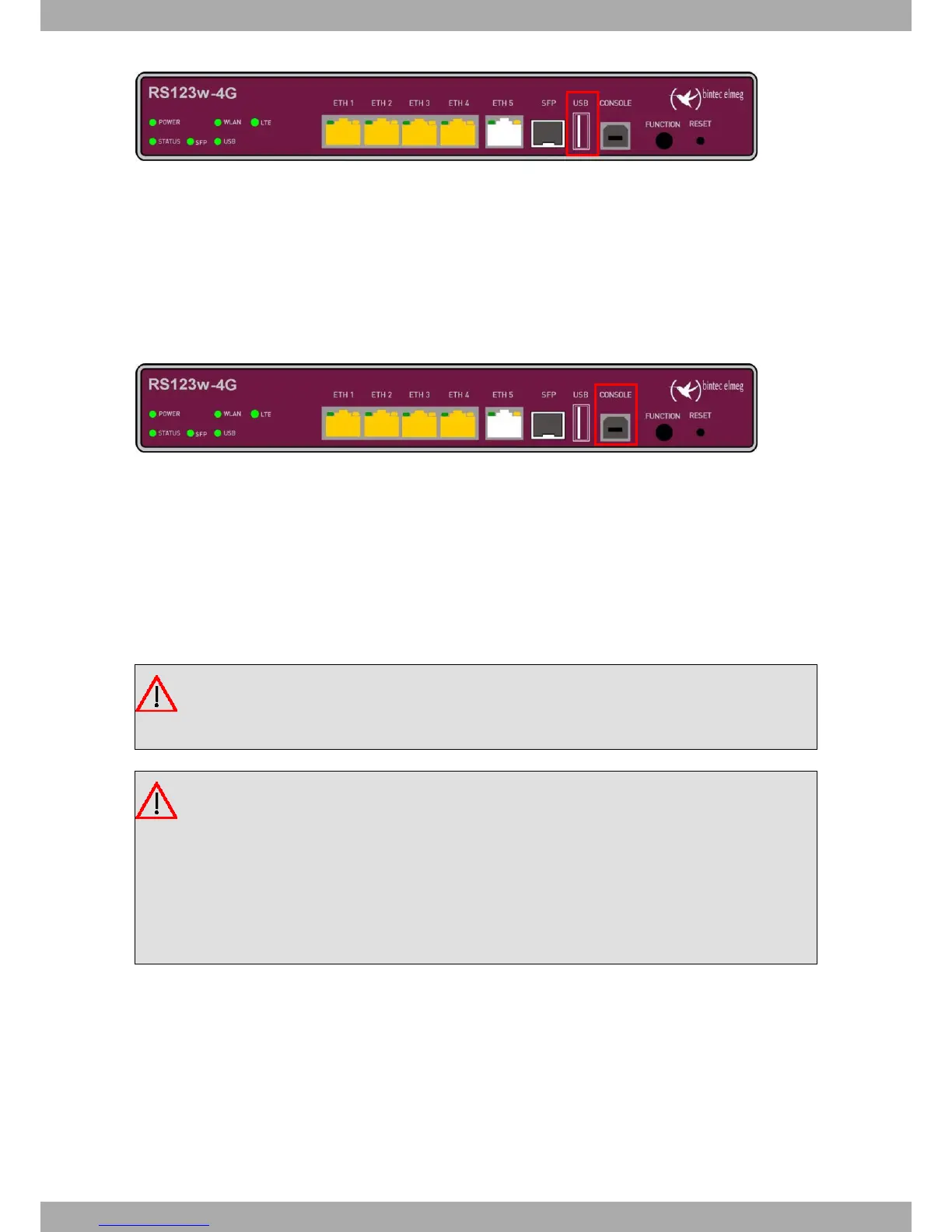

Fig. 14: USB Connector
3.6.6 Connecting for Configuration
The RS123 router has an USB Type B connector on the front panel labeled “Console”, which provides access to the
device local console.
For further information, please see Connecting to the device on page 23.
Fig. 15: CONSOLE Connector
3.7 Installing the SIM card
The RS123 family has a Wireless WAN interface that, in order to operate, may require a SIM card to be inserted into
the device. Certain services (CDMA) provided by several carriers in some countries do not require SIM cards.
The RS123 has one internal SIM try located on the underside of the router.
Warning
This device is compatible with 1.8 V and 3 V SIMs. Do not install SIMs that do not support these
voltages.
Warning
Never install the SIM cards when the device is switched on.
Always disconnect the device from the main power supply before installing the SIM cards.
Always disconnect the device before removing the casing to access the trays.
When inserting the SIM cards, please protect yourself against electrostatic discharges (ESD).
Do not touch the SIM card connectors.
3.7.1 Procedure to install the internal SIM
To access the internal SIM, you need to go to the bottom part of the router, open the flap (shown in the following fig-
ure) and insert the SIM card.
3 Components and Power Supply bintec elmeg
16 RS123 Router
