bintec elmeg RS123 User Manual

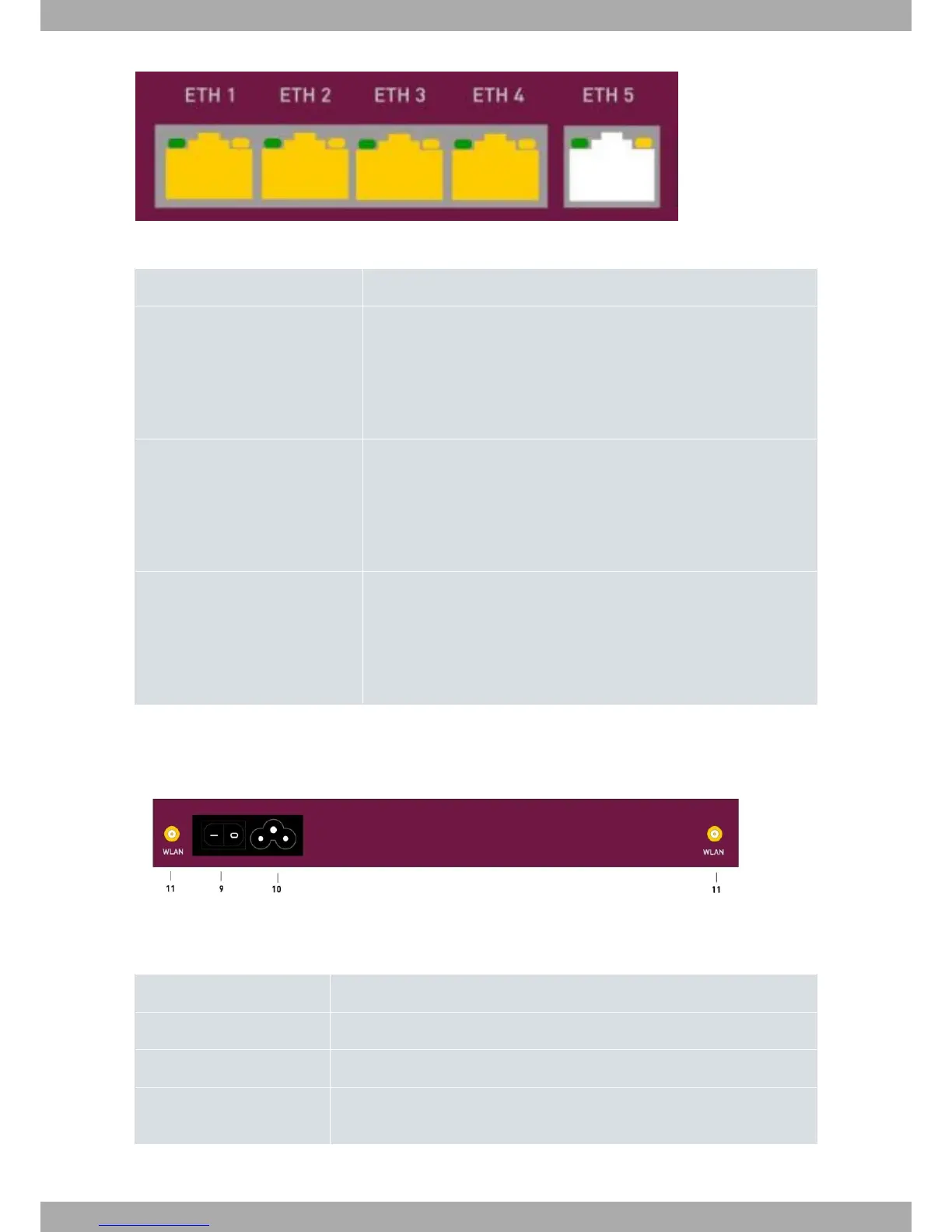

Fig. 4: ETH LEDs
Switch and WAN LED indicator table
LED Description
Yellow OFF -> Interface is either unavailable, not installed or not registered.
ON -> Connected to 10 M:
- Steady: Not transferring data.
- Blinking: Transferring data.
Yellow + Green OFF -> Interface is either unavailable, not installed or not registered
ON -> Connected to 100 M:
- Steady: Not transferring data.
- Blinking: Transferring data.
Green OFF -> Interface is either unavailable, not installed or not registered
ON -> Connected to 1000 M:
- Steady: Not transferring data.
- Blinking: Transferring data.
3.1.2 Rear Panel
The following figure shows the rear panel. Here you will find the majority of the RS123 router family connectors.
Fig. 5: Rear panel
The following table provides information on each connector, as well as a description:
Rear panel elements
Item Description
9 ON/OFF switch
10 Power cable connection.
11 WLAN ANT1and ANT2 antenna connectors. Only RS123w and RS123w-4G
Devices
3 Components and Power Supply bintec elmeg
8 RS123 Router
