Chapter 3 Components and Power Supply
The following chapter provides detailed information on the chassis of the RS123 router family and its components.
This information includes:
• Components.
• Information on assembly.
• Installing and uninstalling modules.
• Power supply.
• RST button.
• Data connection.
• SIM card installation.
3.1 Components
3.1.1 Front Panel

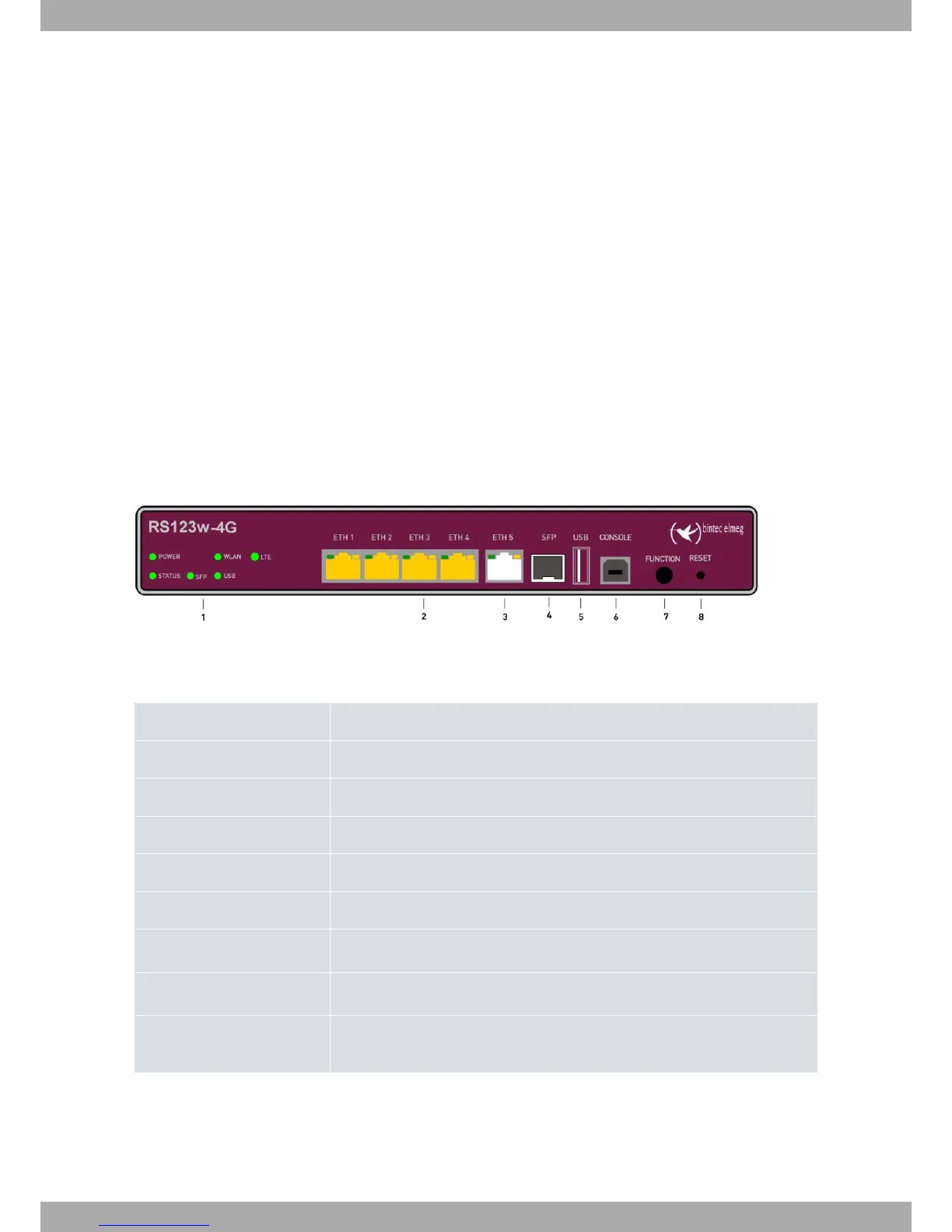

The following figure shows the front panel:
Fig. 2: Frontal Panel
The front panel elements are as follows:
FRONT PANEL ELEMENTS TABLE
Item Description
1 LEDs panel.
2 ETH1 to ETH4. 4-port Gigabit Ethernet Switch.
3 ETH5. WAN Gigabit Ethernet. RJ45 connector.
4 ETH5. WAN Gigabit Ethernet. SFP connector.
5
USB. Slot where you can insert a 3G USB modem.
6
Console. USB connector providing access to the device's local console for config-
uration and monitoring purposes.
7
FUNCTION. WPS (Wireless Protected Setup) button. This allows for easy and se-
cure configuration of the WiFi network parameters.
8
RESET. Reset button. For further information on how the reset button works,
please see RESET Button on page 12.
The LEDs panel provides information on the status of the components (if they are active or not) and on the network
activity.
