ECO Cooling Soluons INSTALLATION GUIDE
ENG
22
>
23
>

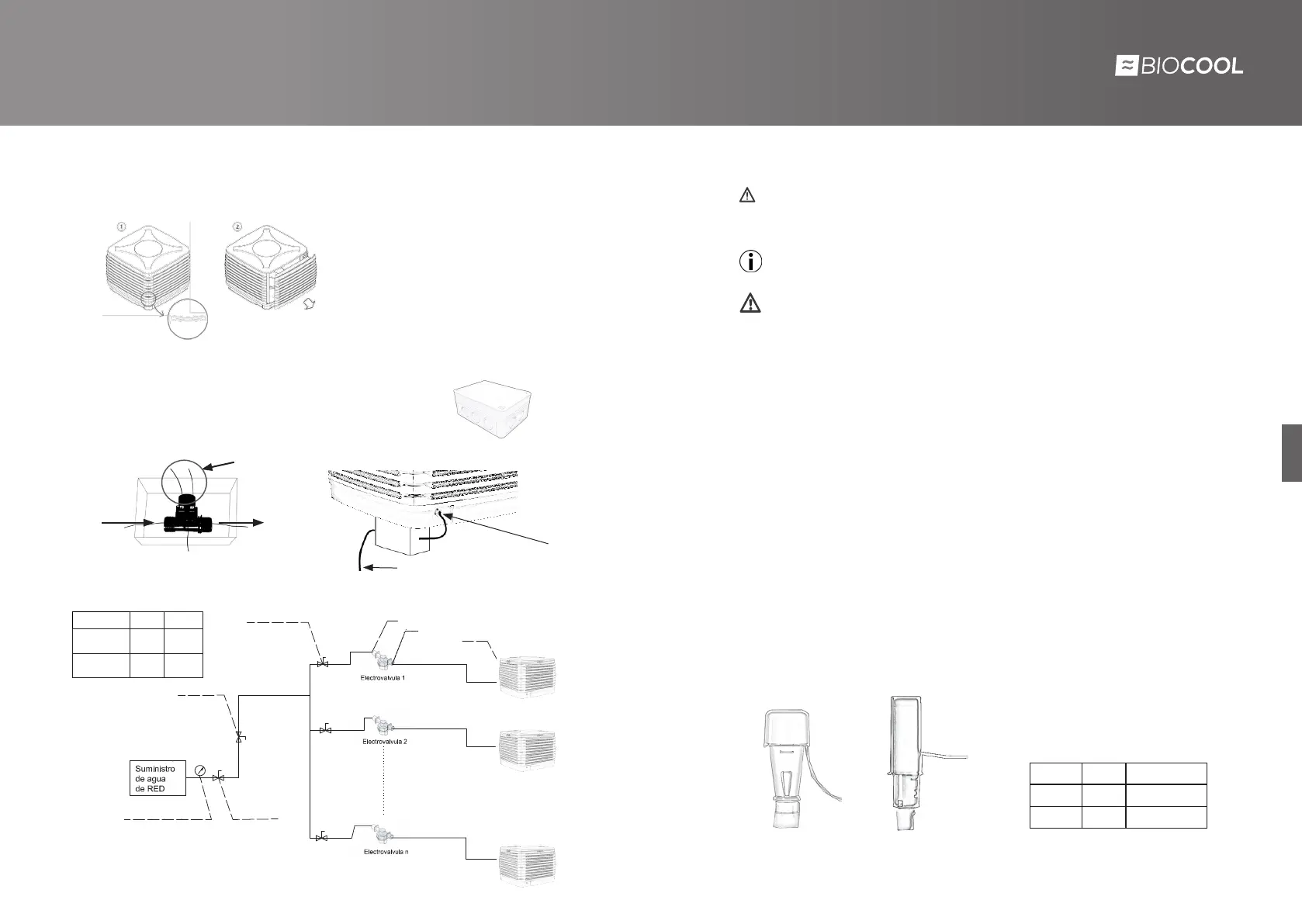

Internals Evaporative Assembly
1. First disengage the 3 side panel
clips
2. Hold the panel with both hands
and pull towards you.
3. Repeat with each of the panels.
Electrovalve
The electrovalve assembly will be on the inside of IP65
protection box, to protect from low temperatures and
prevent damage from freezing.
Electrovalve Connections
1/2 “
´
´
´
*
*
Llave de paso para cada máquina
Llave vaciado
Llave de paso principalLlave de suministro mínima
Entrada a 1/2”
* Electroválvula de
voltaje
pulgadas
24 V
220 V
3/4 “ - 3/4 ”
1/2 “ - 1/2 ”
INTERNAL CONNECTIONS
There will be an installation of a key step for each evaporative unit and in addition
to a key principal step for all the untis installed. You also install an emptying key to
the season closure.
SEE EXAMPLE TYPE SCHEME ANNEX
Drain Valve
Water drained from the drain valve must be carried to the point of appropriate
download in the building or building installation, according to the regulations. It is
recommended that you do not drain the water never directly to the cover.
The drain valve comes from within the evaporative, you will have to put in its
corresponding zone and thread with the cap thread the projecting part of the lower
tank to ensure its stability.
The electrovalve prevents the entry of water when the drainage is open or the
machine is idle.
Once threaded drainage, ensure you drained by gluing a diameter PVC tube 32 mm
and length 1 meter.
Take this tube to the water discharge area or rain cover.
Model mm CAP to 32 mm
BIO 18 48 mm YES
BIO 30 32 mm NO
FOR BIO AND BIO DCVDC
Install the solenoid valve cap in the correct direction according to the position of
the cables, other type of installation can damage the solenoid valve.
Water supply
Water input
Water output
Electronic
power supply
#1
#2
N
MODELS voltage inches
BIO18 axial 24 V 3/4 ” -
3/4 ”
BIO 30
BIO18 centrifugal
220 V 1/2 ” - 1/2 ”
*Solenoid valve of
