biodex 950-214 - 3 Parts and Adjustments

(Refer to Figure 1.)

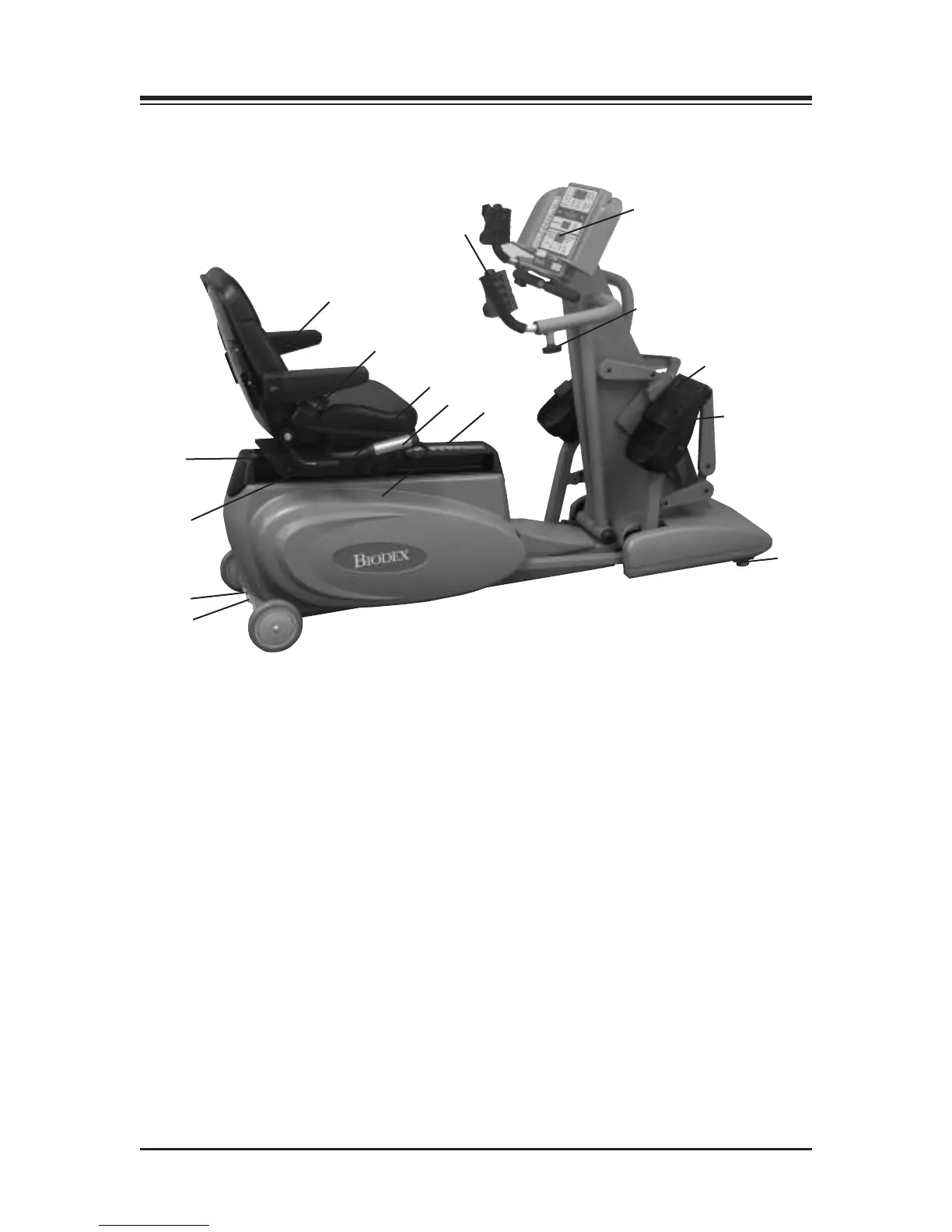

Figure 1: Parts and adjustment mechanisms.
The BioStep and BioStep Clinical Pro includes the following parts and adjustment mechanisms:
1. Display panel
2. Adjustable arms
3. Seat front-to-back release handle
4. Seat front-to-back scale
5. Fixed support handles
6. Rear seat stop
7. Footplate
8. RS-232 Jack
9. Battery recharge jack/AC adapter
10. Leveling guides
11. Heart rate contact handgrips
12. Seat Rotation Handle
Optional Stabilization Kit (Installed by customer):
13. Foot Straps
14. Trunk Belt
15. Arm Rests
16. EZ-Grip™ Handgrips (removable)
