19
2. Plug the Power Cable into the Power Adapter.
3. Plug the Power Cord into the Power Strip, and secure the excess cable with the straps on the Power
Adapter Mount. See Figure 20.

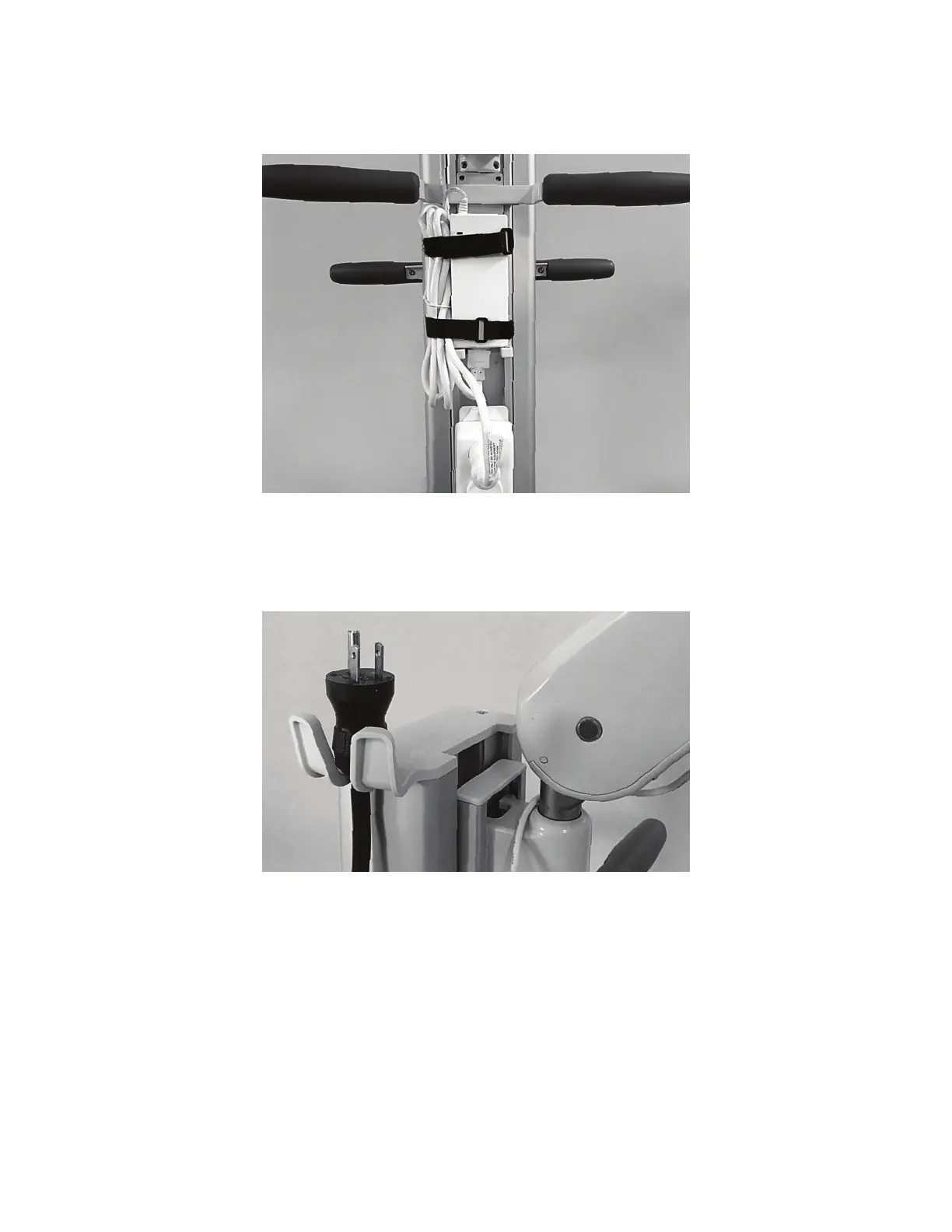

Figure 20: Final Configuration
4. Secure the Coiled Power Cord from the Power Strip on the Power Cord Holder of the Tower. See Figure 21.
Figure 21: Power Cord Holder
