3.3C Fitting the Cuff
a) Select cuff according to arm size:
Cuff size Arm circumference Results
L size
34 - 46 cm
(13.4”-18.1”)
M size
24 - 36 cm
(9.4” - 14.2”)
S size
16 - 26 cm
(6.3” - 10.2”)
Arm Circumference Indicator Artery Mark
Index Line

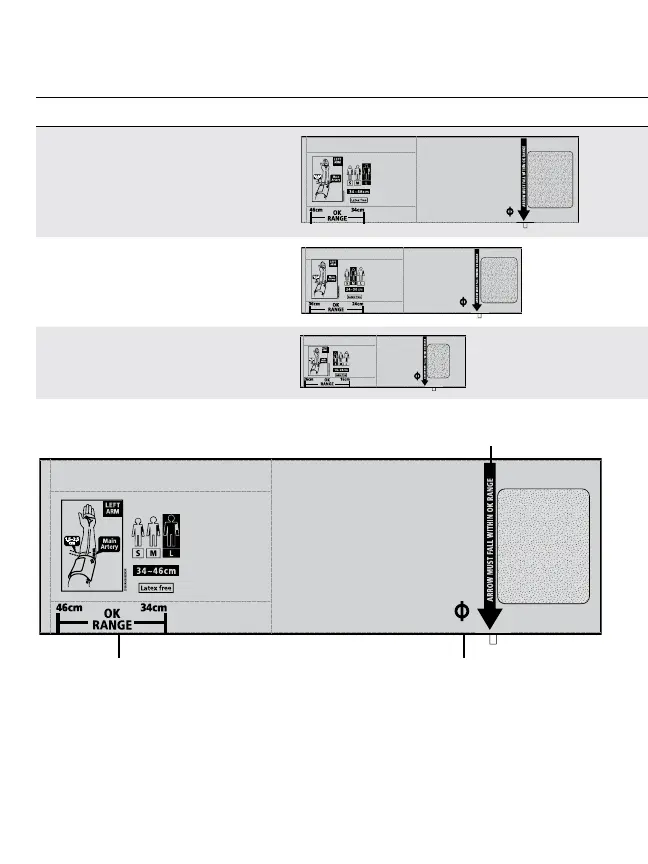

The cuff is suitable for you if the arrow falls within the OK range line. If the arrow falls outside the
OK range line, you will need a cuff with another circumference.
b) Connect the air tube securely.
• Connect the air tube to the main unit by securing the air plug to the base of the air connector.
• Securely connect the air tube and the cuff set by rotating Luer connector.
To Next Page
