8 | 챕터 2: 하드웨어 설치
챕터 2: 하드웨어 설치

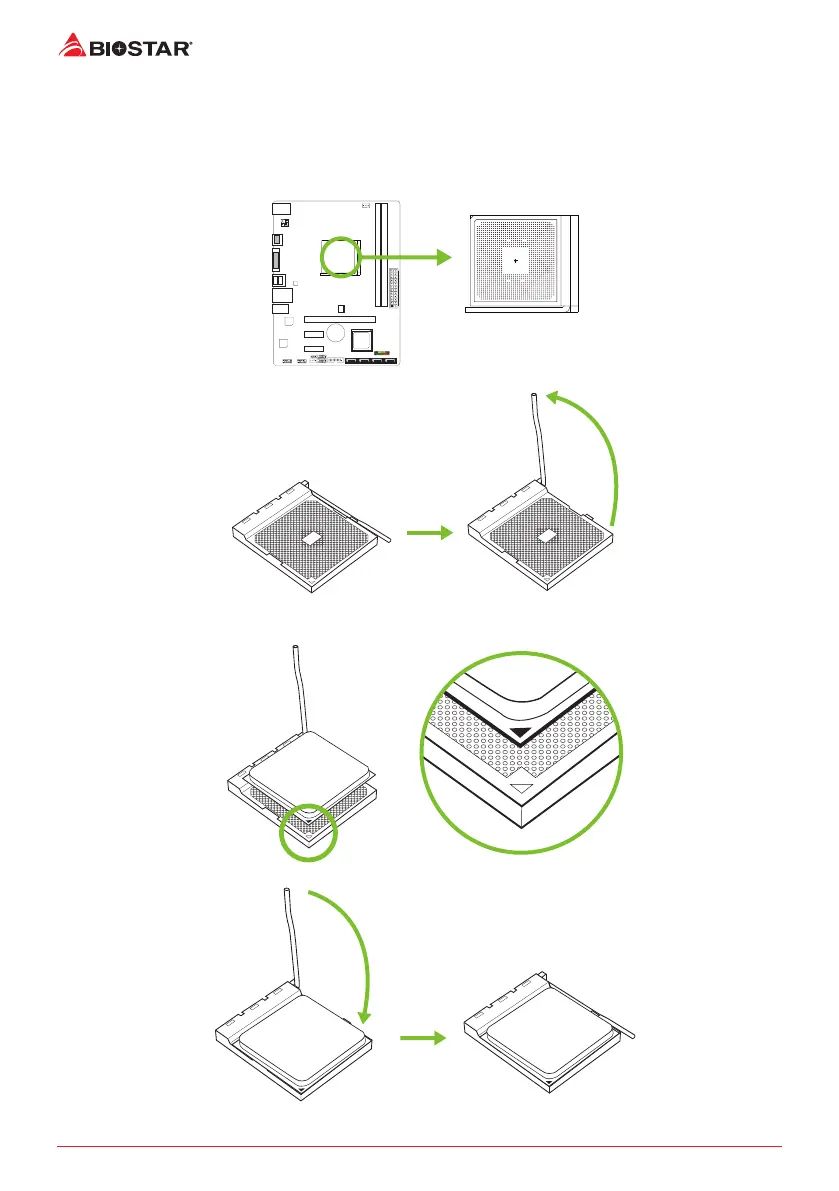

2.1 CPU 설치
단계1:메인 보드의 CPU슬롯을 찾습니다.
단계2:고정 레버를 슬롯으로부터 90도 수평이 될 때까지 들어 올립니다.
단계3:슬롯위의 흰색 삼각형을 찾습니다. CPU의 금색점이 이 흰색 삼각형을
가르키도록 해야 하며 CPU는 반드시 정확한 방향대로 삽입하여야 합니다.
단계4:CPU를 고정시킨 후 레버를 닫습니다.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Biostar A320MH 2.0 and is the answer not in the manual?

Biostar A320MH 2.0 Specifications

General IconGeneral
Form FactorMicro ATX
ChipsetAMD A320
CPU SocketAM4
Memory TypeDDR4
Memory Slots2
Maximum Memory32GB
PCIe Slots1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
LANRealtek RTL8111H Gigabit LAN
SATA Ports4
M.2 Slots1 x M.2
USB Ports6 x USB 2.0
Video OutputsHDMI, VGA
AudioRealtek ALC887 8-Channel HD Audio
