Biostar A68N-2100K User Manual

8 | Chapter 2: Hardware installaon

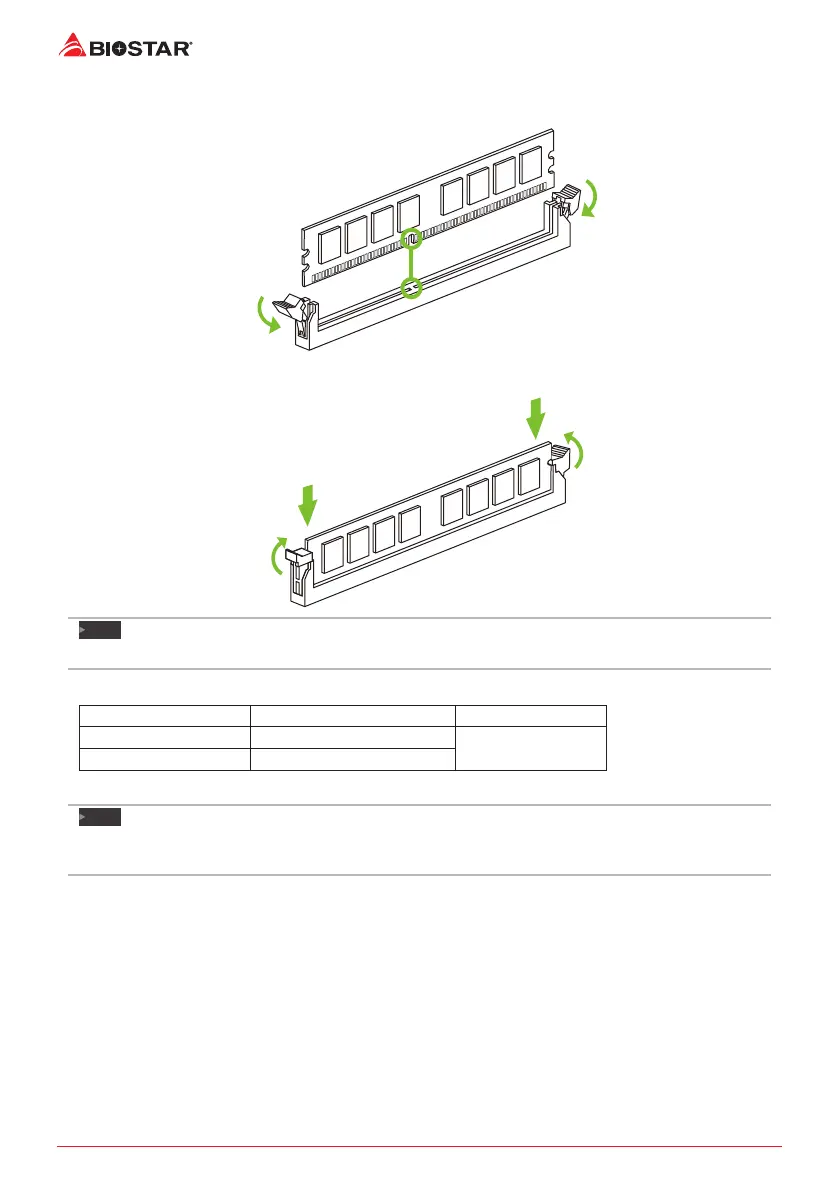

Step 1: Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot
such that the notch on the DIMM matches the break on the slot.
Step 2: Insert the DIMM vercally and rmly into the slot unl the retaining clips snap back in
place and the DIMM is properly seated.
Note
»
 IftheDIMMdoesnotgoinsmoothly,donotforceit.Pullitallthewayoutandtryagain.
Memory Capacity
DIMM Socket Locaon DDR3/ DDR3L Module Total Memory Size
DDR3_A1 512MB/1GB/2GB/4GB/8GB
Max is 16GB.
DDR3_A2 512MB/1GB/2GB/4GB/8GB
Note
»
 Wheninstallingmorethanonememorymodule,werecommendtousethesamebrandand
capacitymemoryonthismotherboard.

Biostar A68N-2100K Specifications

General

Form Factor	Mini ITX
Chipset	AMD A68H
Max Memory	16GB
Audio	Realtek ALC662 6-Channel HD Audio
Video Outputs	1 x HDMI, 1 x VGA
Memory Slots	2
Memory Standard	DDR3 1333/1066
Expansion Slots	1 x PCIe 2.0 x16
Storage	2 x SATA 6Gb/s
LAN	Realtek RTL8111 - 10/100/1000 Mb/s
Rear I/O	2 x USB 3.0, 2 x USB 2.0, 1 x HDMI, 1 x VGA, 1 x LAN (RJ45), 3 x Audio Jacks
Power Connector	24-pin ATX
Graphics	Integrated AMD Radeon HD 8000/7000 Series
