Biostar A68N-2100K User Manual

Chapter 2: Hardware installaon | 9
A68N-2100E / A68N-2100K / A68N-2100X / A68N-5600E
2.3 Expansion Slots

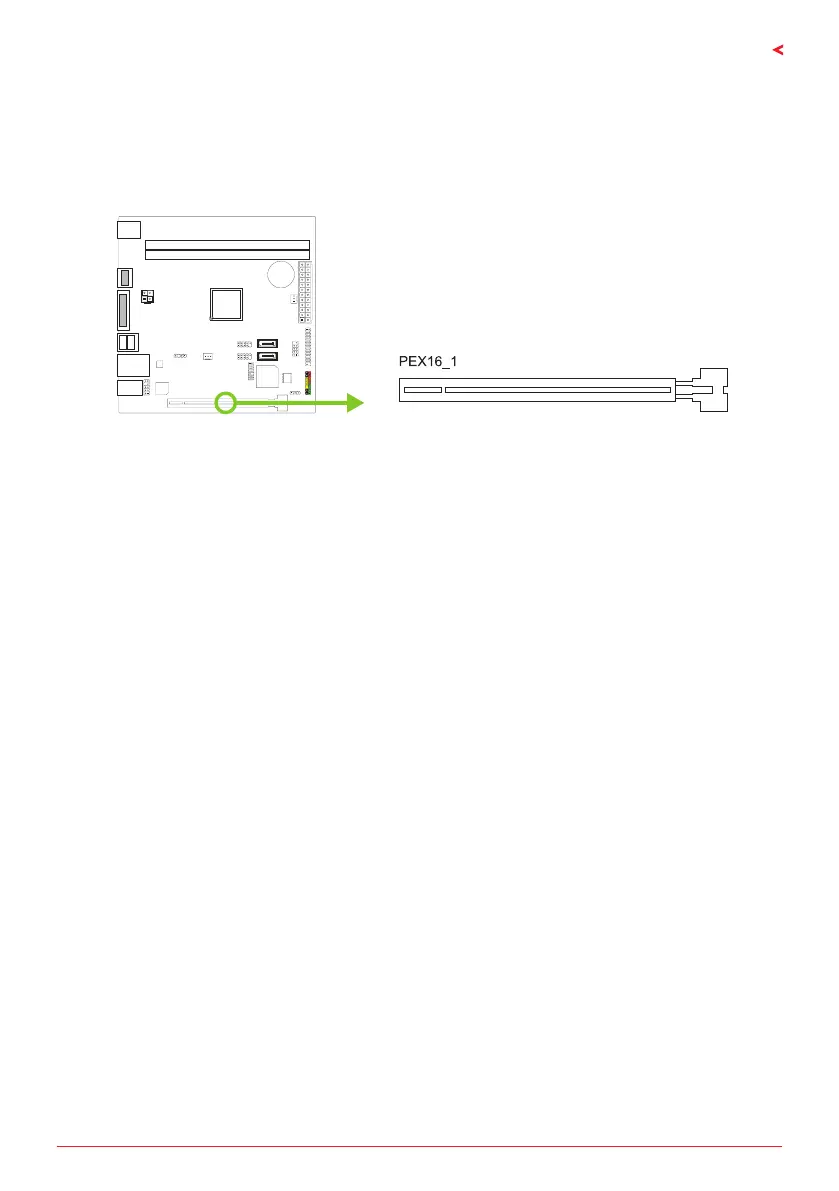

PEX16_1: PCI-Express Gen2 x16 Slot (x4 speed)
• PCI-Express 2.0 compliant.
• Theorecal maximum bandwidth using two slots simultaneously is 2GB/s for each slot, a
total of 4GB/s.
Install an Expansion Card
You can install your expansion card by following steps:
• Read the related expansion card’s instrucon document before install the expansion
card into the computer.
• Remove your computer’s chassis cover, screws and slot bracket from the computer.
• Place a card in the expansion slot and press down on the card unl it is completely
seated in the slot.
• Secure the card’s metal bracket to the chassis back panel with a screw.
• Replace your computer’s chassis cover.
• Power on the computer, if necessary, change BIOS sengs for the expansion card.
• Install related driver for the expansion card.

Biostar A68N-2100K Specifications

General

Form Factor	Mini ITX
Chipset	AMD A68H
Max Memory	16GB
Audio	Realtek ALC662 6-Channel HD Audio
Video Outputs	1 x HDMI, 1 x VGA
Memory Slots	2
Memory Standard	DDR3 1333/1066
Expansion Slots	1 x PCIe 2.0 x16
Storage	2 x SATA 6Gb/s
LAN	Realtek RTL8111 - 10/100/1000 Mb/s
Rear I/O	2 x USB 3.0, 2 x USB 2.0, 1 x HDMI, 1 x VGA, 1 x LAN (RJ45), 3 x Audio Jacks
Power Connector	24-pin ATX
Graphics	Integrated AMD Radeon HD 8000/7000 Series
