Biostar A68N-2100K User Manual

Chapter 2: Hardware installaon | 7
A68N-2100E / A68N-2100K / A68N-2100X / A68N-5600E
Chapter 2: Hardware installaon

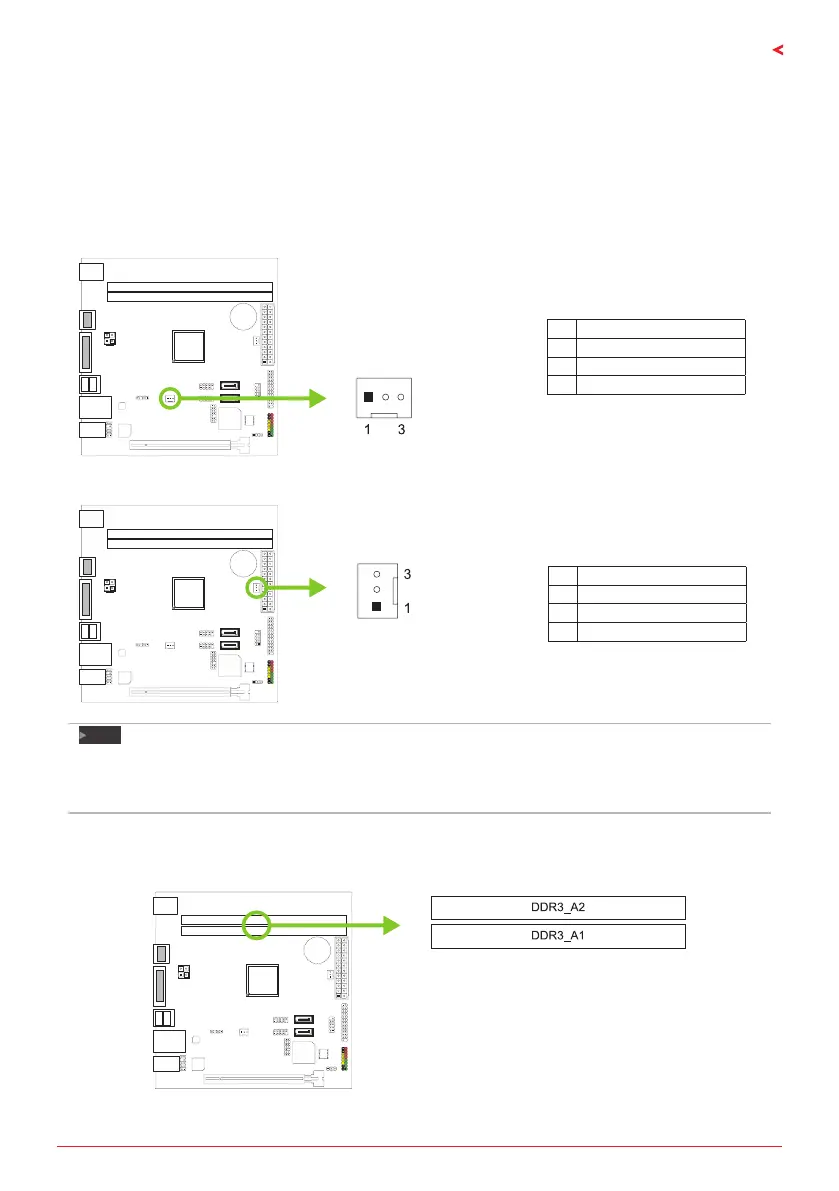

2.1 Connect Cooling Fans
These fan headers support cooling-fans built in the computer. The fan cable and connector
may be dierent according to the fan manufacturer.
CPU_FAN1: CPU Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
SYS_FAN1: System Fan Header
Pin Assignment
1 Ground
2 Linear FAN Control
3 FAN RPM rate sense
Note
»
 CPU_FAN1,SYS_FAN1support3-pinheadconnectors.Whenconnecngwithwiresontoconnectors,
pleasenotethattheredwireistheposiveandshouldbeconnectedtopin#2,andtheblackwireis
Groundandshouldbeconnectedtopin#1(GND).
2.2 Install System Memory
DDR3/ DDR3L Modules

Biostar A68N-2100K Specifications

General

Form Factor	Mini ITX
Chipset	AMD A68H
Max Memory	16GB
Audio	Realtek ALC662 6-Channel HD Audio
Video Outputs	1 x HDMI, 1 x VGA
Memory Slots	2
Memory Standard	DDR3 1333/1066
Expansion Slots	1 x PCIe 2.0 x16
Storage	2 x SATA 6Gb/s
LAN	Realtek RTL8111 - 10/100/1000 Mb/s
Rear I/O	2 x USB 3.0, 2 x USB 2.0, 1 x HDMI, 1 x VGA, 1 x LAN (RJ45), 3 x Audio Jacks
Power Connector	24-pin ATX
Graphics	Integrated AMD Radeon HD 8000/7000 Series
