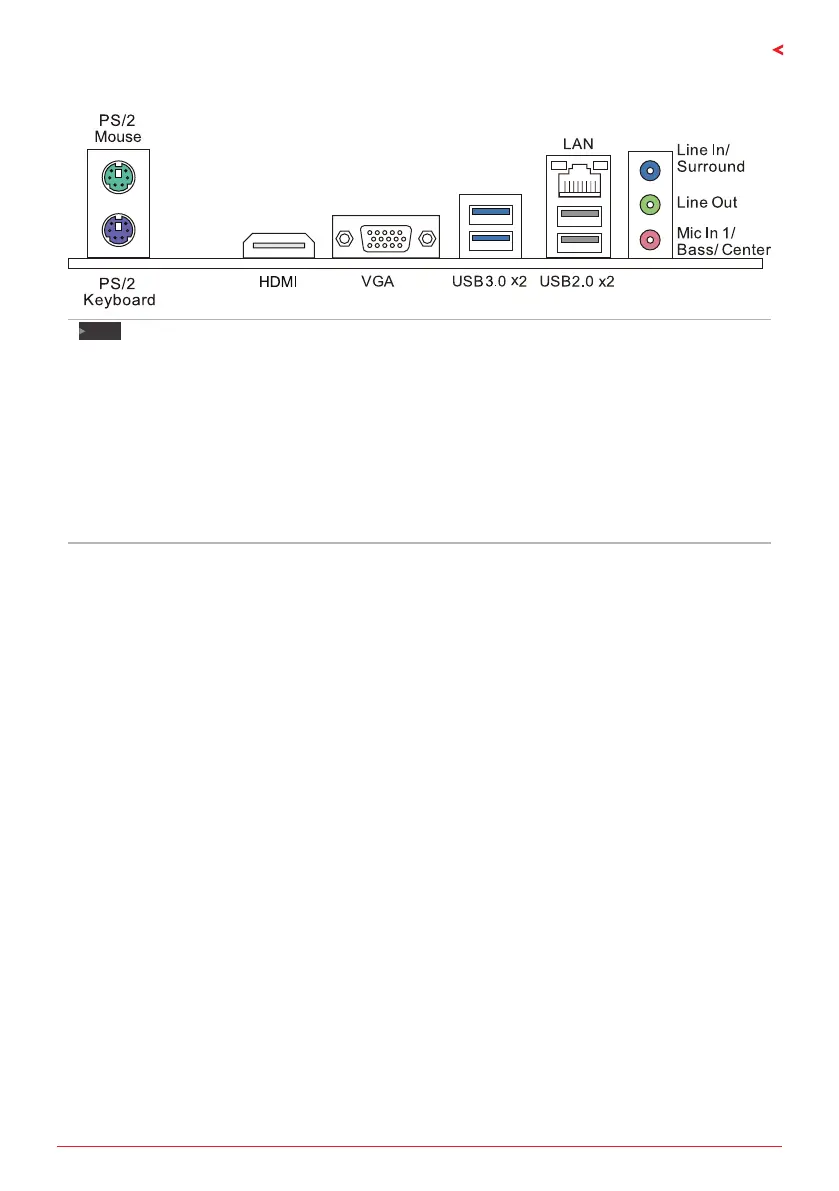

1�4 Rear Panel Connectors
Note

»
HDMI/VGAoutputrequireanAMDfamilyprocessorwithintedratedgraphics.

»
SincetheaudiochipsupportsHighDenionAudioSpecicaon,thefunconofeachaudiojack
canbedenedbysoware.Theinput/outputfunconofeachaudiojacklistedaboverepresents
thedefaultseng.However,whenconnecngexternalmicrophonetotheaudioport,pleaseuse
theLineIn(Blue)andMicIn(Pink)audiojack.

»
Maximumresoluon
HDMI:1920x1080@60Hz/1920x1200@60Hz,compliantwithHDMI1.4a
VGA:1920x1200@60Hz

»
WhenusingthefrontHDaudiojackandplugintheheadset,therearsoundwillbeautomacally
Disabled.
