第二章: 硬件安装 | 7
A68N-5745 / A68N-5545 / A68N-5600
第二章: 硬件安装

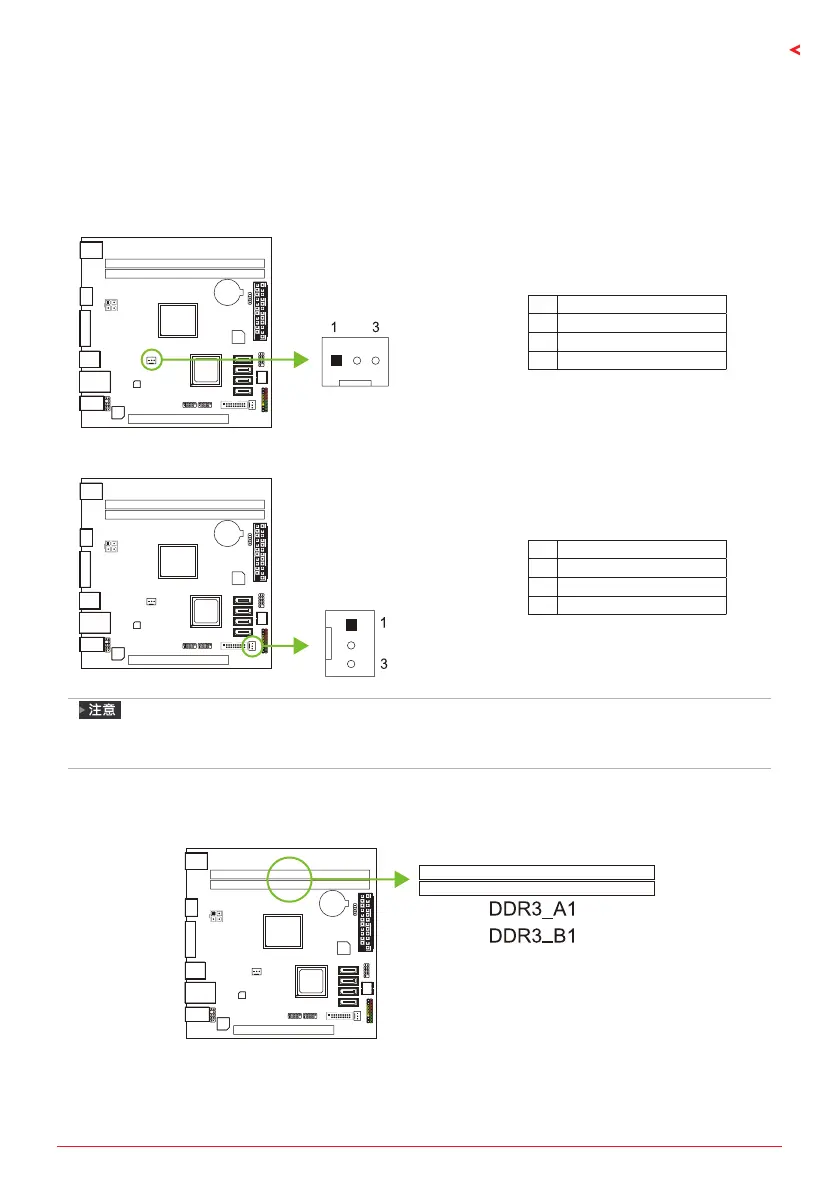

2�1 风扇接头
此风扇接头支持电脑内置的冷却风扇，风扇引线和插头可能因制造商而异。
CPU_FAN: CPU 风扇接头 (智能CPU 风扇转速控制)
针 定义
1 接地
2 +12V
3 FAN RPM rate sense
SYS_FAN: 系统风扇接头
针 定义
1 接地
2 +12V
3 FAN RPM rate sense
»
CPU_FAN、SYS_FAN支持3针脚接口；接线时请注意红线是正极需接到第二个针脚，黑线接地需
接到GND针脚。
2�2 系统内存
DDR3内存模组
