第二章: 硬件安装 | 11
A68N-5745 / A68N-5545 / A68N-5600
2�5 接口和插槽

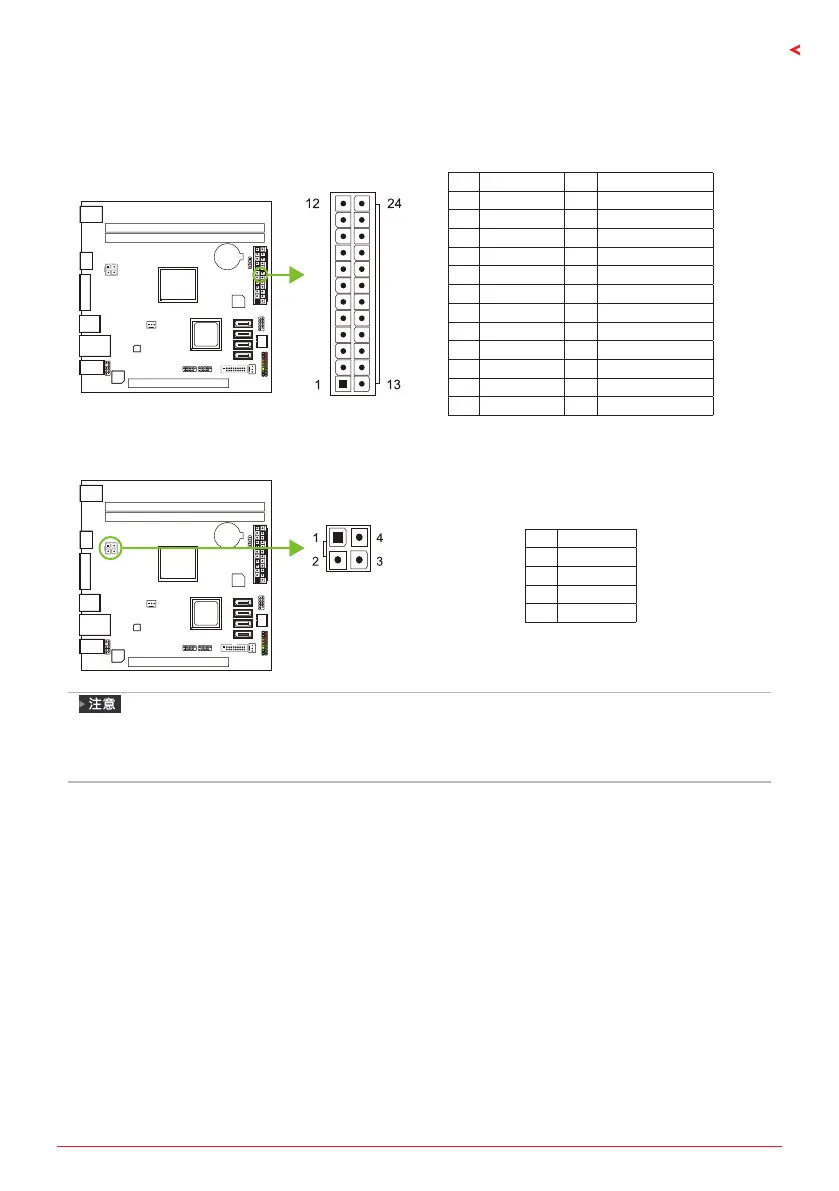

ATXPWR1: ATX电源接口
为了更好的兼容性,我们建议使用标准的ATX24-pin电源供应此接口的电源。
定义 定义
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 接地 3 接地
16 PS_ON 4 +5V
17 接地 5 接地
18 接地 6 +5V
19 接地 7 接地
20 NC 8 PW_OK
21 +5V 9 唤醒电压+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 接地 12 +3.3V
ATXPWR2: ATX电源接口
此接口给CPU电路提供+12V电压。
定义
1 +12V
2 +12V
3 接地
4 接地
»
ATXPWR1ATXPWR2口都上电
»
电压不足可能导致系统不稳或者外围设备不能正常运当配置使用大功率设备的系统时建议
使 源。
