Biostar A68N-5745 User Manual

Chapter 2: Hardware installaon | 9
A68N-5745 / A68N-5545 / A68N-5600
2.3 Expansion Slots

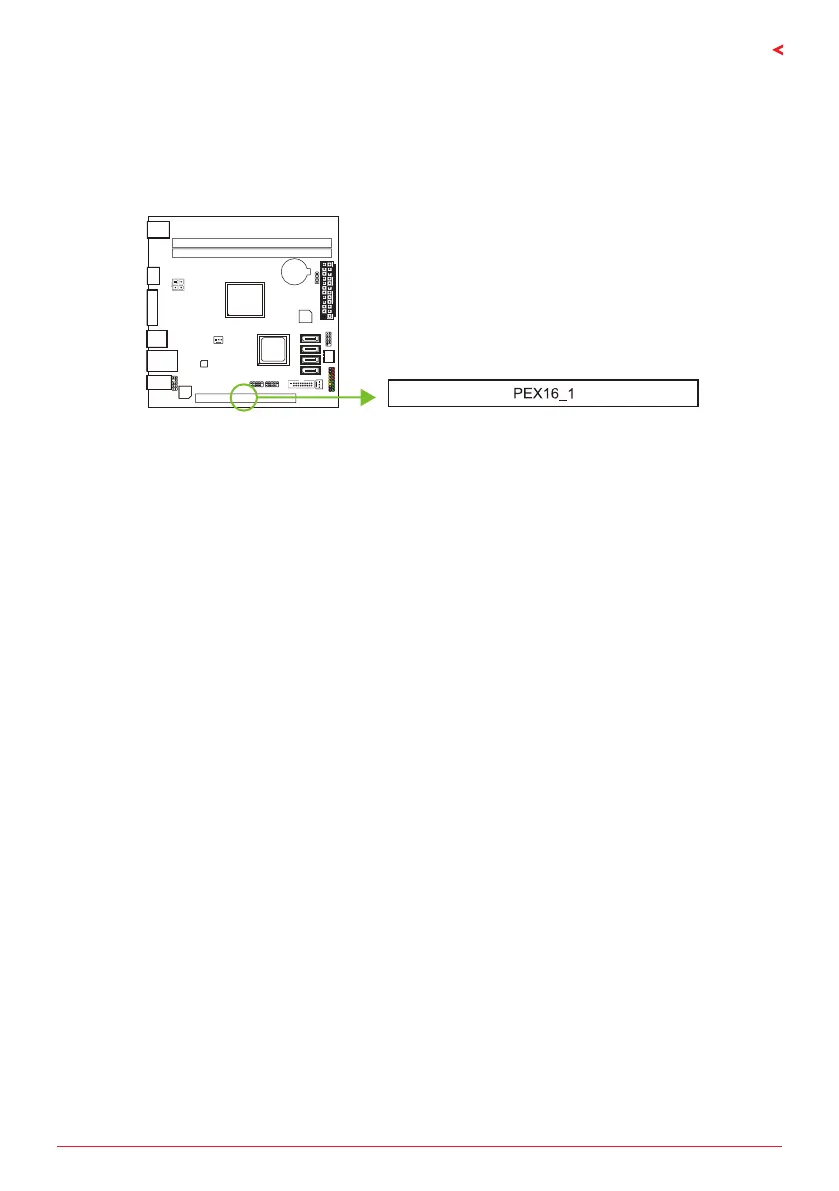

PEX16_1: PCI-Express Gen2 x16 Slot
• PCI-Express 2.0 compliant.
• Theorecal maximum bandwidth using two slots simultaneously is 8GB/s for each slot, a
total of 16GB/s.
Install an Expansion Card
You can install your expansion card by following steps:
• Read the related expansion card’s instrucon document before install the expansion
card into the computer.
• Remove your computer’s chassis cover, screws and slot bracket from the computer.
• Place a card in the expansion slot and press down on the card unl it is completely
seated in the slot.
• Secure the card’s metal bracket to the chassis back panel with a screw.
• Replace your computer’s chassis cover.
• Power on the computer, if necessary, change BIOS sengs for the expansion card.
• Install related driver for the expansion card.
