Chapter 2: Hardware installaon | 13
B450GT3

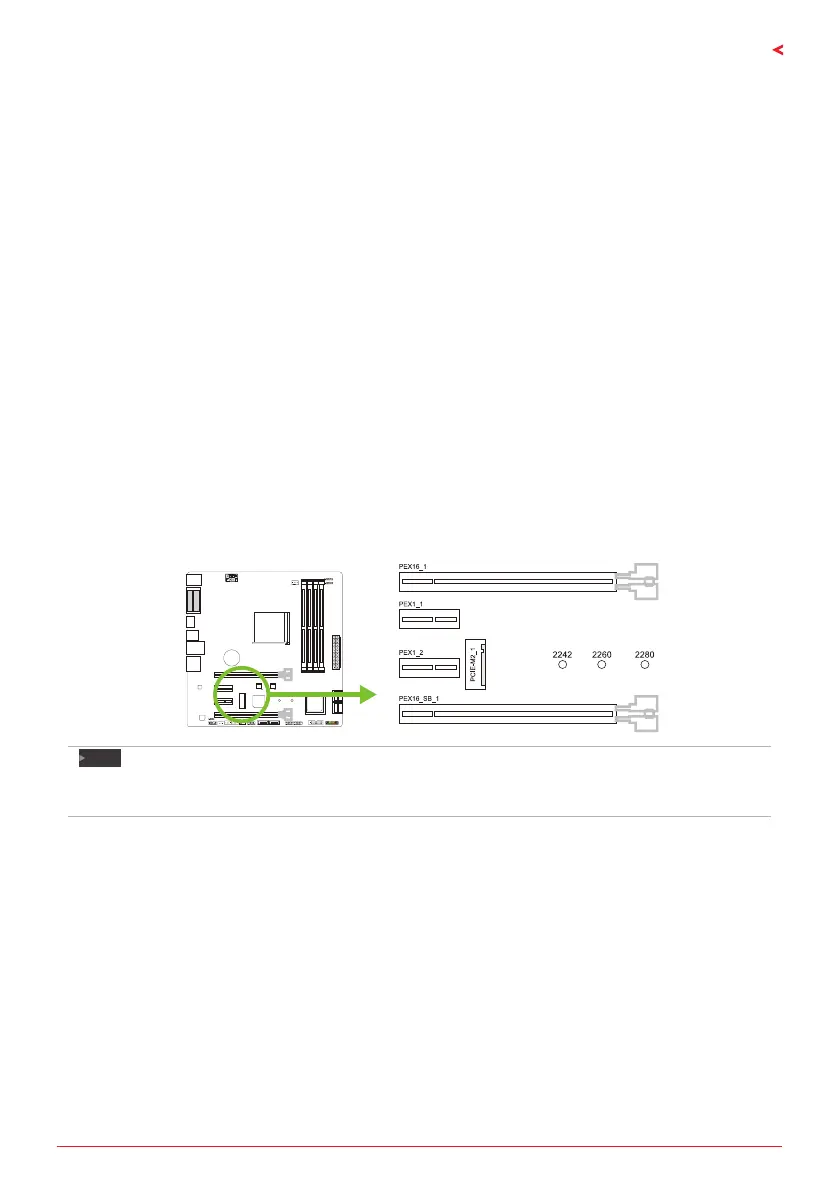

2.5 Expansion Slots
PEX16_1: PCI-Express Gen3 x16 Slot (x16 speed)
(When using APU, the bandwidth is x8 speed)
•  PCI-Express 3.0 compliant.
•  Theorecal maximum bandwidth using two slots simultaneously is 16GB/s for each slot,
a total of 32GB/s.
PEX16_SB_1: PCI-Express Gen2 x16 Slot (x4 speed)
•  PCI-Express 2.0 compliant.
•  Theorecal maximum bandwidth using two slots simultaneously is 2GB/s for each slot, a
total of 4GB/s.
PEX1_1/1_2: PCI-Express Gen2 x1 Slot
•  PCI-Express 2.0 compliant.
•  Data transfer bandwidth up to 500MB/s per direcon; 1GB/s in total.
PCIE-M2_1: M.2 (Key M) Slot
(The bandwidth is depended on CPU, Ryzen is 32Gb/s ; APU is 16Gb/s)
•  The M.2 slot supports M.2 Type 2242/2260/2280 SSD module. When installing M.2 SSD
module, please place the screw and hex pillar to correct posion.
•  Support M.2 SATA III (6.0 Gb/s) module and M.2 PCI Express module up to Gen3 x4
(32Gb/s).
Note
»
  WhenPEX1_1/PEX1_2slotisoccupied,thePEX16_SB_1connectorisx2speed.
 
»
WhenPCIE-M2_1slotisoccupied,theSATA3_1/SATA3_2connectorwillbedisabled.
Install an Expansion Card
You can install your expansion card by following steps:
•  Read the related expansion card’s instrucon document before install the expansion
card into the computer.
•  Remove your computers chassis cover, screws and slot bracket from the computer.
•  Place a card in the expansion slot and press down on the card unl it is completely
seated in the slot.
•  Secure the cards metal bracket to the chassis back panel with a screw.
•  Replace your computers chassis cover.
•  Power on the computer, if necessary, change BIOS sengs for the expansion card.
•  Install related driver for the expansion card.
