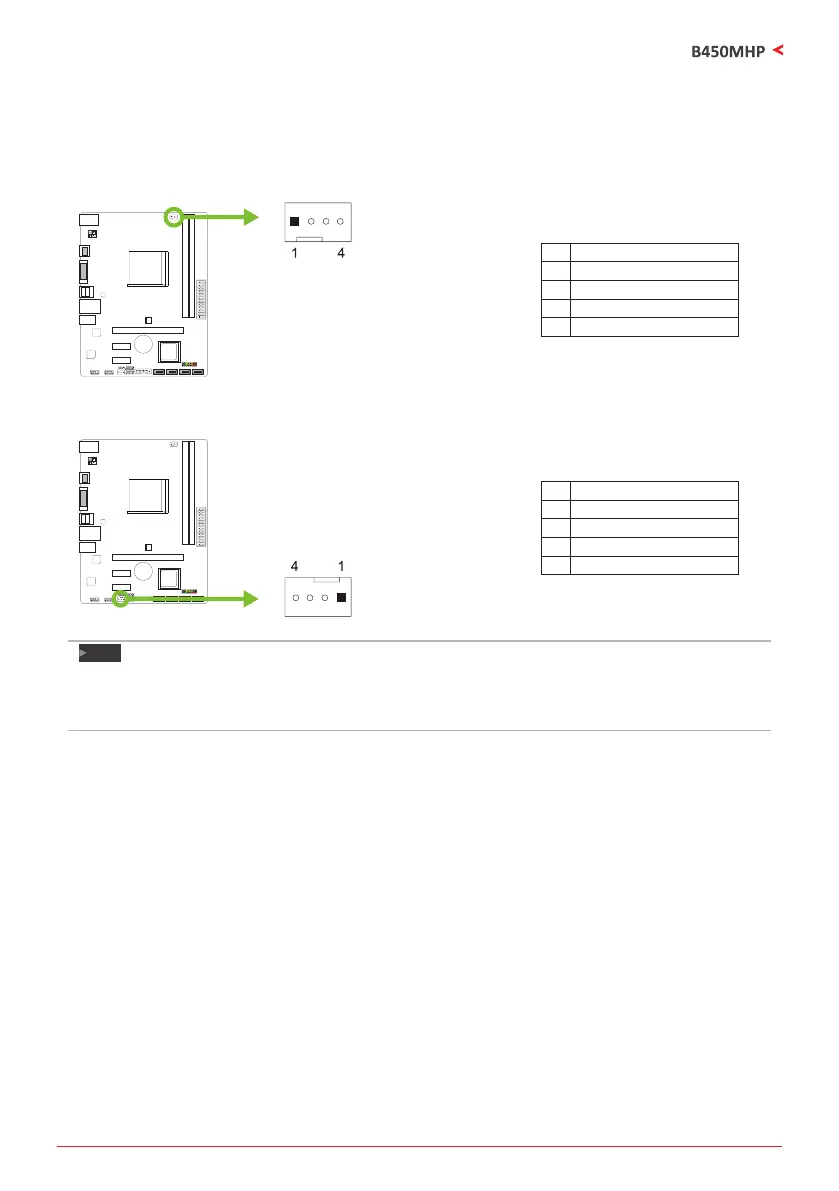

2.3 Connect Cooling Fans
These fan headers support cooling-fans built in the computer. The fan cable and connector
may be dierent according to the fan manufacturer.
CPU_FAN: CPU Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
4 AI Fan Control (By Fan)
SYS_FAN1: System Fan Header
Pin Assignment
1 Ground
2 +12V
3 FAN RPM rate sense
4 AI Fan Control (By Fan)
Note
»
»
CPU_FAN, SYS_FAN1 support 4-pin and 3-pin head connectors. When connecng with wires onto
connectors, please note that the red wire is the posive and should be connected to pin#2, and the
black wire is Ground and should be connected to pin#1(GND).

Biostar B450MHP Specifications

General

Form Factor	Micro ATX
Chipset	AMD B450
Socket	AM4
Memory Slots	2 x DIMM
Max Memory	32GB
PCIe Slots	1 x PCIe 3.0 x16, 1 x PCIe 2.0 x1
Storage	4 x SATA III, 1 x M.2
LAN	Realtek RTL8111H
Video Outputs	1 x HDMI
Memory Speed	DDR4 3200+(OC)/ 2933/ 2667/ 2400/ 2133 MHz
