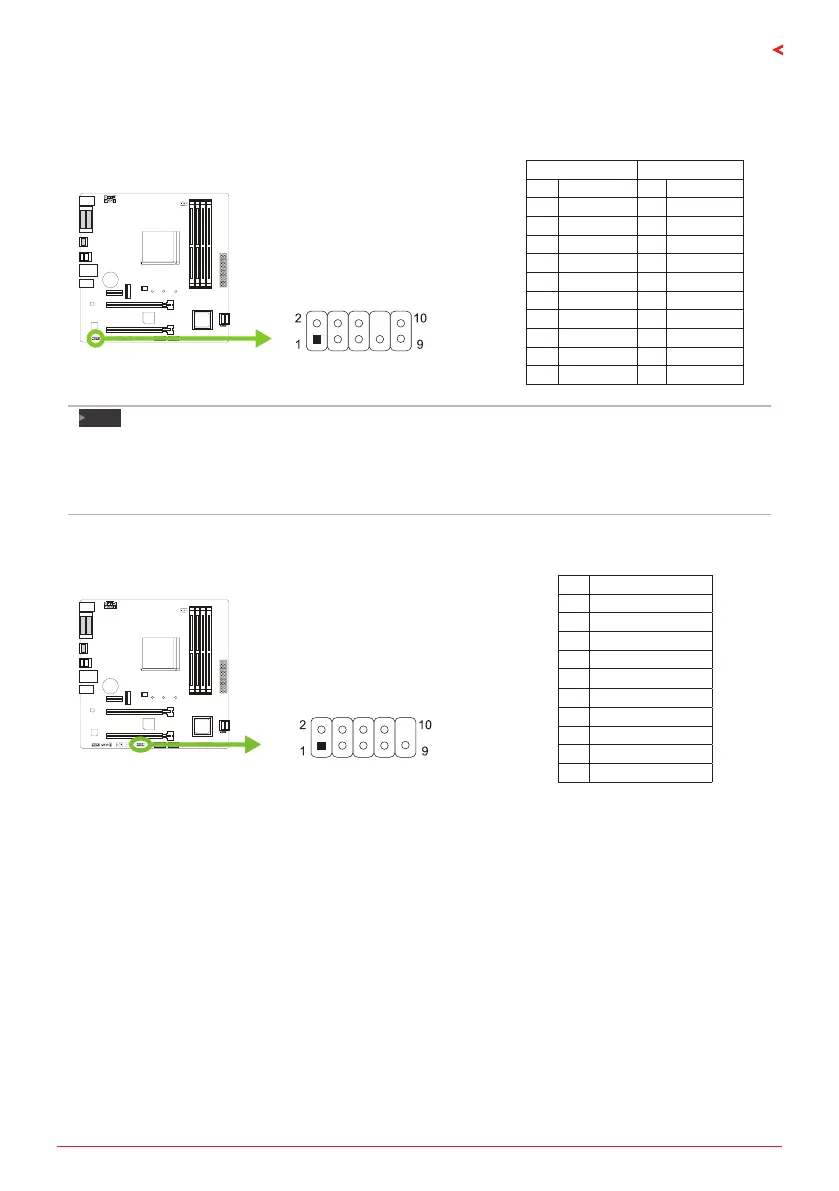

Chapter 2: Hardware installaon | 17

B450MX / B450MX-S

F_AUDIO1: Front Panel Audio Header

This header allows user to connect the chassis-mount front panel audio I/O which supports HD

and AC’97 audio standards.

HD Audio AC’97

Pin Assignment Pin Assignment

1 Mic Le in 1 Mic In

2 Ground 2 Ground

3 Mic Right in 3 Mic Power

4 GPIO 4 Audio Power

5 Right line in 5 RT Line Out

6 Jack Sense 6 RT Line Out

7 Front Sense 7 Reserved

8 Key 8 Key

9 Le line in 9 LFT Line Out

10 Jack Sense 10 LFT Line Out

Note

 Itisrecommendedthatyouconnectahigh-denionfrontpanelaudiomoduletothisconnectorto

availofthemotherboard’shighdenionaudiocapability.

 Pleasetrytodisablethe“FrontPanelJackDetecon”ifyouwanttouseanAC’97frontaudiooutput

cable.ThefunconcanbefoundviaO.S.AudioUlity.

J_COM1: Serial Port Connector

The motherboard has a serial port header for connecng RS-232 Port.

Pin Assignment

1 Carrier detect

2 Received data

3 Transmied data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

10 Key

Questions and Answers:

Need help?

Do you have a question about the Biostar B450MX-S and is the answer not in the manual?

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Athlon, AMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Audio chip	Realtek ALC887
Component for	PC
Motherboard chipset	AMD B450
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	1866, 2133, 2400, 2667, 2933, 3200, 3600, 4000, 4066, 4133, 4200, 4266, 4333 MHz
RAID levels	0, 1, 10
RAID support	Yes
Supported storage drive types	HDD
Supported storage drive interfaces	M.2, SATA III
DirectX version	12.0
Parallel processing technology support	-
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI AMI
