12 | 第二章: 硬體安裝

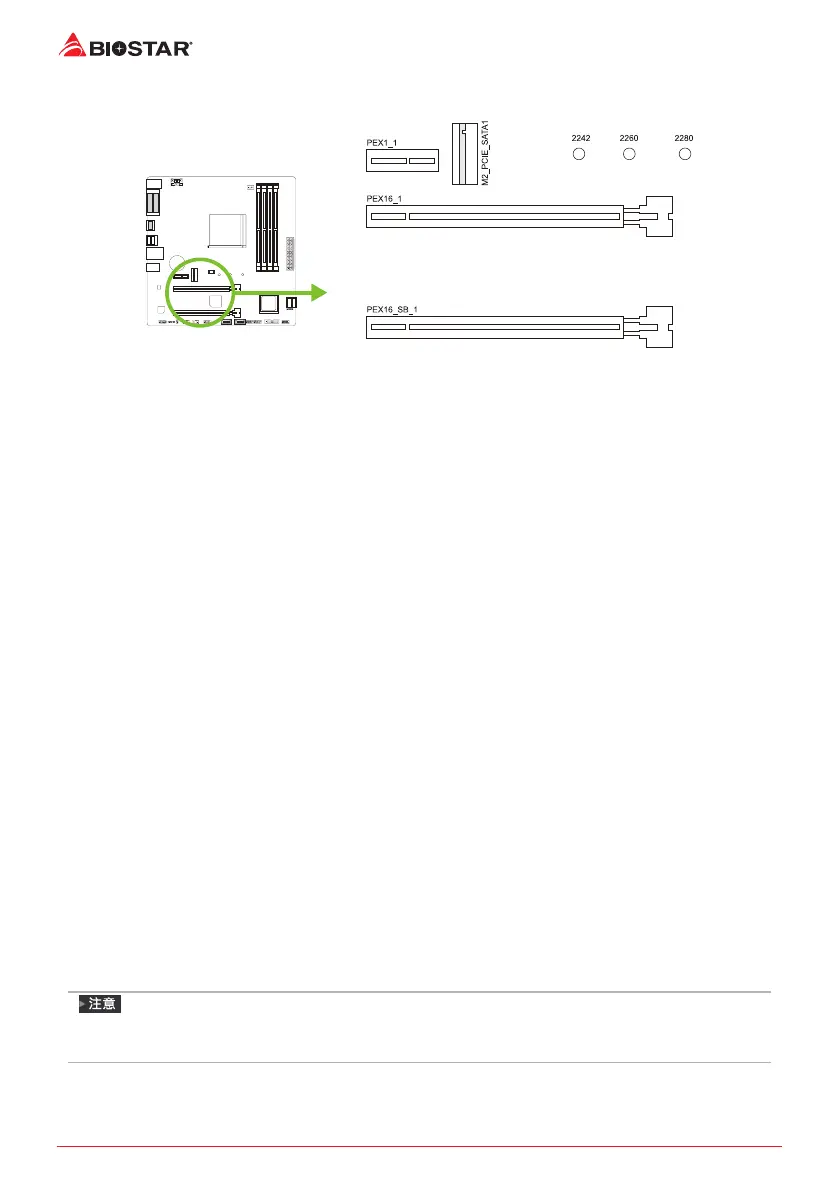

2.5 擴充插槽
PEX16_1: PCI-Express Gen3 x16 插槽
合PCI-Express 3.0規範
最大帶寬總為32GB/s
AMD
®
Ryzen處理器支援PCIe 3.0 x16 mode
AMD
®
Ryzen™搭載Radeon Vega Graphics處理器支援PCIe 3.0 x8 mode
PEX16_SB_1: PCI-Express Gen2 x16 插槽 (x4 通道)
合PCI-Express 2.0規範
最大帶寬總為4GB/s
PEX1_1: PCI-Express Gen2 x1 插槽
合PCI-Express 2.0規範
每個資料傳輸頻寬高達500MB/s; 總頻寬為1GB/s
M2_PCIE_SATA1: M.2 (M Key) 插槽 (頻寬取決於CPU,Ryzen為32Gb/s ;
APU為16Gb/s)
M.2插槽支援2242/2260/2280類型SSD模組, 安裝M.2模組前請將六角柱放到正確
的位置。
援M.2 PCI Express Gen3 x4模組 (32Gb/s) - NVMe/ AHCI SSD
援M.2 SATA III (6.0 Gb/s)模組
安裝擴充卡
請參照以下步驟安裝擴充卡:
安裝充卡前請閱充卡的相關指
打開電機箱後移除螺絲和插槽支
充卡按正確的方向插充卡完全固定住
用螺絲將擴充卡的金屬支架固定到機箱後置面板(僅安裝顯示卡時適用此步驟)
將電腦機箱後蓋閉合
要,可 B I O S 定。
安裝擴充卡的驅動
»
請注意如果要安裝或卸下螺絲則需要使用M2螺絲起子議不要使用不符合規格的螺絲
子,否
