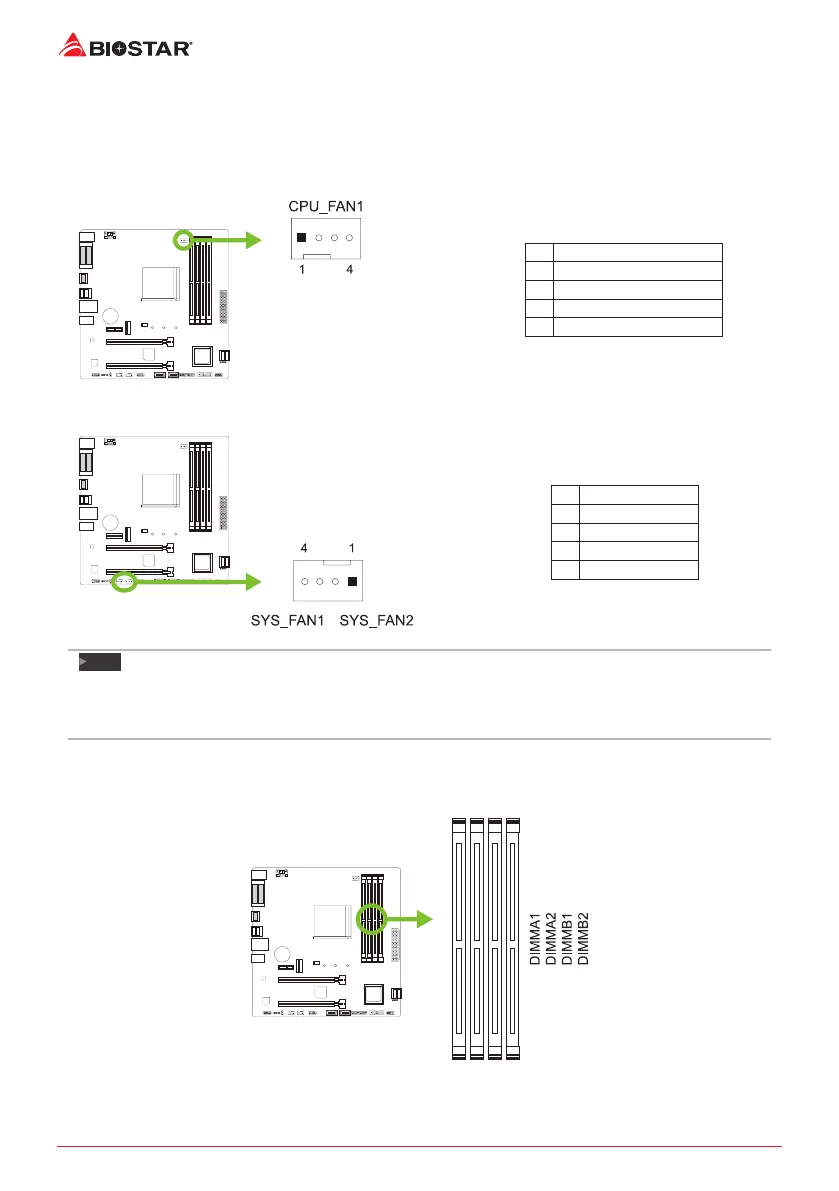

2.3 Connect Cooling Fans
These fan headers support cooling-fans built in the computer. The fan cable and connector
may be dierent according to the fan manufacturer.
CPU_FAN1: CPU Fan Header
Pin Assignment
1 Ground
2 +12V
3 Sense
4 AI FAN Control
SYS_FAN1/ SYS_FAN2: System Fan Header
Pin Assignment
1 Ground
2 +12V
3 Sense
4 AI FAN Control
Note
»
 CPU_FAN1,SYS_FAN1,SYS_FAN2support4-pinand3-pinheadconnectors.Whenconnecngwith
wiresontoconnectors,pleasenotethattheredwireistheposiveandshouldbeconnectedto
pin#2,andtheblackwireisGroundandshouldbeconnectedtopin#1(GND).
2.4 Install System Memory
DDR4 Modules
