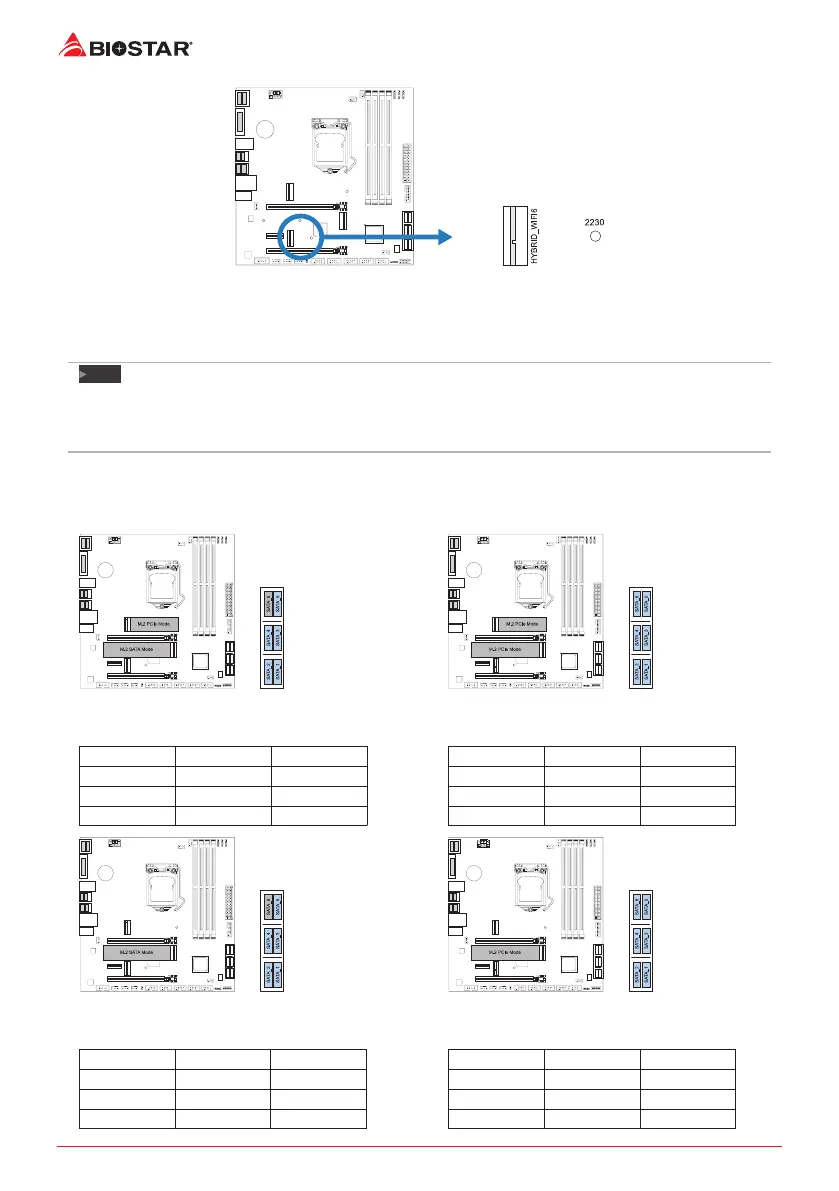

HYBRID_WIFI6: M.2 (E Key) Socket (M.2 (E key) Wi-Fi card is not provided)
• Support M.2 socket 2230 type module.
• Supports WiFi/ Bluetooth module and Intel® CNVi (Integrated WiFi/ BT).
Note

»
M.2(MKey)Socket(M2_PCIEG4_64G_11TH_ONLY)support11thGenRocketLake-SCPUonly.

»
WhenusingSATASSDmoduleonM.2slot(M2_PCIEG3_32G_SATA_RST_1),theSATA_6connector
willbedisabled.
M.2 Slot module sharing status table
When M.2 Slot is installed with PCIe or SATA SSD mode interface, the usage status of SATA
connector. (O means SATA connector enables, X means SATA connector disables.)
1x M.2 SATA SSD Slot + 1x M.2 PCIe SSD Slot
-- 5x SATA HDDs
SATA_1 SATA_3 SATA_5
O O O
SATA_2 SATA_4 SATA_6
O O X
2x M.2 PCIe SSD Slot -- 6x SATA HDDs
SATA_1 SATA_3 SATA_5
O O O
SATA_2 SATA_4 SATA_6
O O O
1x N/A + 1x M.2 SATA SSD Slot
-- 5x SATA HDDs
SATA_1 SATA_3 SATA_5
O O O
SATA_2 SATA_4 SATA_6
O O X
1x N/A + 1x M.2 PCIe SSD Slot --
6x SATA HDDs
SATA_1 SATA_3 SATA_5
O O O
SATA_2 SATA_4 SATA_6
O O O
