B560GTQ

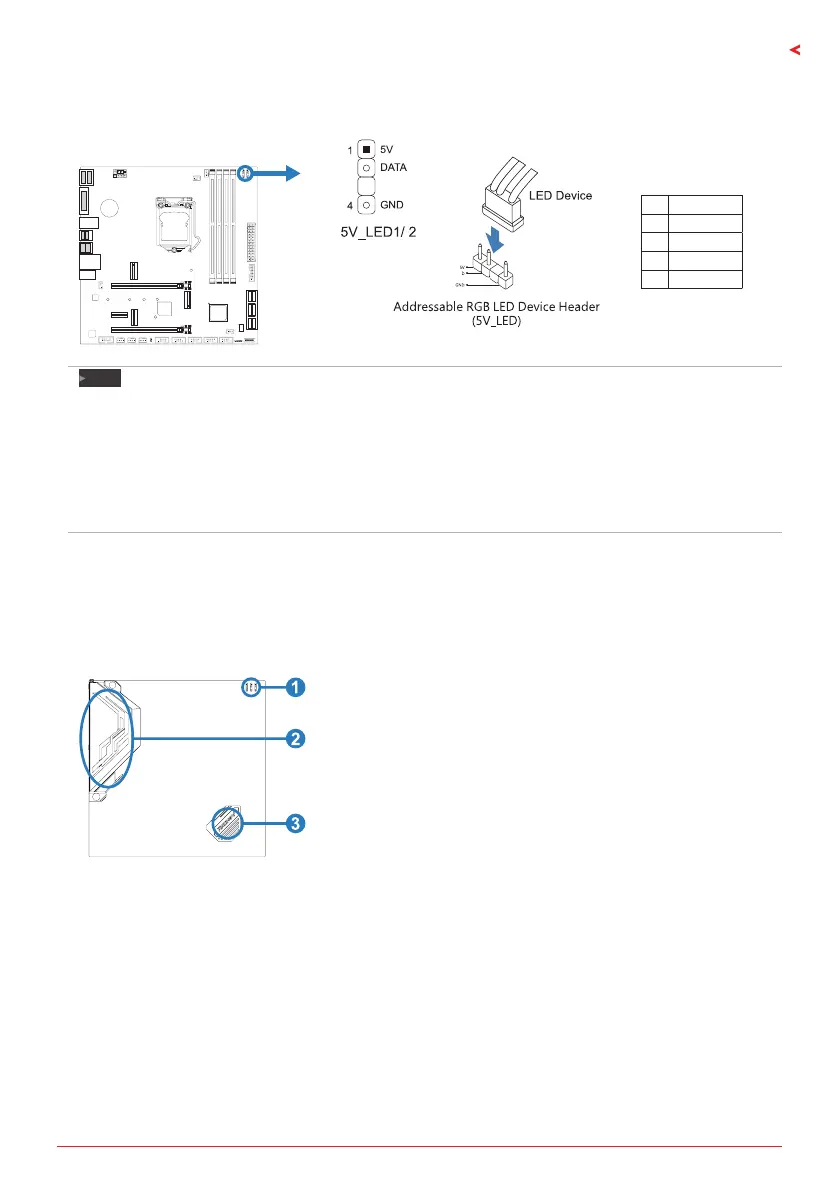

5V_LED1/ 5V_LED2: Addressable RGB LED Device (WS2818B) Header

This header providers 5V power and Data control pins for RGB LED Device (WS2818B).

Pin Assignment

1 VCC5

2 Data

3 N/A

4 GND

Note

 EnsureproperpinconnecngtoyourLEDdevice,wrongconneconmaydamageyourLEDdeviceor

motherboard.



The12V_LEDconnectorsupportsto5050RGBLEDstripswiththemaximumpowerrangof3A(12V).



The5V_LEDconnectorsupportsupto300LEDsWS2818BindividuallyAddressableRGBLEDstrips

withthemaximumpowerrangof3A(5V).



PleaseusetheVividLEDDJsowaretocontroltheLEDs.Fordetailedsowaresenginformaon,

refertochapter3.3.

2.8 LEDs

LEDs

Below LEDs are controlled by RACING GT EVO program. Please refer to Chapter 3.3 for more

detail soware seng.

1. RGB LED Header(5V/ 12V)

2. ARMOR GEAR LEDs

3. Southbridge LEDs

Biostar B560GTQ User Manual
