14 | Chapter 2: Hardware installaon

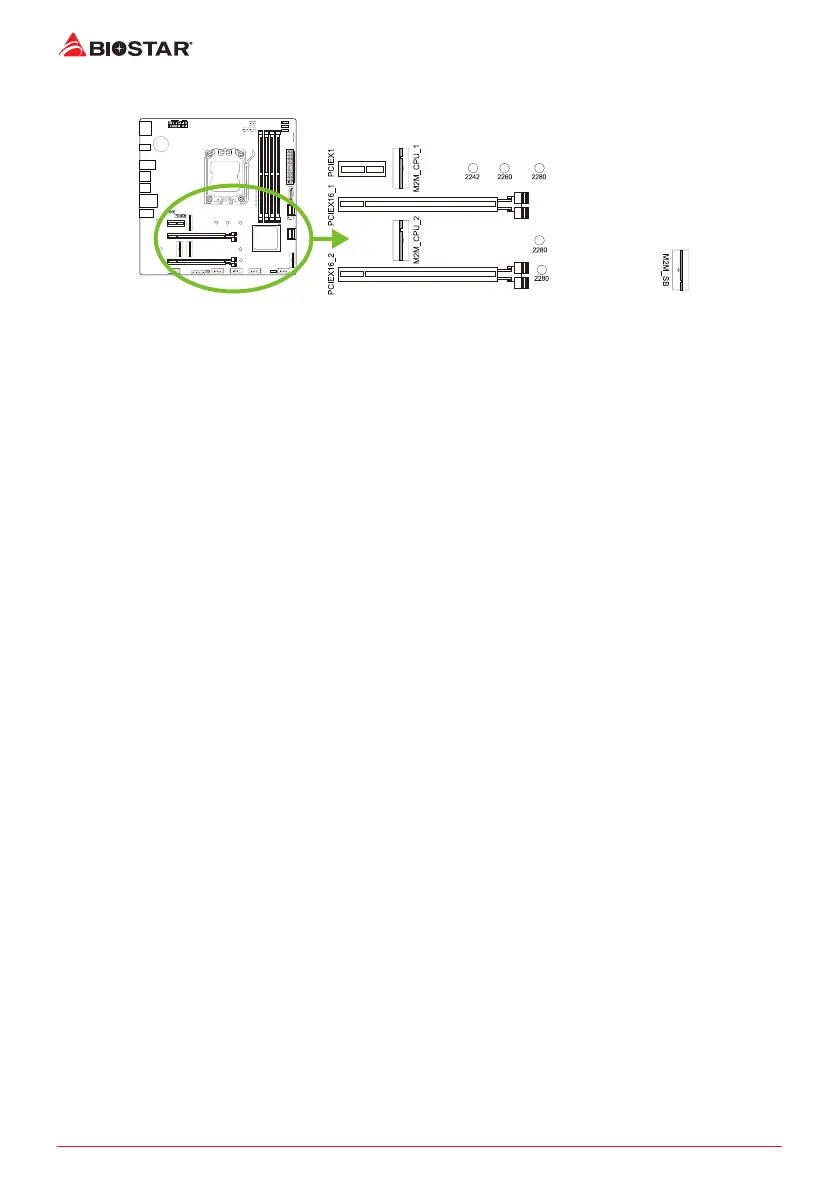

2.5 Expansion Slots
PCIEX16_1: PCI-Express Gen5 x16 Slots (x16 or x8 mode)
• PCI-Express 5.0 compliant.
• The maximum bandwidth of the PCIe slot is 128GB/s in total.
PCIEX16_2: PCI-Express Gen4 x16 Slots (x4 mode)
• PCI-Express 4.0 compliant.
• The maximum bandwidth of the PCIe slot is 64GB/s in total.
PCIEX1: PCI-Express Gen3 x1 Slots (x1 mode)
• PCI-Express 1.0 compliant.
• The maximum bandwidth of the PCIe slot is 64GB/s in total.
M2M_CPU_1: M.2 (M Key) Socket
• Supports M.2 Type 2242/ 2260/ 2280 SSD module
• Supports PCI-E 5.0x 4 (128Gb/s) - NVMe/ AHCI SSD
M2M_CPU_2: M.2 (M Key) Socket
• Supports M.2 Type 2280 SSD module
• Supports PCI-E 5.0x 4 (128Gb/s) - NVMe/ AHCI SSD
M2M_SB: M.2 (M Key) Socket
• Supports M.2 Type 2280 SSD module
• Supports PCI-E 4.0x 4 (64Gb/s) - NVMe/ AHCI SSD
