第二章：硬體安裝 | 21

B650MP-E PRO

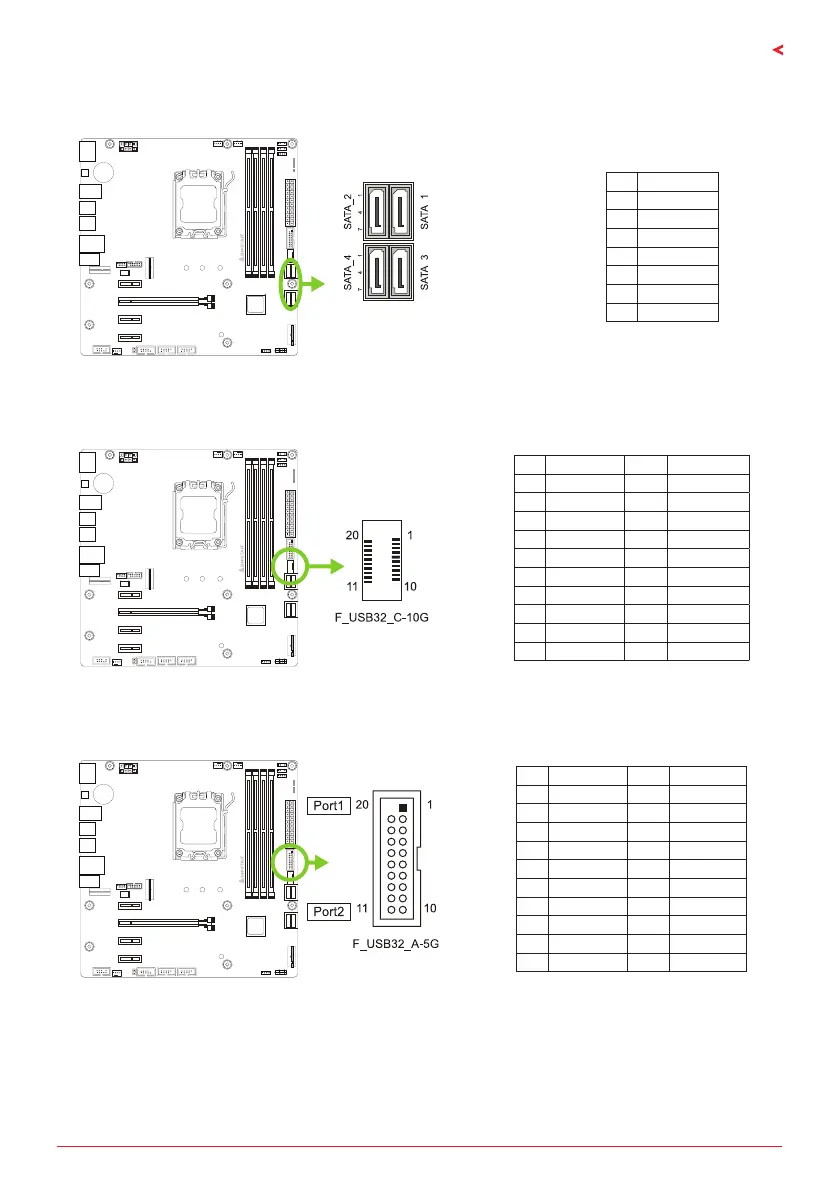

SATA_1/ SATA_2/ SATA_3/ SATA_4: Serial ATA 6.0 Gb/s接頭

此接頭通過SATA數據線連接SATA硬碟。

針定義

1 接地

2 TX+

3 TX-

4 接地

5 RX-

6 RX+

7 接地

F_USB32_C-10G: 前置面板USB 3.2(Gen2)接頭

此USB type-C接頭連接器允許用戶在PC前置面板上添加USB接頭，並且可與各種外部

外接設備取得連接。

針定義針定義

1 VBUS 11 VBUS

2 SSTX1+ 12 SSTX2+

3 SSTX1- 13 SSTX2-

4 接地 14 接地

5 SSRX1+ 15 SSRX2+

6 SSRX1- 16 SSRX2-

7 VBUS 17 接地

8 CC1 18 D-

9 SBU1 19 D+

10 SBU2 20 CC2

F_USB32_A-5G: 前置面板USB 3.2(Gen1)接頭

此接頭連接器允許用戶在PC前置面板上添加USB接頭，並且可與各種外部外接設備取得

連接。

針定義針定義

1 VBUS0 11 D2+

2 SSRX1- 12 D2-

3 SSRX1+ 13 接地

4 接地 14 SSTX2+

5 SSTX1- 15 SSTX2-

6 SSTX1+ 16 接地

7 接地 17 SSRX2+

8 D1- 18 SSRX2-

9 D1+ 19 VBUS1

10 ID 20 Key
