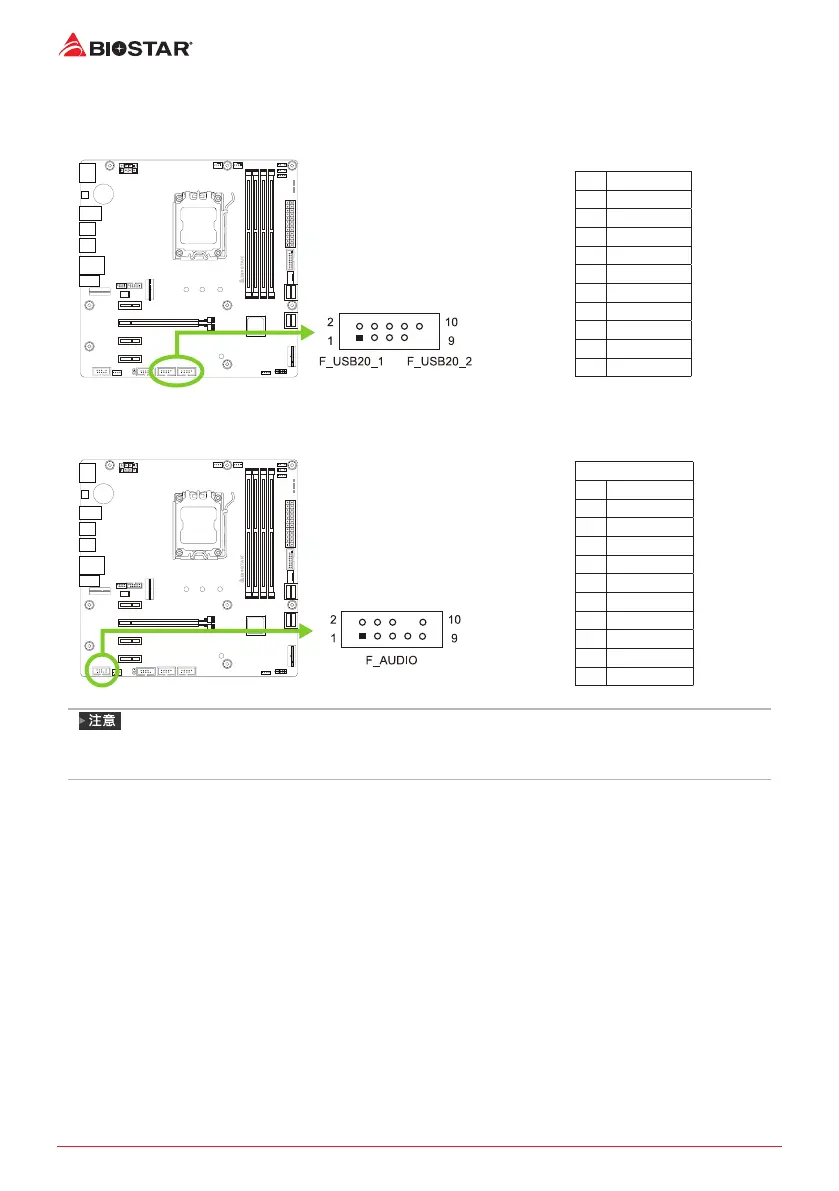

F_USB20_1/ F_USB20_2: 前置面板USB 2.0接頭
此接頭連接器允許用戶在PC前置面板上添加USB接頭，並且可與各種外部外接設備取得
連接。
針 定義
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 接地
8 接地
9 Key
10 NC
F_AUDIO: 前置面板音效接頭
此接頭可連接音效輸出數據線，支援HD(高解析)音效。
HD Audio
針 定義
1 Mic Left in
2 接地
3 Mic Right in
4 GPIO
5 Right line in
6 Jack Sense
7 Front Sense
8 Key
9 Left line in
10 Jack Sense
»
當使用前置HD音效插孔並插入耳機/麥克風時，後置聲音將自動禁用。
»
建議您連接前置高解析音效插孔，即可使用主板高解析音效功能。

Biostar B650MP-E PRO Specifications

General

Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7 7th Gen
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	6
Supported storage drive interfaces	M.2, NVMe, SATA
Parallel processing technology support	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC897
Cooling type	Passive
Component for	PC
Motherboard chipset	AMD B650
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Cables included	SATA

Weight and Dimensions

Width	244 mm
