Biostar B650MP-E PRO User Manual

第三章：UEFI BIOS和軟體 | 29
B650MP-E PRO

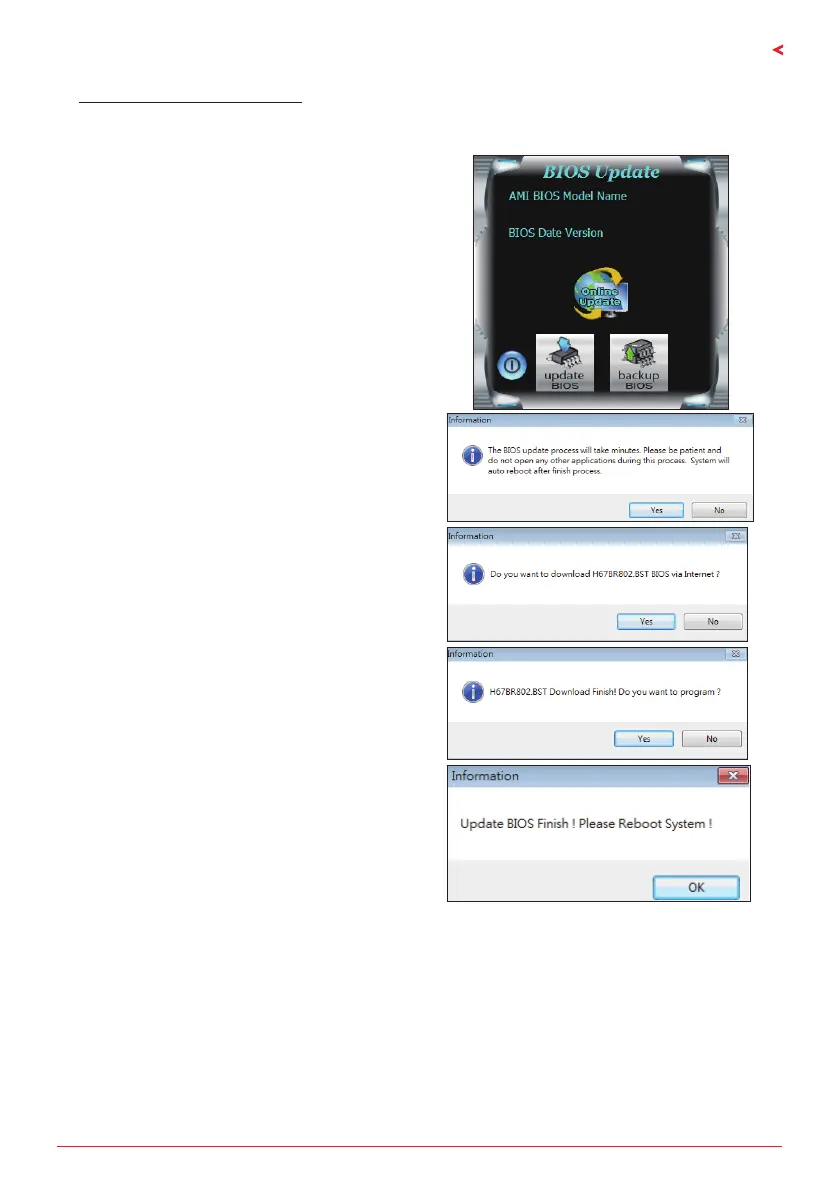

BIOS更新工具（通過網路）
1. 用DVD驅動安裝BIOS Update Utility。
2. 使用此功能時，請確保電腦已連接到網路。
3. 啟動BIOS更新工具，然後點擊“Online
Update”按鈕。
4. 螢幕跳出是否執行更新BIOS程式的對話
框，點擊”Yes”開始更新BIOS。
5. 如果BIOS有新版本，螢幕會跳出提示您下
載最新版本的對話框。點擊”Yes”下載。
6. 完成下載後，螢幕跳出提示您更新BIOS的
對話框，點擊”Yes”開始更新。
7. 更新程式结束後，螢幕跳出提示您重新開
機引導系统的對話框。點擊”OK”重啟。
8. 當系統啟動並顯示全螢幕標誌時，按<DEL>鍵進入BIOS設定。
進入BIOS設定程式後，請選擇<Save＆Exit>，使用<Restore Defaults>功能下載系統
優化預設值，然後選擇<Save Changes and Reset>以重新啟動電腦。 完成BIOS更新。

Biostar B650MP-E PRO Specifications

General

Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7 7th Gen
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	6
Supported storage drive interfaces	M.2, NVMe, SATA
Parallel processing technology support	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC897
Cooling type	Passive
Component for	PC
Motherboard chipset	AMD B650
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Cables included	SATA

Weight and Dimensions

Width	244 mm
