Chapter 2: Hardware installaon | 19
B650MP-E PRO

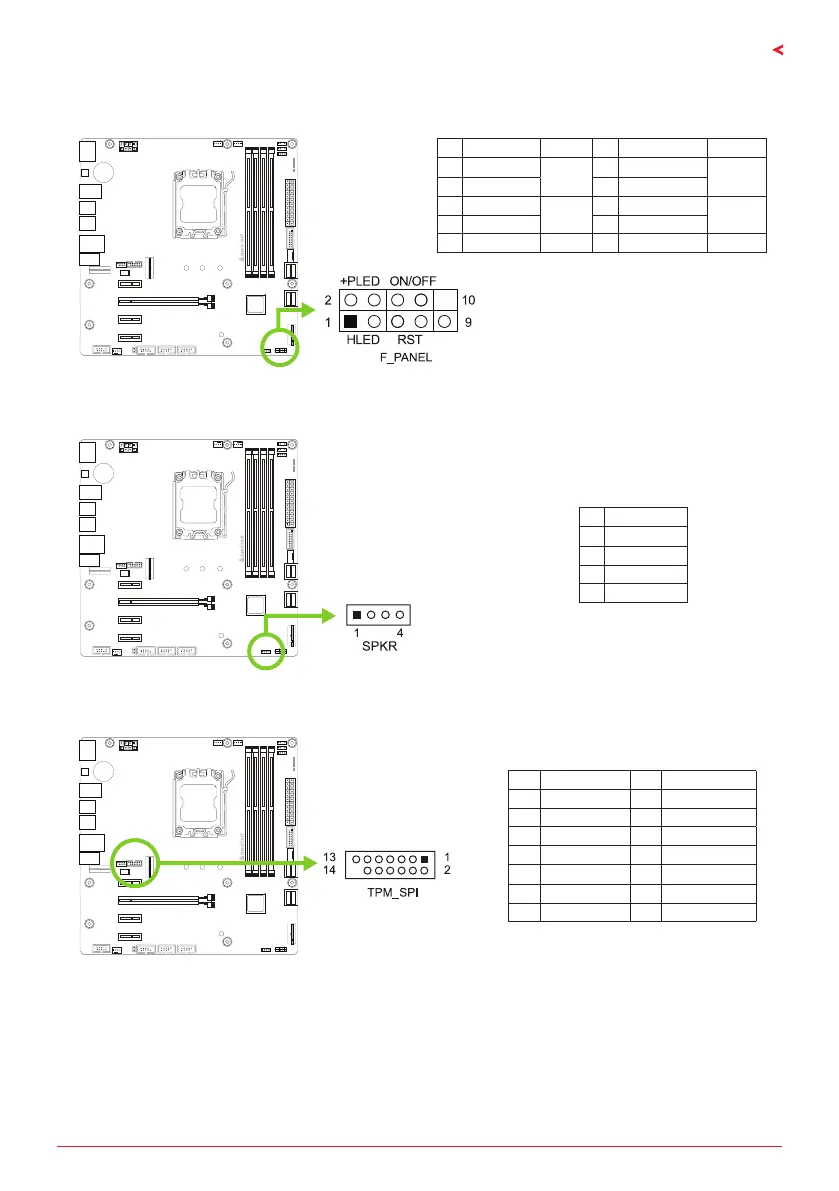

F_PANEL: Front Panel Header
This 10-pin header includes Power-on, Reset, HDD LED, Power LED connecon.
Pin Assignment Funcon Pin Assignment Funcon
1 HDD LED(+)
HDD
LED
2 Power LED (+)
Power
LED
3 HDD LED(-) 4 Power LED (-)
5 Ground
Reset
Buon
6 Power Buon
Power-On
Buon
7 Reset Control 8 Ground
9 NC NC 10 Key Key
SPKR: Chassis Speaker Header
Please connect the chassis speaker to this header.
Pin Assignment
1 +5V
2 N/A
3 N/A
4 Speaker
TPM_SPI: Trusted Plaorm Module Header
This header allows you to store cryptographic keys that protect informaon.
Pin Assignment Pin Assignment
1 +1.8V 2 SPI_PIRQ
3 TPM_RST# 4 TPM_CS
5 N/A 6 N/A
7 +1.8V 8 GND
9 N/A 10 SPI_CLK
11 SPI_MISO 12 SPI_MOSI
13 N/A 14 KEY

Biostar B650MP-E PRO Specifications

General

Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7 7th Gen
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	6
Supported storage drive interfaces	M.2, NVMe, SATA
Parallel processing technology support	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC897
Cooling type	Passive
Component for	PC
Motherboard chipset	AMD B650
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Cables included	SATA

Weight and Dimensions

Width	244 mm
