20 | Chapter 2: Hardware installaon

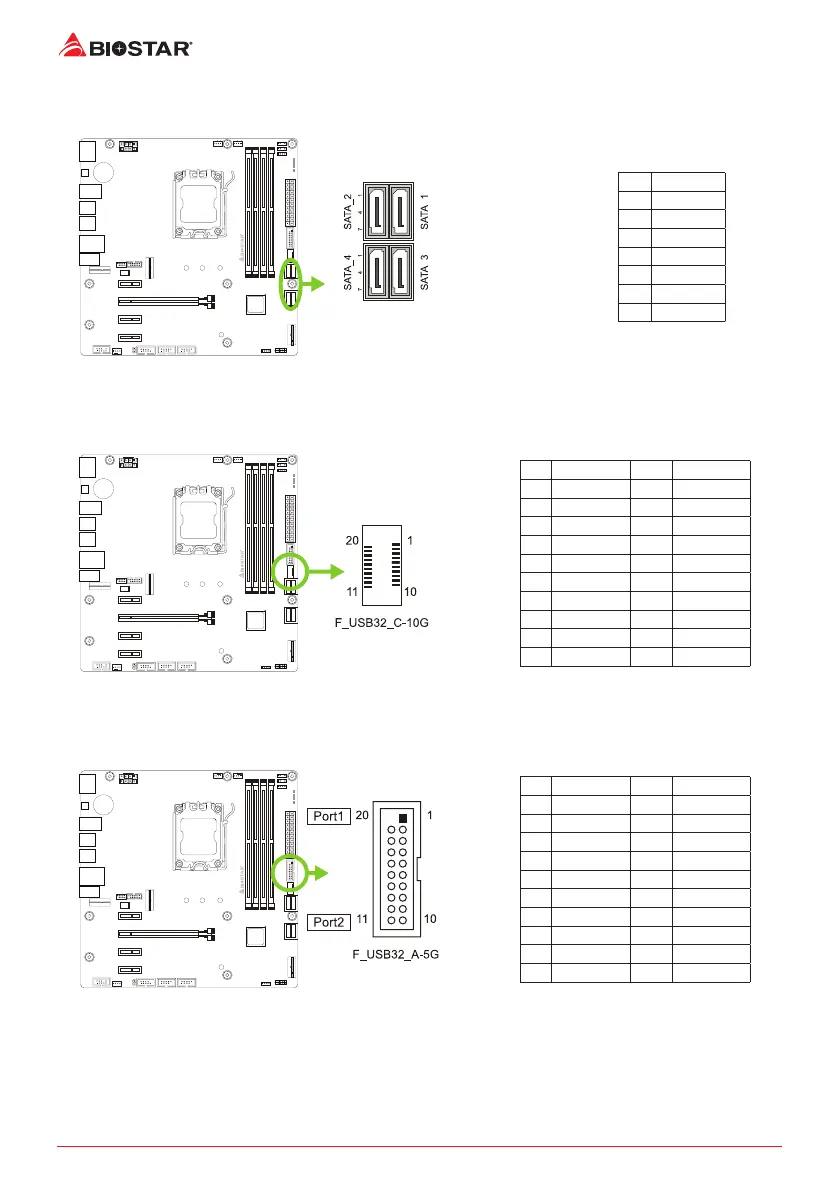

SATA_1/ SATA_2/ SATA_3/ SATA_4: Serial ATA 6.0 Gb/s Connectors

These connectors connect to SATA hard disk drives via SATA cables.

Pin Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

7 Ground

F_USB32_C-10G: Header for USB 3.2 (Gen2) Ports at Front Panel

This USB type-C header allows user to add addional USB ports on the PC front panel, and also

can be connected with a wide range of external peripherals.

Pin Assignment Pin Assignment

1 VBUS 11 VBUS

2 SSTX1+ 12 SSTX2+

3 SSTX1- 13 SSTX2-

4 Ground 14 Ground

5 SSRX1+ 15 SSRX2+

6 SSRX1- 16 SSRX2-

7 VBUS 17 Ground

8 CC1 18 D-

9 SBU1 19 D+

10 SBU2 20 CC2

F_USB32_A-5G: Header for USB 3.2 (Gen1) Ports at Front Panel

This header allows user to add addional USB ports on the PC front panel, and also can be

connected with a wide range of external peripherals.

Pin Assignment Pin Assignment

1 VBUS0 11 D2+

2 SSRX1- 12 D2-

3 SSRX1+ 13 Ground

4 Ground 14 SSTX2+

5 SSTX1- 15 SSTX2-

6 SSTX1+ 16 Ground

7 Ground 17 SSRX2+

8 D1- 18 SSRX2-

9 D1+ 19 VBUS1

10 ID 20 Key
