Biostar B650MT User Manual

第三章：UEFI BIOS和軟體 | 29
B650MT
3�4 軟體
安裝軟體
1. 將光碟放入光碟機，若Autorun功能已啓動，則會顯示驅動安裝程式。
2. 選擇Software Installation，然後點擊各軟體圖示。
3. 根據螢幕上的指令完成安裝。
啓動軟體
安裝程式完成後，桌面上將出現軟體圖示。請雙擊圖示啓動軟體工具。
»
所有軟體的相關訊息和内容若有變更，恕不另行通知。為使系統性能更佳，軟體會不斷升級。
»
下面的圖片和訊息僅供參考，此主板的實際訊息和設定可能與手册略有差異。

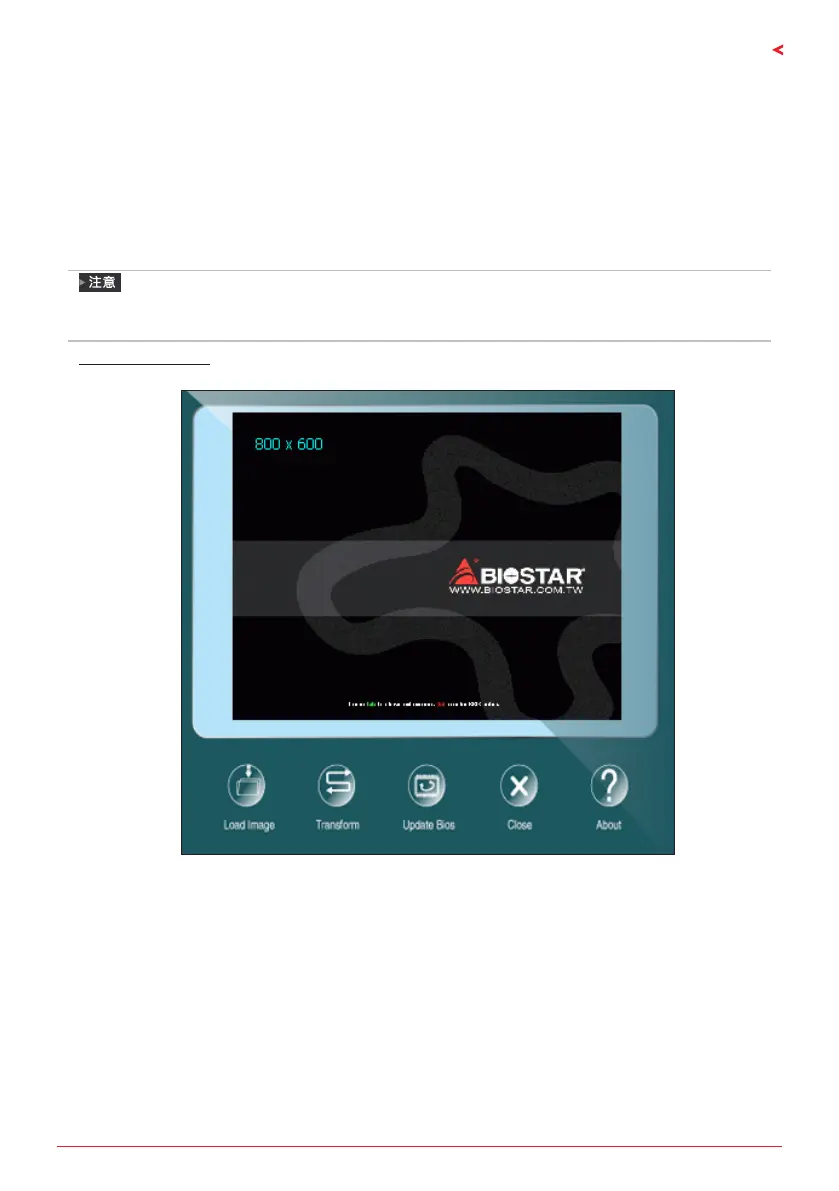

BIOScreen 工具
此實用工具可以將開機畫面個性化。您可以選擇BMP格式來自定義電腦開機畫面。
請參照以下步驟來更新開機畫面：
• 載入圖片(Load Image)：選擇圖片作為開機畫面。
• 轉換(Transform)：轉換圖片並預覽。
• 更新BIOS(Update Bios)：將圖片寫入BIOS記憶體，然後完成更新。

Biostar B650MT Specifications

General

Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen™ 7
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Maximum internal memory	96 GB
Supported memory clock speeds	4800, 5200, 5400, 5600, 6000 MHz
Supported memory module capacities	8GB, 16GB, 32GB, 48GB
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	-
Number of SATA III connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
HDMI version	1.4
DisplayPort version	1.2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC897
Component for	PC
Product color	Black, Silver
Motherboard chipset	AMD B650
PC health monitoring	CPU, FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Cables included	SATA
Bundled software	BullGuard

Weight and Dimensions

Depth	235 mm
Width	221 mm
