Biostar B650MT User Manual

20 | Chapter 2: Hardware installaon

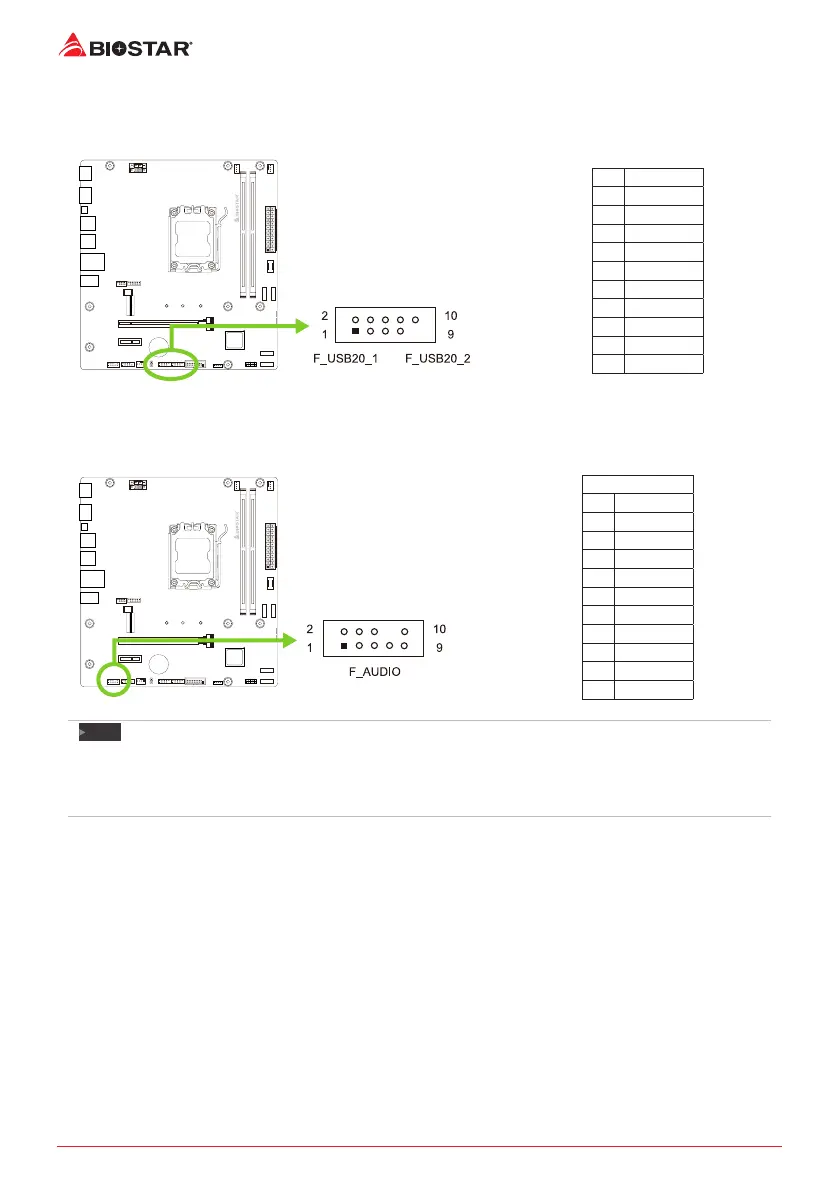

F_USB20_1/ F_USB20_2: Header for USB 2.0 Ports at Front Panel
This header allows user to add addional USB ports on the PC front panel, and also can be
connected with a wide range of external peripherals.
Pin Assignment
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 Key
10 NC
F_AUDIO: Front Panel Audio Header
This header allows user to connect the chassis-mount front panel audio I/O which supports
HD.
HD Audio
Pin Assignment
1 Mic Le in
2 Ground
3 Mic Right in
4 GPIO
5 Right line in
6 Jack Sense
7 Front Sense
8 Key
9 Le line in
10 Jack Sense
Note
»
»
When using the front HD audio jack and plug in the headset, the rear sound will be automacally
Disabled.
»
»
It is recommended that you connect a high-denion front panel audio module to this connector to
avail of the motherboard’s high denion audio capability.

Biostar B650MT Specifications

General

Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen™ 7
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR5-SDRAM
Maximum internal memory	96 GB
Supported memory clock speeds	4800, 5200, 5400, 5600, 6000 MHz
Supported memory module capacities	8GB, 16GB, 32GB, 48GB
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, PCI Express 4.0, SATA III
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	-
Number of SATA III connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
HDMI version	1.4
DisplayPort version	1.2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC897
Component for	PC
Product color	Black, Silver
Motherboard chipset	AMD B650
PC health monitoring	CPU, FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Cables included	SATA
Bundled software	BullGuard

Weight and Dimensions

Depth	235 mm
Width	221 mm
